Stainless Steel Lock Nuts Technicalities

Size in Ready Stock:	M3 To M48
Length :	3 mm to 200 mm
International Standard :	ASME B18 2.1, DIN 982, DIN 934, ISO 4035
American Standard :	ASTM A193, ASME SA193
Raw Material Origin :	Korean, Indian, UK, Janpanese, European, German
Approvals :	MA’ADEN, KNPC, BAPCO, ADNOC, Q CHEM, EIL, SABIC, KOC, Saudi Aramco, KPI
Head Drive :	Phillips, Phillips/Slot, Six-Lobe
MTC :	EN 10204/3.1B
Threads :	BSW, UNF, UNC, BSF, METRIC
Tolerances :	+/-0.01 to +/-0.05mm
Finish :	Polished / Anti-Corrosion
Uses :	Industrial
Test Certificate :	Fumigation Certificates Raw Material Test Certificate Mill Test Certificate
Temperature Range :	2000°F
Delivery Time :	Indonesia : 14-18 Days Vietnam : 15-19 Days Singapore : 10-12 Days
RFQ:	support@pipingmaterial.ae

Why buy piping materials from Pipingmaterial.ae?

Pipingmaterial.ae is the region’s most trusted B2B platform, built on the foundation of Explore Middle East FZE’s 26 years of hands-on experience in global piping and industrial metals trade.

MENA Coverage
Trusted Platform
Test Certificate Guide
Buyer Seller Connect
Material Selection Guide
Hot Rolled Steel Info

Table of Content

Stainless Steel Lock Nuts Specifications
Stainless Steel Self Locking Nut Weight Chart
Types of Stainless Steel Lock Nuts
Stainless Steel Lock Nut Dimensions
Applications of Stainless Steel Locking Wing Nuts
Stainless Steel Conduit Locknuts HSN Code
Stainless Steel Conduit Locknuts Size Chart
Stainless Steel Lock Nuts Chemical Composition
Stainless Steel Lock Nuts Mechanical Properties
Stainless Steel Conduit Lock Nut Equivalent Grades

316 SS locking wing nuts suppliers in UAE

Stainless Steel Lock Nuts Specifications

Size Range: M2 to M76 or Custom Sizes

Nut Length : 3 MM To 200 MM

Application: Oil & Gas Industries, Construction and Automotive Industry

Manufacturing Method: Hot Forging, CNC Machine, Cold Forging

Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe

Machines: CNC Lath, Thread Rolling, Making Machines

Characteristics : Ideal for High Temperatures

Finish: Bright Zinc Plated, Zinc and Hot Dip Galvanised

Threads Types : UNF, BSF, BSW, UNC, BA

Testing : Hardness Test, Charpy Impact Test, Tensile Test

Get Quote Directly from Stainless Steel Lock Nuts Suppliers in UAE

100% Tested SS Flange Lock Nuts with MTC EN 10204 3.1/3.2

Get an accurate and reasonable price from verified suppliers of SS lock nut and stainless steel self locking nut, 304 flange lock nuts price per kg in the Dubai

Stainless Steel Self Locking Nut Weight Chart

Size	Square	Heavy Hex	Finished Hex	Heavy Square	Heavy Hex Jam	Finished Jam
4″		2180.000			1200.000
3-1/4″		1194.000			651.000
3-1/2″		1526.000			851.000
3″		950.000			545.000
2-1/4″		419.000			227.000
2-1/2″		564.000			332.000
2″		299.000	224.000		165.000	140.000
1-3/8″	94.500	102.000	73.000	125.000	59.300	47.900
1-1/8″	52.500	59.200	40.300	72.400	32.400	24.700
1-1/4″	70.600	78.600	54.300	95.500	45.800	36.100
1-1/2″	122.000	131.000	94.300	161.000	74.800	60.900
1-7/8″		241.000			134.000
1-5/8″		162.000			91.600
1-3/4″		204.000	151.000		114.000	100.000
1″	36.300	42.500	28.300	51.500	23.500	17.600
7/8″	24.500	29.700	19.000	36.200	16.700	12.000
5/8″	10.800	11.900	7.330	14.300	6.960	4.930
3/4″	15.400	19.300	11.900	23.500	11.000	7.700

Request pricing directly from SS conduit lock nut manufacturers for the lowest price and assured high quality of stainless steel wheel lock nuts in the Middle East

Types of Stainless Steel Lock Nuts

View Stainless Steel Lock Nuts Suppliers in UAE, Offers Many Types of Nuts That Are Commonly Used

Stainless Steel Wheel Lock Nuts

Stainless Steel Top Lock Nut

Stainless Steel Push-on Lock Nut

Stainless Steel Sealing Lock Nut

Stainless Bearing Lock Nut

Stainless Steel Conduit Lock Nut

Sales Representative available to Provide Quick Quote

Asia	Brunei, Cambodia, Indonesia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam
Europe	Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Italy, Netherlands
Middle East	Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jebel Ali, Jeddah, Jordan, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen, Lebanon

Check stainless steel stover/ electrical/ thin lock nuts and DIN 439 lock nut dimensions, specification, hsn code and application

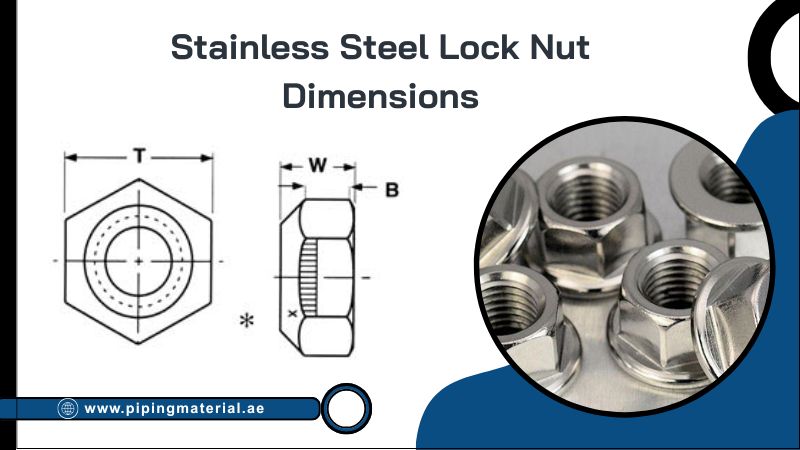

Stainless Steel Lock Nut Dimensions

Nominal Size in (Inches)	W		T			B
	Overall Thickness		Width Across Flats			Hex Height
	Min	Max	Nom	Min	Max	Min
1	0.831	0.887	1 1/2	1.450	1.5020	0.513
9/16	0.473	0.496	7/8	0.861	0.8770	0.286
7/16	0.365	0.385	11/16	0.675	0.6895	0.223
7/8	0.724	0.776	1 5/16	1.269	1.3145	0.450
5/16	0.258	0.273	1/2	0.489	0.5020	0.166
5/8	0.535	0.559	15/16	0.922	0.9395	0.329
3/8	0.320	0.337	9/16	0.551	0.5645	0.198
3/4	0.617	0.665	1 1/8	1.088	1.1270	0.382
1/4	0.212	0.226	7/16	0.428	0.4385	0.145
1/2	0.427	0.448	3/4	0.736	0.7520	0.262

Applications of Stainless Steel Locking Wing Nuts

Find Stainless Steel Lock Nuts Suppliers and Stockist in Abu Dhabi or Sharjah Offer Superior Industrial Applications

Sales Representative of Stainless Steel Lock Nuts Manufacturers in UAE Available to Provide Quick Quote

Africa	Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa
GCC Countries	Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United Arab Emirates (UAE)
MENA	Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia

Stainless Steel Conduit Locknuts HSN Code

Grades	HSN Code
Stainless Lock Nuts	73181600

PED approved stainless steel cone/ top/ sealing lock nuts supplier in United Arab Emirates, check 316 SS lock nuts dimension & size chart

Stainless Steel Conduit Locknuts Size Chart

View Stainless Steel Lock Nuts Distributor in Fujairah, Ras Al Khaimah or Umm Al Quwain, Provides a Accurate Sizes

Size	Thread Pitch
M64	6
M60	5.5
M56	5.5
M52	5
M48	5
M45	4.5
M42	4.5
M39	4
M36	4
M33	3.5
M30	3.5
M27	3
M24	3
M22	2.5
M20	2.5
M18	2.5
M16	2
M12	1.75
M10	1.5
M8	1.25
M6	1
M5	0.8
M4	0.7
M3	0.5
M2.5	0.45
M2	0.4
M1.6	0.35

Stainless Steel Lock Nuts Chemical Composition

View Stainless Steel Lock Nuts Suppliers and Stockist in Dubai or Ajman, Provides a Accurate Chemical Composition for Nuts

Grades	P	Si	Cr	Mo	Ni	C	Mn	S	N
304	0.045	0.75 max	18.0-20.0	–	8.0-10.5	0.08 max	2.0 max	0.030	0.10
304L	0.045	0.75 max	18.0-20.0	–	8.0-12.0	0.030 max	2.0 max	0.030	0.10
304H	0.045	0.75 max	18.0-20.0	–	8.0-10.5	0.04-0.10	2.0 max	0.030	–
310	0.020 max	0.15 max	24.00-26.00	0.10	19.00-21.00	0.015 max	2 max	0.015 max	54.7 min
310S	0.045 max	1.0 max	24.00-26.00	0.75	19.00-21.00	0.08 max	2 max	0.030 max	53.095 min
316	0.045 max	1.0 max	16.00-18.00	2.00-3.00	11.00-14.00	0.08 max	2.0 max	0.030 max	67.845 min
316L	0.045 max	1.0 max	16.00-18.00	2.00-3.00	10.00-14.00	0.035 max	2.0 max	0.030 max	68.89 min
316H	0.045 max	0.75 max	16.00-18.00	2.00-3.00	10.00-14.00	0.10 max	0.10 max	0.030 max	–
SS 317	0.045 max	1.0 max	18.00-20.00	3.00-4.00	11.00-15.00	0.08 max	2.0 max	0.030 max	57.845
SS 317L	0.045 max	1.0 max	18.00-20.00	3.00-4.00	11.00-15.00	0.035 max	2.0 max	0.030 max	57.89 min
SS 321	0.045 max	1.0 max	17.00-19.00	–	5(C+N) -0.70 max	0.08 max	2.0 max	0.030 max	9.00-12.00
SS 321H	0.045 max	1.0 max	17.00-19.00	–	9.00-12.00	0.04-0.10	2.0 max	0.030 max	0.10 max
SS 347	0.045 max	1.0 max	17.00-20.00	–	9.00-13.00	0.08 max	2.0 max	0.030 max	–
SS 347H	0.045 max	1.0 max	17.00-19.00	–	9.0-13.0	0.04-0.10	2.0 max	0.030 max	–
SS 409	0.045 max	1.00 max	10.5-11.75	–	0.5	0.08 max	1.00 max	0.030 max	–
SS 410S	0.040 max	1.00 max	10.5-12.5	–	–	0.080 max	1.00 max	0.030 max	–
SS 904L	0.040 max	1.00 max	19.00-23.00	4.00-5.00 max	23.00-28.00	0.020 max	2.00 max	0.030 max	–

Stainless Steel Lock Nuts Mechanical Properties

Find Stainless Steel Lock Nuts Suppliers in UAE, Provides Best Quality Nuts With Superior Mechanical Qualities

Grade	Tensile Strength	Melting Point	Yield Strength (0.2%Offset)	Elongation	Density
304/304H/304L	Psi-75000, MPa-515	1400 °C (2550 °F)	Psi-30000, MPa – 205	35 %	8.0 g/cm3
310/310S	Psi-75000, MPa – 515	1402 °C (2555 °F)	Psi-30000, MPa – 205	40 %	7.9 g/cm3
316/316L/316H	Psi-75000, MPa – 515	1400 °C (2550 °F)	Psi-30000, MPa – 205	35 %	8.0 g/cm3
317/ 317L	Psi-75000, MPa – 515	1400 °C (2550 °F)	Psi-30000, MPa – 205	35 %	7.9 g/cm3
321/ 321H	Psi-75000, MPa – 515	1457 °C (2650 °F)	Psi-30000, MPa – 205	40 %	8.0 g/cm3
347/ 347H	Psi-75000, MPa – 515	1454 °C (2650 °F)	Psi-30000, MPa – 205	35 %	8.0 g/cm3
410S	Psi-75000, MPa-515	1532°C (2790°F)	Psi-30000, MPa – 205	25 %	7.80 g/cm3
904L	Psi-71000, MPa – 490	1350 °C (2460 °F)	Psi-32000, MPa – 220	35 %	7.95 g/cm3

Stainless Steel Conduit Lock Nut Equivalent Grades

Check Stainless Steel Lock Nuts Suppliers in UAE, Offer Superior Equivalent Materials

STANDARD	WERKSTOFF	JIS	EN	BS	UNS	AFNOR	GOST
SS 304	1.4301	SUS 304	X5CrNi18-10	304S31	S30400	Z7CN18-09	08X18H10
SS 304L	1.4306/1.4307	SUS304L	X2CrNi18-9/X2CrNi19-11	3304S11	S30403	Z3CN18-10	03X18H11
SS 304H	1.4301	–	–	–	S30409	–	–
SS 310	1.4841	SUS 310	X15CrNi25-20	310S24	S31000	–	20Ch25N20S2
SS 310S	1.4845	SUS310S	X8CrNi25-21	310S16	S31008	–	20Ch23N18
SS 316	1.4401/1.4436	SUS 316	X5CrNiMo17-12-2/X3CrNiMo17-13-3	316S31/316S33	S31600	Z7CND17-11-02
SS 316L	1.4404/1.4435	SUS 316L	X2CrNiMo17-12-2/X2CrNiMo18-14-3	316S11/316S13	S31603	Z3CND17-11-02 /Z3CND18-14-03	03Ch17N14M3/03Ch17N14M2
SS 316H	–	–	–	316S51	S31609	–	–
SS 317	1.4449	SUS 317	X5CrNiMo1713	–	S31700	–	–
SS 317L	1.4438	SUS317L	X2CrNiMo18-15-4	–	S31703	–	–
SS 321	1.4541	SUS 321	X6CrNiTi18-10	–	S32100	–	–
SS 321H	1.4878	SUS321H	X12CrNiTi18-9	–	S32109	–	–
SS 347	1.4550	SUS 347	X6CrNiNb18-10	–	S34700	–	–
SS 347H	1.4961	SUS 347H	X6CrNiNb18-12	–	S34709	–	–
SS 409	1.4512	SUS409	X2CrTi12	–	S40900	–	–
SS 410S	1.4516	SUS410S	X6CrNiTi12	–	S41008	–	–
SS 904L	1.4539	SUS	X1NiCrMoCu25-20-5	904S13	N08904	Z2 NCDU 25-20	STS 317J5L
