Stainless Steel Nylock Nuts

Home > Stainless Steel Nylock Nuts

Product Overview for Stainless Steel Nylock Nuts

Size in Ready Stock:	M3 To M48
Length :	3 mm to 200 mm
International Standard :	ASME B18 2.1, DIN 931, DIN 933, DIN 934, DIN 912, ISO 4032, ISO 4033
Head Drive :	Phillips, Phillips/Slot, Six-Lobe
American Standard :	ASTM A193, ASME SA193
Raw Material Origin :	Korean, Indian, UK, Janpanese, European, German
MTC :	EN 10204/3.1B
Threads :	BSW, UNF, UNC, BSF, METRIC
Finish :	Hot-dip Galvanized
Resistance To :	Self-loosening
Gripping Capabilities At :	40°C to 120°C
Approvals :	SABIC, KOC, ADNOC, Q CHEM, BAPCO, Saudi Aramco, KPI, EIL, MA’ADEN, KNPC
Uses :	Light Poles, Furniture
Test :	Hardness Testing (HRC / HRB)
Operating Temperature Max :	870°C (1600°F)
Installation :	Ease Installation
Tolerance :	±0.03MM, ODM
Test Certificate :	Fumigation Certificates Mill Test Certificate Raw Material Test Certificate
Locking Ability Temp :	121°℃(250°F)
Delivery Time :	Indonesia : 7-8 Days Poland : 25-30 Days
RFQ:	support@pipingmaterial.ae

What makes pipingmaterial.ae the preferred choice for B2B procurement?

No other B2B platform in the Middle East can match the depth of knowledge that Pipingmaterial.ae offers, backed by Explore Middle East FZE’s 26 years of experience in piping and steel procurement.

Direct Delivery
Trusted Platform
Years Experience
Direct Quotes
Raw Material Origin

Table of Content

Stainless Steel Nylock Nuts Specifications
Metric Nyloc Nut Torque Chart
Stainless Steel Nylock Wing Nuts Size Chart
Types of Stainless Steel Nylock Nuts
Stainless Steel Nylock Hex Nut Dimensions
Stainless Steel Thin Nylock Nuts Weight Chart
Applications of Stainless Steel Nylon Insert Lock Nuts
Stainless Steel Nylock Nuts Chemical Composition
Stainless Steel Nylock Nuts Mechanical Properties
Stainless Steel Nyloc Half Nut Equivalent Grades

304 SS wing nyloc nut and SS nylock nut suppliers in UAE

Stainless Steel Nylock Nuts Specifications

Size Range: M2 to M76 or Custom Sizes

Nut Length : 3 MM To 200 MM

Application: Aerospace and Aviation, Construction and Automotive Industry

Manufacturing Method: CNC Machine, Hot Forging, Cold Forging

Head Drive: Slotted, Phillips, Phillips/Slot, Six-Lobe, etc

Machines: Thread Rolling, CNC Lath,Making Machines

Characteristics : Higher Creep Resistance

Finish: Zinc, Bright Zinc Plated and Hot Dip Galvanised

Threads Types : BSF, BSW, UNF, UNC, BA

Testing : Charpy Impact Test, Hardness Test, Tensile Test

Get Quote Directly from Stainless Steel Nylock Nuts Suppliers in UAE

100% Tested 304 SS Nylock Nut with MTC EN 10204 3.1/3.2

Buy M8 SS nyloc nut and stainless nylock wing nut nut at affordable prices from verified suppliers in the Middle East, dimensional specifications as per DIN 982, DIN 934

Metric Nyloc Nut Torque Chart

Sizes in (Metric)	Nyloc Nuts Torque in (Nm)	Dome Nuts Torque in (Nm)
M4	3.1	2.2
M5	5.7	4.1
M6	8.9	6.4
M8	19.2	13.8
M10	37.6	27
M12	66.4	47.6
M14	98	70.2
M16	157	112.8
M18	204	146.4
M20	255	183

Call Now for the Stainless Steel Nylock Nuts Stockist in UAE Clients List Based in Below Locations

Asia	Vietnam, Singapore, Taiwan, Malaysia, Mongolia, Brunei, Indonesia, Cambodia, Philippines, Laos, Thailand, Myanmar
Europe	France, Italy, Georgia, Germany, Armenia, Netherlands, Andorra, Belgium, Azerbaijan
Middle East	Abu Dhabi, Dammam, Jordan, Beirut, Doha, Muscat, SCZone, Riyadh, Al Khobar, Sharjah, Iraq, Syria, Turkey, Jeddah, Yemen, Al Jubail, Jebel Ali, Saudi Arabia, Dubai, Lusail, Sohar, Lebanon, Amman, Ajman, Umm Al Quwain, Ras Al Khaimah, Fujairah, Manama

Contact directly an stainless steel nylon insert lock nuts manufacturers for custom sizes and factory price in Dubai

Stainless Steel Nylock Wing Nuts Size Chart

Thread Diameter	Max Heigth in (Millimeter)
M30	30.0
M27	27.0
M24	24.0
M22	22.0
M20	20.0
M18	18.0
M16	16.0
M14	14.0
M12	12.0
M10	10.0
M8	8.0
M7	7.5
M6	6.0
M5	5.0
M4	4.0
M3.5	5.0
M3	3.6
M2.5	3.4
M2	3.0
M1.6	1.65
M1.4	1.5
M1.2	1.5

Types of Stainless Steel Nylock Nuts

Check Stainless Steel Nylock Nuts Suppliers in UAE, Offers a Large Range of Commonly Used Nuts Types

Stainless Steel Nylock Wing Nuts

SS Nylock Hex Nut

Stainless Steel Nyloc Half Nut

SS Nyloc Dome Nut

SS Nylock Rivet Nut

Stainless Steel Thin Nylock Nuts

See Where You Can Find Stainless Steel Nylock Nuts Manufacturers in UAE Material Ex Stock

Africa	Nigeria, South Africa, West Africa, Kenya, Nairobi, Congo, Chad, Togo, Benin, Johannesburg, Gabon, Rwanda, Ivory Coast, Republic of the Congo, Ghana, Niger, Cameroon, Equatorial Guinea , Sudan, Ogun, Durban, Addis Ababa, Lagos, Cape Town, Abuja
GCC Countries	Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United Arab Emirates (UAE)
MENA	Egypt, Morocco, Algeria, Tunisia, Libya, Cairo, Casablanca

Check online 304 stainless steel nyloc nuts and SS nyloc nut standards, dimensions and weight chart

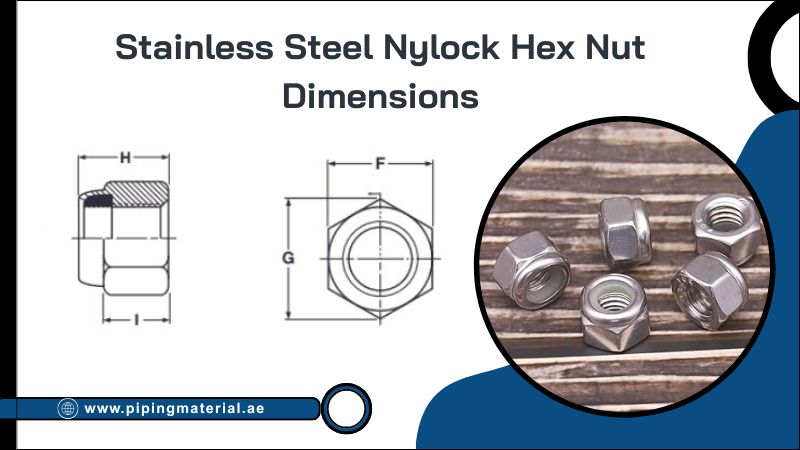

Stainless Steel Nylock Hex Nut Dimensions

View Stainless Steel Nylock Nuts Suppliers in UAE, Gives Excellent Dimensions Chart for Nuts

Stainless Steel Thin Nylock Nuts Weight Chart

Size	Weight
M4	1.0
M6	2.4
M7	3.0
M10	10.6
M12	17.2
M14	26
M16	34
M18	45
M20	65
M22	75
M24	100
M27	162
M30	212
M33	317
M36	415

Call Now for the Clients List Based in Below Locations

Country	Cities
Netherlands	Eindhoven, Haarlem, Rotterdam, Amsterdam, The Hague
Belgium	Brussels, Seraing, Meeuwen-Gruitrode, Westerlo, Leuven, Ghent, Antwerp

Check the online price of SS flange nyloc nut as per DIN 985 in Middle East and South Korea

Applications of Stainless Steel Nylon Insert Lock Nuts

Find Stainless Steel Nylock Nuts Suppliers in UAE, Provides a Various Applications for Nuts

Stainless Steel Nylock Nuts Chemical Composition

Find Stainless Steel Nylock Nuts Suppliers and Stockist in Abu Dhabi or Umm Al Quwain, Offer Superior Chemical Composition

Grades	Si	Mo	C	S	N	Cr	Ni	P	Mn
304	0.75 max	–	0.08 max	0.030	0.10	18.0-20.0	8.0-10.5	0.045	2.0 max
304L	0.75 max	–	0.030 max	0.030	0.10	18.0-20.0	8.0-12.0	0.045	2.0 max
304H	0.75 max	–	0.04-0.10	0.030	–	18.0-20.0	8.0-10.5	0.045	2.0 max
310	0.15 max	0.10	0.015 max	0.015 max	54.7 min	24.00-26.00	19.00-21.00	0.020 max	2 max
310S	1.0 max	0.75	0.08 max	0.030 max	53.095 min	24.00-26.00	19.00-21.00	0.045 max	2 max
316	1.0 max	2.00-3.00	0.08 max	0.030 max	67.845 min	16.00-18.00	11.00-14.00	0.045 max	2.0 max
316L	1.0 max	2.00-3.00	0.035 max	0.030 max	68.89 min	16.00-18.00	10.00-14.00	0.045 max	2.0 max
316H	0.75 max	2.00-3.00	0.10 max	0.030 max	–	16.00-18.00	10.00-14.00	0.045 max	0.10 max
SS 317	1.0 max	3.00-4.00	0.08 max	0.030 max	57.845	18.00-20.00	11.00-15.00	0.045 max	2.0 max
SS 317L	1.0 max	3.00-4.00	0.035 max	0.030 max	57.89 min	18.00-20.00	11.00-15.00	0.045 max	2.0 max
SS 321	1.0 max	–	0.08 max	0.030 max	9.00-12.00	17.00-19.00	5(C+N) -0.70 max	0.045 max	2.0 max
SS 321H	1.0 max	–	0.04-0.10	0.030 max	0.10 max	17.00-19.00	9.00-12.00	0.045 max	2.0 max
SS 347	1.0 max	–	0.08 max	0.030 max	–	17.00-20.00	9.00-13.00	0.045 max	2.0 max
SS 347H	1.0 max	–	0.04-0.10	0.030 max	–	17.00-19.00	9.0-13.0	0.045 max	2.0 max
SS 409	1.00 max	–	0.08 max	0.030 max	–	10.5-11.75	0.5	0.045 max	1.00 max
SS 410S	1.00 max	–	0.080 max	0.030 max	–	10.5-12.5	–	0.040 max	1.00 max
SS 904L	1.00 max	4.00-5.00 max	0.020 max	0.030 max	–	19.00-23.00	23.00-28.00	0.040 max	2.00 max

Stainless Steel Nylock Nuts Mechanical Properties

Check Stainless Steel Nylock Nuts Distributer in Ras Al Khaimah or Fujairah, Provides Outstanding Mechanical Properties

Grade	Elongation	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Density
304/304H/304L	35 %	1400 °C (2550 °F)	Psi-30000, MPa – 205	Psi-75000, MPa-515	8.0 g/cm3
310/310S	40 %	1402 °C (2555 °F)	Psi-30000, MPa – 205	Psi-75000, MPa – 515	7.9 g/cm3
316/316L/316H	35 %	1400 °C (2550 °F)	Psi-30000, MPa – 205	Psi-75000, MPa – 515	8.0 g/cm3
317/ 317L	35 %	1400 °C (2550 °F)	Psi-30000, MPa – 205	Psi-75000, MPa – 515	7.9 g/cm3
321/ 321H	40 %	1457 °C (2650 °F)	Psi-30000, MPa – 205	Psi-75000, MPa – 515	8.0 g/cm3
347/ 347H	35 %	1454 °C (2650 °F)	Psi-30000, MPa – 205	Psi-75000, MPa – 515	8.0 g/cm3
410S	25 %	1532°C (2790°F)	Psi-30000, MPa – 205	Psi-75000, MPa-515	7.80 g/cm3
904L	35 %	1350 °C (2460 °F)	Psi-32000, MPa – 220	Psi-71000, MPa – 490	7.95 g/cm3

Stainless Steel Nyloc Half Nut Equivalent Grades

Check Stainless Steel Nylock Nuts Suppliers and Stockist in Ajman, Sharjah or Dubai, Offers various Equivalent Grades

STANDARD	BS	UNS	GOST	WERKSTOFF	JIS	AFNOR	EN
SS 304	304S31	S30400	08X18H10	1.4301	SUS 304	Z7CN18-09	X5CrNi18-10
SS 304L	3304S11	S30403	03X18H11	1.4306/1.4307	SUS304L	Z3CN18-10	X2CrNi18-9/X2CrNi19-11
SS 304H	–	S30409	–	1.4301	–	–	–
SS 310	310S24	S31000	20Ch25N20S2	1.4841	SUS 310	–	X15CrNi25-20
SS 310S	310S16	S31008	20Ch23N18	1.4845	SUS310S	–	X8CrNi25-21
SS 316	316S31/316S33	S31600		1.4401/1.4436	SUS 316	Z7CND17-11-02	X5CrNiMo17-12-2/X3CrNiMo17-13-3
SS 316L	316S11/316S13	S31603	03Ch17N14M3/03Ch17N14M2	1.4404/1.4435	SUS 316L	Z3CND17-11-02 /Z3CND18-14-03	X2CrNiMo17-12-2/X2CrNiMo18-14-3
SS 316H	316S51	S31609	–	–	–	–	–
SS 317	–	S31700	–	1.4449	SUS 317	–	X5CrNiMo1713
SS 317L	–	S31703	–	1.4438	SUS317L	–	X2CrNiMo18-15-4
SS 321	–	S32100	–	1.4541	SUS 321	–	X6CrNiTi18-10
SS 321H	–	S32109	–	1.4878	SUS321H	–	X12CrNiTi18-9
SS 347	–	S34700	–	1.4550	SUS 347	–	X6CrNiNb18-10
SS 347H	–	S34709	–	1.4961	SUS 347H	–	X6CrNiNb18-12
SS 409	–	S40900	–	1.4512	SUS409	–	X2CrTi12
SS 410S	–	S41008	–	1.4516	SUS410S	–	X6CrNiTi12
SS 904L	904S13	N08904	STS 317J5L	1.4539	SUS	Z2 NCDU 25-20	X1NiCrMoCu25-20-5
