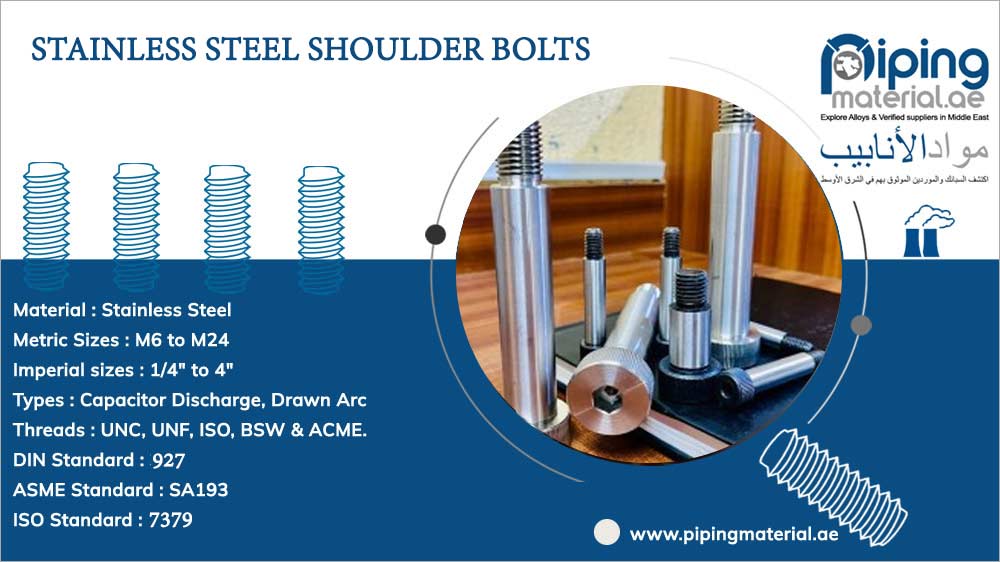

Stainless Steel Shoulder Bolts Functionalities
| Sizes in Stock : | M2 To M80 |
|---|---|
| Diameter : | ¼” to 2″ |
| Screw Purpose : | Smooth Bearing Surface |
| Head-diameter Tolerances : | ±0.005 in. |
| Bolt Length : | 4mm to 100mm |
| Approvals : | ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI |
| Ideal for : | Compact Assemblies |
| Designed For : | Angular Loading |
| Usa for : | Aerospace & Automotive |
| Threads Types : | Left Hand, Fine, ACME, Course |
| Testing : | Proof Load Test |
| Test Certificate : |
|
| Advantages : | Designed to Harsh Conditions |
| Origin of Raw Material: | Korean, Janpanese, European, Indian, UK, German |
| Delivery Time |
|
| MTC | EN 10204/3.1B |
| RFQ: | support@pipingmaterial.ae |
Why do GCC buyers trust Pipingmaterial.ae?
Explore Middle East FZE’s 26-year network of manufacturers, stockists, and approved suppliers across Asia and Europe is what gives Pipingmaterial.ae its unmatched supplier quality and coverage in the GCC market.
- Trusted B2B Platform
- Industry Expert Team
- Direct Quotes
- No Middlemen
- Trusted Stockists
- 5-10 Suppliers
- Material Selection Guide
SS shoulder eye bolt suppliers in UAE
Stainless Steel Shoulder Bolts Specifications
Size Range: M1.2 To M120 or Custom Sizes
Manufacturing Method: CNC Machine, Hot Forging, Cold Forging,
Application: Aerospace, Automotive, Oil and Gas
Threads Pitch : Fine and Coarse
Type of Head: Knurled & Smooth Head
Machines: Thread Rolling, CNC Lath, Making Machines
Type of Neck : Triangular, Knurled, Square, Hex
Finish: Passivated and Plain
Threads Types : UNF, CBSF, UN, BSW
Testing : Hardness Test, X-Ray Test, Ferritiscope Testing
Get Quote Directly from Stainless Steel Shoulder Bolts Suppliers in UAE
100% Tested SS Shoulder Eye Bolt with MTC EN 10204 3.1/3.2
Stainless steel shoulder screws in different drive & head styles for the petrochemical and oil-gas sectors
in the Middle East
Applications of 304 Stainless Steel Shoulder Bolts
Warehouse Locations of Stainless Steel Shoulder Bolts Stockist in UAE Partner Suppliers
| Asia | Brunei, Cambodia, Laos, Malaysia, Philippines, Thailand, Indonesia, Singapore, Mongolia, Vietnam, Myanmar, Taiwan |
|---|---|
| Europe | Armenia, Georgia, Azerbaijan, Andorra, Netherlands, Germany, Belgium, France, Italy |
| Middle East | Doha, Beirut, Al Jubail, Jebel Ali, Fujairah, Amman, Jordan, Riyadh, Turkey, Syria, Iraq, Abu Dhabi, Sohar, Dammam, Muscat, Lusail, Yemen, Ras Al Khaimah, Saudi Arabia, Dubai, SCZone, Lebanon, Al Khobar, Jeddah, Ajman, Sharjah, Manama, Umm Al Quwain |
Buy stainless steel shoulder eye bolt in Dubai at the best price, also check 316 SS shoulder bolt torque specs,
dimension
Stainless Steel Shoulder Bolt Torque Specs
Find Stainless Steel Shoulder Bolts Suppliers and Stockist in Ajman, Sharjah or Dubai Provides Outstanding Sizes for Bolts
| Thread Sizes | Tensile Strength in (Kg) | Thread Section in (Kg) | Tightening Torque in (Nm) | Thread Neck |
|---|---|---|---|---|
| M20 | 33,395 | 29,850 | 491.70 | 152.18 |
| M16 | 23,191 | 19,150 | 273.80 | 96.38 |
| M12 | 14,842 | 10,250 | 120.62 | 49.80 |
| M10 | 8,349 | 7,075 | 60.56 | 33.79 |
| M8 | 5,798 | 4,465 | 33.63 | 20.81 |
| M6 | 3,710 | 2,450 | 13.14 | 10.90 |
| M5 | 2,087 | 1,732 | 7.61 | 7.62 |
Stainless Steel Shoulder Bolts Dimension
Check Stainless Steel Shoulder Bolts Suppliers in UAE, Gives Accurate Dimensions for Bolts
Stainless Steel Shoulder Bolts Manufacturers in UAE Material Inspection Facility in Following Locations
| Africa | Addis Ababa, Benin, Ivory Coast, Equatorial Guinea, Cape Town, Rwanda, Nairobi, Kenya, South Africa, Durban, Togo, Abuja, Chad, Gabon, Cameroon, Republic of the Congo, West Africa, Lagos, Ghana, Niger, Nigeria, Johannesburg, Sudan, Congo, Ogun |
|---|---|
| GCC Countries | United Arab Emirates (UAE), Saudi Arabia, Bahrain, Kuwait, Qatar, Oman |
| MENA | Libya, Cairo, Casablanca, Algeria, Morocco, Tunisia, Egypt |
Wide range of colored & coated SS hex head shoulder screws, check M8 304 stainless steel shoulder bolt price per kg in United Arab Emirates
Stainless Steel Metric Shoulder Bolts Tolerance
View Stainless Steel Shoulder Bolts Suppliers and Stockist in Abu Dhabi or Umm Al Quwain, Gives Excellent Tolerance Chart
| Diameter of Tolerance | Nominal Shoulder Diameter |
|---|---|
| (MM) | (MM) |
| .013 – .036 | 6.5 – 10 |
| .016 – .043 | 13 – 16 |
| .020 – .052 | 20 – 25 |
Types of Stainless Steel Shoulder Bolts
View Stainless Steel Shoulder Bolts Suppliers in UAE, Offers Different Types of Bolts That Are Frequently Used
Stainless Steel Shoulder Eye Bolt
SS Custom Shoulder Bolts
Stainless Steel Double Shoulder Bolt
Types of Stainless Steel Shoulder Screws
Stainless Steel Headless Shoulder Screws
SS Slotted Shoulder Screw
Stainless Steel Hex Head Shoulder Screws
Warehouse Locations of Partner Suppliers
| Country | Cities |
|---|---|
| Netherlands | The Hague, Eindhoven, Amsterdam, Rotterdam, Haarlem |
| Belgium | Antwerp, Brussels, Ghent, Leuven, Seraing, Westerlo, Meeuwen-Gruitrode |
Shoulder eye bolt stainless and 316 stainless steel shoulder screw in METRIC, BSW, BSF, UNC and UNF threads
Stainless Steel Metric Shoulder Bolts Shear Strength
| Nominal Thread Size | Shear Strength Single of Body Lbs. |
|---|---|
| (Minimum) | |
| 1/2 | 18,850 |
| 1/4 | 4,710 |
| 3/4 | 42,410 |
| 3/8 | 10,500 |
| 5/8 | 29,450 |
| 5/16 | 7,360 |
| 1 | 75,400 |
| 1-1/2 | 169,500 |
| 1-1/4 | 117,800 |
| 1-3/4 | 231,000 |
| 2 | 301,500 |
Stainless Steel Shoulder Bolts Chemical Composition
Find Stainless Steel Shoulder Bolts Suppliers in UAE, Provides Best Quality Bolts With Superior Chemical Composition
| Grades | S | N | C | Mo | Mn | Si | Cr | Ni | P |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.030 | 0.10 | 0.08 max | – | 2.0 max | 0.75 max | 18.0-20.0 | 8.0-10.5 | 0.045 |
| 304L | 0.030 | 0.10 | 0.030 max | – | 2.0 max | 0.75 max | 18.0-20.0 | 8.0-12.0 | 0.045 |
| 304H | 0.030 | – | 0.04-0.10 | – | 2.0 max | 0.75 max | 18.0-20.0 | 8.0-10.5 | 0.045 |
| 310 | 0.015 max | 54.7 min | 0.015 max | 0.10 | 2 max | 0.15 max | 24.00-26.00 | 19.00-21.00 | 0.020 max |
| 310S | 0.030 max | 53.095 min | 0.08 max | 0.75 | 2 max | 1.0 max | 24.00-26.00 | 19.00-21.00 | 0.045 max |
| 316 | 0.030 max | 67.845 min | 0.08 max | 2.00-3.00 | 2.0 max | 1.0 max | 16.00-18.00 | 11.00-14.00 | 0.045 max |
| 316L | 0.030 max | 68.89 min | 0.035 max | 2.00-3.00 | 2.0 max | 1.0 max | 16.00-18.00 | 10.00-14.00 | 0.045 max |
| 316H | 0.030 max | – | 0.10 max | 2.00-3.00 | 0.10 max | 0.75 max | 16.00-18.00 | 10.00-14.00 | 0.045 max |
| SS 317 | 0.030 max | 57.845 | 0.08 max | 3.00-4.00 | 2.0 max | 1.0 max | 18.00-20.00 | 11.00-15.00 | 0.045 max |
| SS 317L | 0.030 max | 57.89 min | 0.035 max | 3.00-4.00 | 2.0 max | 1.0 max | 18.00-20.00 | 11.00-15.00 | 0.045 max |
| SS 321 | 0.030 max | 9.00-12.00 | 0.08 max | – | 2.0 max | 1.0 max | 17.00-19.00 | 5(C+N) -0.70 max | 0.045 max |
| SS 321H | 0.030 max | 0.10 max | 0.04-0.10 | – | 2.0 max | 1.0 max | 17.00-19.00 | 9.00-12.00 | 0.045 max |
| SS 347 | 0.030 max | – | 0.08 max | – | 2.0 max | 1.0 max | 17.00-20.00 | 9.00-13.00 | 0.045 max |
| SS 347H | 0.030 max | – | 0.04-0.10 | – | 2.0 max | 1.0 max | 17.00-19.00 | 9.0-13.0 | 0.045 max |
| SS 409 | 0.030 max | – | 0.08 max | – | 1.00 max | 1.00 max | 10.5-11.75 | 0.5 | 0.045 max |
| SS 410S | 0.030 max | – | 0.080 max | – | 1.00 max | 1.00 max | 10.5-12.5 | – | 0.040 max |
| SS 904L | 0.030 max | – | 0.020 max | 4.00-5.00 max | 2.00 max | 1.00 max | 19.00-23.00 | 23.00-28.00 | 0.040 max |
Stainless Steel Shoulder Bolts Mechanical Properties
View Stainless Steel Shoulder Bolts Distributer in Ras Al Khaimah or Fujairah, Offers the Best Screws With Outstanding Mechanical Qualities
| Grade | Yield Strength (0.2%Offset) | Density | Elongation | Melting Point | Tensile Strength |
|---|---|---|---|---|---|
| 304/304H/304L | Psi-30000, MPa – 205 | 8.0 g/cm3 | 35 % | 1400 °C (2550 °F) | Psi-75000, MPa-515 |
| 310/310S | Psi-30000, MPa – 205 | 7.9 g/cm3 | 40 % | 1402 °C (2555 °F) | Psi-75000, MPa – 515 |
| 316/316L/316H | Psi-30000, MPa – 205 | 8.0 g/cm3 | 35 % | 1400 °C (2550 °F) | Psi-75000, MPa – 515 |
| 317/ 317L | Psi-30000, MPa – 205 | 7.9 g/cm3 | 35 % | 1400 °C (2550 °F) | Psi-75000, MPa – 515 |
| 321/ 321H | Psi-30000, MPa – 205 | 8.0 g/cm3 | 40 % | 1457 °C (2650 °F) | Psi-75000, MPa – 515 |
| 347/ 347H | Psi-30000, MPa – 205 | 8.0 g/cm3 | 35 % | 1454 °C (2650 °F) | Psi-75000, MPa – 515 |
| 410S | Psi-30000, MPa – 205 | 7.80 g/cm3 | 25 % | 1532°C (2790°F) | Psi-75000, MPa-515 |
| 904L | Psi-32000, MPa – 220 | 7.95 g/cm3 | 35 % | 1350 °C (2460 °F) | Psi-71000, MPa – 490 |
Stainless Steel Socket Shoulder Screws Equivalent Grades
| STANDARD | EN | WERKSTOFF | GOST | JIS | AFNOR | UNS | BS |
|---|---|---|---|---|---|---|---|
| SS 304 | X5CrNi18-10 | 1.4301 | 08X18H10 | SUS 304 | Z7CN18-09 | S30400 | 304S31 |
| SS 304L | X2CrNi18-9/X2CrNi19-11 | 1.4306/1.4307 | 03X18H11 | SUS304L | Z3CN18-10 | S30403 | 3304S11 |
| SS 304H | – | 1.4301 | – | – | – | S30409 | – |
| SS 310 | X15CrNi25-20 | 1.4841 | 20Ch25N20S2 | SUS 310 | – | S31000 | 310S24 |
| SS 310S | X8CrNi25-21 | 1.4845 | 20Ch23N18 | SUS310S | – | S31008 | 310S16 |
| SS 316 | X5CrNiMo17-12-2/X3CrNiMo17-13-3 | 1.4401/1.4436 | SUS 316 | Z7CND17-11-02 | S31600 | 316S31/316S33 | |
| SS 316L | X2CrNiMo17-12-2/X2CrNiMo18-14-3 | 1.4404/1.4435 | 03Ch17N14M3/03Ch17N14M2 | SUS 316L | Z3CND17-11-02 /Z3CND18-14-03 | S31603 | 316S11/316S13 |
| SS 316H | – | – | – | – | – | S31609 | 316S51 |
| SS 317 | X5CrNiMo1713 | 1.4449 | – | SUS 317 | – | S31700 | – |
| SS 317L | X2CrNiMo18-15-4 | 1.4438 | – | SUS317L | – | S31703 | – |
| SS 321 | X6CrNiTi18-10 | 1.4541 | – | SUS 321 | – | S32100 | – |
| SS 321H | X12CrNiTi18-9 | 1.4878 | – | SUS321H | – | S32109 | – |
| SS 347 | X6CrNiNb18-10 | 1.4550 | – | SUS 347 | – | S34700 | – |
| SS 347H | X6CrNiNb18-12 | 1.4961 | – | SUS 347H | – | S34709 | – |
| SS 409 | X2CrTi12 | 1.4512 | – | SUS409 | – | S40900 | – |
| SS 410S | X6CrNiTi12 | 1.4516 | – | SUS410S | – | S41008 | – |
| SS 904L | X1NiCrMoCu25-20-5 | 1.4539 | STS 317J5L | SUS | Z2 NCDU 25-20 | N08904 | 904S13 |
Find Only Genuine Stockist and Distributors of Stainless Steel Shoulder Bolts in Dubai
- Helical Trading LLC :- Al Quoz, Dubai
- Golden Bolts Trading LLC :- Al Quoz, Dubai
- Saizo General Trading L.L.C :- Ras Al Khor, UAE
- Century Fasteners LLC :- Al Qusais, Dubai
