Stainless Steel Socket Weld Outlet

Stainless Steel Socket Weld Outlet Overview

Manufacturing Standard
  • GB/T19326
  • ASME B16.11
  • ASME B31.1
  • ASME B16.25
  • MSS SP-97
Testing
  • PMI Test
  • Chemical Analysis
  • Mechanical Testing
  • Hyrdrostatic Test
  • Hardness Test
Origin American, Janpanese, European, Russian, Korean
HSN Code 73072300
Thread Type NPT, PT, BSPP, BSPT, PF
Packaging
  • Wooden Pallet
  • Carton Box
  • Wooden Cases
Sour Service
  • NACE MR0103
  • NACE MR0175
  • NACE TM-0284

ASTM A182 F304 Sock O Lets & Stainless Steel Sockolet Suppliers in UAE

Stainless Steel Socket Weld Outlet Specification

Size

Stainless Steel Socket Weld Outlet Size: 1/8 to 4″

Pressure

ASTM A182 F304 Sockolet Pressure : Class 3000, 6000, 9000

Material

Socket Weld Outlet Material: Stainless Steel

Connection

Stainless Steel 316 Socket Weld Olets Connection: Threaded, Socket Weld, Soldering, Push-to-Connect

Schedule

ASTM A182 F304 Sockolet Schedule: Sch 40, Sch 80, Sch 160

Coating

Stainless Steel Socket Weld Outlet Coating: Anti Rust Paint

Applicable Fluid

ASME SA 182 F316L Sockolet Pipe Fittings Applicable Fluid: Water and Air, Steam, Oil and Gas

Applications

Applications: Water Treatment Plants, HVAC Systems, Oil & Gas Industry, Power Plants etc.

Surface Finish

Socket Weld Branch Outlet Surface Finish: HDG, Black, Polished, Electric Galvanizing

Thread

Thread: NPT, NPTF, BSPT, BSPP, UNF, UN

Quote

Buy Directly From Stainless Steel Socket Weld Outlet Suppliers in UAE and Get Datasheet

Process

Process: Hot and Cold Formed

Get Connected with Trusted A182 F316 Sockolet Fitting Manufacturers, Check 316 Stainless Steel Reducing Sockolet Price per kg in Dubai

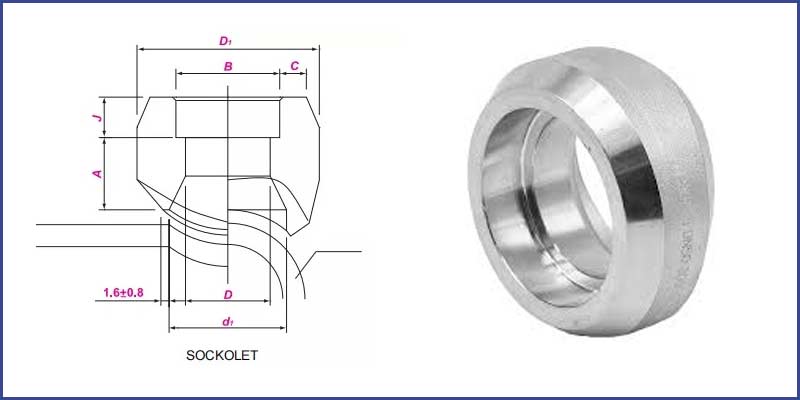

Dimension of SS Socket Weld Outlet

Dimension of SS Socket Weld Outlet

DN NPS DN NPS J A D C d1
3000 6000 3000 6000 3000 6000 3000 6000
8~900 1/4~36 6 1/8 9.5 10 – 27 – 3.18 – 16 –
10~900 3/8~36 8 1/4 9.5 10 – 27 – 3.78 – 16 –
18~900 1/2~36 10 3/8 9.5 13 – 30 – 4.01 – 19 –
20~900 3/4~36 15 1/2 9.5 16 24 38 47 4.67 5.97 24 19
25~900 1~36 20 3/4 12.5 16 25 47 53 4.90 6.96 30 25
32~900 1¼~36 25 1 12.5 22 29 56 63 5.69 7.92 36 33
40~900 1½~36 32 1¼ 12.5 22 30 66 74 6.07 7.92 45 38
50~900 2 40 1½ 12.5 24 32 75 83 6.35 8.92 51 49
65~900 2½~36 50 2 16 24 37 90 104 6.93 10.92 65 59
80~900 3~36 65 2½ 16 25 – 105 – 8.76 – 76 –
100~900 4~36 80 3 16 30 – 124 – 9.52 – 94 –
125~900 5~36 100 4 19 30 – 154 – 10.69 – 121 –

Locate Available Material from Stock

Fujairah Umm Al Quwain Sharjah Doha
Riyadh Dubai Muscat Ras Al Khaimah
Al Jubail Abu Dhabi Saudi Arabia Ajman

SS Socket Weld Outlet Types

SS Insert Weldolet

SS Insert Weldolet

Stainless Steel Socket Weld Branch Outlet

Stainless Steel Socket Weld Branch Outlet

A182 F304 Sockolet

A182 F304 Sockolet

Stainless Steel Pipe Sockolet Applications

Established Stainless Steel Socket Weld Outlet Suppliers in UAE of reliable goods tailored for harsh industrial applications.

  • Oil & Gas Pipelines
  • Chemical & Petrochemical Industry
  • Power Generation Industry
  • Pharmaceutical & Food Processing
  • Marine & Shipbuilding



Check ASME SA 182 F316L Sockolet Pipe Fittings Dimensions as per ASME B16.11, Buy AISI 321 Stainless Steel SW Outlet in DN15-DN40 Sizes

Stainless Steel Socket Weld Coupling Dimensions

Class 3000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 1 1/32 1 1/32 1 1/32 1 3/16 1 13/32 1 33/64 1 33/64 1 33/64 2 1/64 2 1/64 2 1/64 2 17/64
B 3/4 7/8 1 1/16 1 1/4 1 1/2 1 13/16 2 1/4 2 1/2 23 3 5/8 4 5/16 5 1/2
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
E 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4
Wt 0.125 0.125 0.125 0.188 0.313 0.563 0.813 1.000 2.000 2.625 3.875 6.625
Class 6000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 1 1/16 1 1/8 1 1/8 1 5/32 1 13/32 1 33/64 1 33/64 1 33/64 2 1/64 2 1/64 2 1/64 2 17/64
B 7/8 1 1/16 1 5/16 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
E 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4
Wt – – – 0.375 0.563 1.000 1.438 2.000 3.875 5.500 6.625 13.125
Class 9000 XXS Bore Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2  –
A – – – 1 3/8 1 1/2 1 3/4 1 7/8 2 2 1/2
B – – – 1 13/16 2 2 3/8 2 3/4 3 1/16 3 5/8
C – – – 0.855 1.065 1.330 1.675 1.915 2.406
D – – – 1/2 9/16 5/8 11/16 3/4 7/8
E – – – 3/8 3/8 1/2 1/2 1/2 3/4
Wt – – – 0.75 1.06 1.69 2.22 2.81 4.66

Stainless Steel S/W Reducing Insert Dimensions

Nominal Pipe Size Class 3000 Class 6000 Class 9000
C D Fitting Type A B E Fitting Type A B E Fitting Type A B E
3/4 x 1/4 1.060 0.555 2 3/8 11/16 2 3/8 7/8 – – – –
1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2
1 x 1/2 1.325 0.855 2 1/2 5/8 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4
1 x 3/8 1.325 0.690 2 7/16 11/16 2 1/2 7/8 – – – –
1 x 1/4 1.325 0.555 2 3/8 3/4 2 3/8 15/16 – – – –
1/2 x 1/4 0.850 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1 – – – –
3/4 x 1/2 1.060 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4
3/4 x 3/8 1.060 0.690 2 7/16 5/8 1 7/16 7/8 1 3/16 – – – –
1 1/4 x 3/8 1.670 0.690 2 7/16 13/16 2 7/16 15/16 – – – –
1 1/4 x 1/4 1.670 0.555 2 3/8 7/8 2 3/8 1 – – – –
1 1/2 x 1 1/4 1.910 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.910 1.330 2 5/8 11/16 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 1 1.670 1.330 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.670 1.065 2 9/16 11/16 2 9/16 13/16 1 9/16 1 3/16 2
1 1/4 x 1/2 1.670 0.855 2 1/2 3/4 2 1/2 7/8 2 1/2 7/8
3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1 – – – –
1/2 x 3/8 0.850 0.690 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16 – – – –
1 1/2 x 3/4 1.910 1.065 2 9/16 3/4 2 9/16 1 2 9/16 1
1 1/2 x 1/2 1.910 0.855 2 1/2 13/16 2 1/2 1 1/16 2 9/16 1
1 1/2 x 3/8 1.910 0.690 2 7/16 7/8 2 7/16 1 1/8 – – – –
2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3
2 x 1 1/4 2.385 1.675 2 11/16 13/16 2 7/8 15/16 1 9/16 2 2 3/4
2 x 1 2.385 1.330 2 5/8 7/8 2 13/16 1 2 13/16 1
2 x 3/4 2.385 1.065 2 9/16 15/16 2 3/4 1 1/16 2 3/4 1 1/16
2 x 1/2 2.385 0.855 2 1/2 1 2 11/16 1 1/8 2 11/16 1 1/8

Stainless Sockolet Pipe Fittings Weight Chart

Nominal Size SWOutlet
DN NPS 3000 6000
6 1/8 0.05 –
8 1/4 0.05 –
10 3/8 0.09 –
15 1/2 0.16 0.35
20 3/4 0.2 0.47
25 1 0.42 0.68
32 1-1/4 0.59 1.1
40 1-1/2 0.7 1.3
50 2 1.1 2.45
65 2-1/2 1.4 –
80 3 2.3 –
90 3-1/2 – –
100 4 4.20 –

Sales Agents in Following Locations

Country Cities
Netherlands Amsterdam
Netherlands The Hague
Belgium Brussels
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Seraing
Netherlands Eindhoven
Belgium Ghent
Netherlands Rotterdam
Belgium Leuven
Belgium Westerlo
Belgium Antwerp

Advantage of Stainless Steel Socket Weld Outlet

  • Easy and fast installation
  • Good sealing performance
  • Wide applicability
  • Strong bearing capacity
  • Easy to maintain and replace
  • Good economy



View Duplex Stainless Steel Pipe Sockolet Disadvantages, and Pressure Rating in Class 2000 to 9000

A182 F316 Sockolet Fitting Pressure Rating

Temperature (°F) Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 235 620 825 1240 1860 3095 5160
300 215 560 745 1120 1680 2795 4660
400 195 515 685 1025 1540 2570 4280
500 170 480 635 955 1435 2390 3980
600 140 450 600 900 1355 2255 3760
650 125 445 590 890 1330 2220 3700
700 110 430 580 870 1305 2170 3620
750 95 425 570 855 1280 2135 3560
800 80 420 565 845 1265 2110 3520
850 65 420 555 835 1255 2090 3480
900 50 415 555 830 1245 2075 3460
950 35 385 515 775 1160 1930 3220
1000 20 365 485 725 1090 1820 3030
1100 – 305 405 610 915 1525 2545
1200 – 185 245 370 555 925 1545
1300 – 115 155 235 350 585 970
1400 – 75 100 150 225 380 630
1500 – 40 55 85 125 205 345

Stainless Steel Pipe Sockolet Disadvantages

  • Crevice Corrosion Risks
  • Lower Strength and Pressure Rating
  • High Initial Cost
  • Thermal Expansion Issues
  • Not Suitable for Severe Vibration



Contact Us Now for a List of Clients Situated in the Cities Listed Below

Region City Country
Middle East Abu Dhabi United Arab Emirates
Middle East Dubai United Arab Emirates
Middle East Riyadh Saudi Arabia
Middle East Dammam Saudi Arabia
Africa Abuja Nigeria
Middle East Doha Qatar
Middle East Jeddah Saudi Arabia
Middle East Kuwait City Kuwait
MENA Casablanca Morocco
MENA Cairo Egypt
Africa Cape Town South Africa
Africa Johannesburg South Africa
Africa Lagos Nigeria
Find Various Verified Stainless Steel 316 Socket Weld Olet & Super Duplex Sockolet Flange Importers in Middle East countries

SS Socket Weld Outlet Equivalent

Global Stainless Steel Socket Weld Outlet Suppliers in UAE known for outstanding service and top-tier product standards.

STANDARD UNS WERKSTOFF NR. JIS EN BS AFNOR GOST
SS 304 S30400 1.4301 SUS 304 X5CrNi18-10 304S31 Z7CN18‐09 08Х18Н10
SS 304L S30403 1.4306 / 1.4307 SUS 304L X2CrNi18-9 / X2CrNi19-11 3304S11 Z3CN18‐10 03Х18Н11
SS 310 S31000 1.4841 SUS 310 X15CrNi25-20 310S24 – 20Ch25N20S2
SS 304H S30409 1.4301 – – – – –
SS 310S S31008 1.4845 SUS 310S X8CrNi25-21 310S16 – 20Ch23N18
SS 316L S31603 1.4404 / 1.4435 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03 03Ch17N14M3 / 03Ch17N14M2
SS 316 S31600 1.4401 / 1.4436 SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 316S31 / 316S33 Z7CND17‐11‐02 –
SS 316Ti S31635 1.4571 SUS 316Ti X6CrNiMoTi17-12-2 320S31 Z6CNDT17‐123 08Ch17N13M2T
SS 321 S32100 1.4541 SUS 321 X6CrNiTi18-10 – – –
SS 347 S34700 1.4550 SUS 347 X6CrNiNb18-10 – – 08Ch18N12B
SS 321H S32109 1.4878 SUS 321H X12CrNiTi18-9 – – –
SS 446 S44600 1.4762 – – – – –
SS 317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4 – – –
SS 317 S31700 1.4449 SUS 317 – – – –
SS 410 S41000 1.4006 SUS 410 X12Cr13 410S21 – –
SS 904L N08904 1.4539 SUS 904L X1NiCrMoCu25-20-5 904S13 Z2 NCDU 25-20 STS 317J5

Stainless Socket Weld Branch Outlet Chemical Composition

Stainless Steel Grades Cr (%) max Mn (%) max C (%) max P (%) max Ni (%) Si (%) max Mo (%) S (%) max
SS 304 18.00 – 20.00 2.00 0.08 0.045 8.00 – 10.50 0.75 – 0.03
SS 304L 18.00 – 20.00 2.00 0.03 0.045 8.00 – 12.00 0.75 – 0.03
SS 304H 18.00 – 20.00 2.00 0.04 – 0.10 0.045 8.00 – 12.00 1.00 – 0.03
SS 310 24.00 – 26.00 2.00 0.25 0.045 19.00 – 22.00 1.50 – 0.03
SS 310S 24.00 – 26.00 2.00 0.08 0.045 19.00 – 22.00 1.50 – 0.03
SS 316 16.00 – 18.00 2.00 0.08 0.045 10.00 – 14.00 0.75 2.00 – 3.00 0.03
SS 316Ti 16.00 – 18.00 2.00 0.08 0.045 10.00 – 14.00 0.75 2.00 – 3.00 0.03
SS 316L 16.00 – 18.00 2.00 0.03 0.045 10.00 – 14.00 0.75 2.00 – 3.00 0.03
SS 446 23.00 – 28.00 1.50 0.20 0.04 – 1.00 – 0.03
SS 410 11.50 – 13.50 1.00 0.15 0.04 – 1.00 – 0.03
SS 317 18.00 – 20.00 2.00 0.10 0.045 11.00 – 15.00 1.00 3.00 – 4.00 0.03
SS 321 17.00 – 19.00 2.00 0.08 0.045 9.00 – 12.00 1.00 – 0.03
SS 317L 18.00 – 20.00 2.00 0.03 0.045 11.00 – 15.00 1.00 3.00 – 4.00 0.03
SS 347 17.00 – 19.00 2.00 0.08 0.045 9.00 – 13.00 1.00 – 0.03
SS 321H 17.00 – 19.00 2.00 0.04 – 0.10 0.045 9.00 – 12.00 1.00 – 0.03
SS 904L 19.00 – 23.00 2.00 0.02 0.045 24.00 – 26.00 1.00 4.00 – 5.00 0.03

SS Sockolet Fitting Mechanical Properties

Stainless Steel Grades Tensile Strength (MPa) Yield Strength (MPa) Poisson’s Ratio Modulus of Elasticity (GPa) Hardness (HRB) Elongation (%)
SS 304 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 304H 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 304L 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 310S 515 – 740 205 – 275 0.29 193 90 – 105 40 – 50
SS 310 515 – 740 205 – 275 0.29 193 90 – 105 40 – 50
SS 316L 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 446 520 – 720 205 0.28 190 85 – 95 40 – 50
SS 317 520 – 730 205 0.29 193 85 – 95 40 – 50
SS 321 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 347 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 316 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 316Ti 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 317L 520 – 730 205 0.29 193 85 – 95 40 – 50
SS 321H 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 410 520 – 720 205 0.28 190 85 – 95 35 – 45
SS 904L 520 – 720 205 0.29 193 85 – 95 40 – 50

Locate Available Material from Stock

MENA Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East countries Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Pipe Outlet Fittings

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
