Stainless steel weld o lets

Home > Stainless steel weld o lets

Stainless steel weld o lets

Stainless Steel Weld O Lets Highlights

Manufacturing Standard
  • GB/T19326
  • ASME B16.11
  • ASME B31.1
  • ASME B16.25
  • MSS SP-97
Testing
  • PMI Test
  • Chemical Analysis
  • Mechanical Testing
  • Hardness Test
  • Hyrdrostatic Test
Origin American, Janpanese, European, Russian, Korean
HSN Code 73072300
Temperature 250c
Surface Finishing Glossy
Process Free forging, plate cutting forged
Connect Type Welded, threaded, BW, SW
Packaging
  • Wooden Pallet
  • Carton Box
  • Wooden Cases
Sour Service
  • NACE MR0103
  • NACE MR0175
  • NACE TM-0284

ASTM A182 F304 Welding Outlet Fittings and Stainless Steel Weldolet Suppliers in UAE

Stainless Steel Weld O Lets Specification

Size

SS Welding Outlet Fittings Size: 1/2 to 24″

Pressure

Stainless Steel Welding Outlet Pressure : Class 3000, 6000, 9000

Material

SS 316 Welding Outlets Material: Stainless Steel

Connection

SS Welding Outlet Connection: Threaded, Socket Weld, Soldering, Push-to-Connect

Schedule

ASME SA182 F304L Weld Branch Outlet Schedule: Sch 40, Sch 80, Sch 160

Coating

ASTM A182 F304 Welding Outlet Coating: Anti Rust Paint

Applicable Fluid

Stainless Steel 304 Reducing Weldolet Applicable Fluid: Water and Air, Steam, Oil and Gas

Applications

Applications:Water Treatment Plants, HVAC Systems, Oil & Gas Industry, Power Plants etc. (change)

Surface Finish

SS Welding Outlet Surface Finish: HDG, Black, Polished, Electric Galvanizing

Thread

Thread: NPT, NPTF, BSPT, BSPP, UNF, UN

Quote

Buy Directly From Stainless Steel Weld O Lets Suppliers in UAE and Get Datasheet

Process

Process: Hot and Cold Formed

Buy from Professional Duplex Weldolet Fitting Manufacturers in Dubai, Check MSS SP 97 Weldolet Dimensions in Class 2000 to 9000

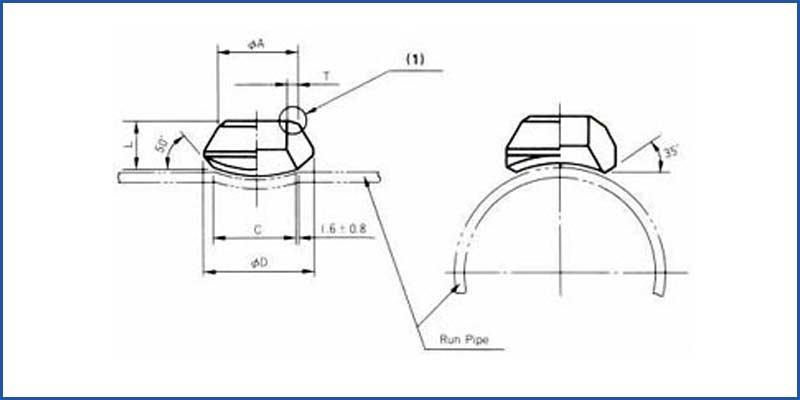

MSS SP 97 Weldolet Dimensions

MSS SP 97 Weldolet Dimensions

NPS A B C D
1/2 3/4,
19.05		 1.3/8,
34.93		 15/16,
23.81		 5/8,
15.88
3/4 7/8,
22.23		 1.5/8,
41.28		 1.3/16,
30.16		 13/16,
20.64
1 1.1/16,
26.99		 2,
50.80		 1.7/16,
36.51		 1.1/32,
26.19
1¼ 1¼,
31.75		 2.3/8,
60.3		 1.3/4,
44.45		 1.3/8,
34.93
1½ 1.5/16,
33.34		 2.7/8,
73		 2,
50.80		 1.5/8,
41.28
2 1½,
38.10		 3½,
88.90		 2.9/16,
65.09		 2.1/16,
52.39
2½ 1.5/8,
41.28		 4.1/16,
103.19		 3,
76.20		 2.7/16,
61.91
3 1.3/4,
44.45		 4.13/16,
122.24		 3.11/16,
93.66		 3.1/16,
77.79
3½ 2,
50.80		 5.3/8,
136.53		 3.7/8,
98.43		 3.9/16,
90.49
4 2,
50.80		 6,
152.40		 4.3/4,
120.65		 4,
101.60
5 2¼,
57.15		 7.1/8,
180.98		 5.9/16,
141.29		 5.1/16,
128.59
6 2.3/8,
60.3		 8½,
215.90		 6.11/16,
169.86		 6.1/16,
153.99
8 2.3/4,
69.85		 10.3/8,
263.53		 8.11/16,
220.66		 7.15/16,
201.61
10 3.1/16,
77.79		 12.9/16,
319.09		 10.13/16,
274.64		 10,
254.00
12 3.3/8,
85.73		 14.7/8,
377.83		 12.13/16,
325.44		 12,
304.80
14 3½,
88.90		 16.1/8,
409.58		 14.1/16,
357.19		 13¼,
336.55
16 3.11/16,
93.66		 18¼,
463.55		 16.1/16,
407.99		 15¼,
387.35
18 4.1/16,
103.19		 20.3/4,
527.05		 18.5/8,
473.08		 17¼,
438.15
20 4.5/8,
117.48		 23.1/16,
585.79		 20.1/16,
509.59		 19¼,
488.95
24 5.3/8,
136.53		 27.7/8,
708.03		 25.1/8,
638.18		 23¼,
590.55

Material Inspection Facility in Following Locations

MENA Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East countries Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Get Super Duplex Pipe Weldolet at Affordable Prices from Genuine Stainless Steel 304 Reducing Weldolet Stockists in the United Arab Emirates

Stainless Steel Reducing Weldolet Size Chart

Run Sizes Weldolet Size Inches
1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6
3/8 3/8 1/2 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6
1/2 1/2 1 3/4 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8
1 3/4 1 3/4 1 1/2 – 1 1/4 1 1 1/2 – 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10
2 1/2 – 1 1/4 1 1/2 – 1 1/4 36-3 1 1/2 – 1 1/4 2 1/2 – 2 2 2 1/2 3 4 – 3 1/2 4 5 6 8 10 14-12
36-3 36-3 flat 2 1/2 – 2 5-3 2 1/2 3 1/2 – 3 4 – 3 1/2 5 5 6 8 10 12 16
flat flat – 8-3 12-6 3 1/2 – 3 5-4 6-5 6 6 8 10 14-12 14 18
– – – 36-10 36-14 5 – 4 8-6 12-8 10-8 8 10 14-12 20-16 18-16 22-20
– – – flat flat 10 – 6 18-10 24-14 18-12 12-10 14-12 20-16 22 22-20 28-24
– – 3/4 – 1/2 – – 36 – 12 36-20 36-26 36-20 18-14 20-16 36-24 36-24 28-24 36-30
– – 36 – 1 – – flat flat flat flat 36-20 36-24 flat flat 36-30 flat
– – flat – – – – – – flat flat – – flat –

SS Welding Outlet Fittings Applications

Industry-leading Stainless Steel Weld O Lets Suppliers in UAE known for consistent quality and robust construction

  • Petrochemical
  • Mining
  • Shipbuilding
  • Power Plant
  • Oil & Gas
  • Chemical
  • Oil Mills



Sales Representative available to Provide Quick Quote

Fujairah Umm Al Quwain Sharjah Doha
Riyadh Dubai Muscat Ras Al Khaimah
Al Jubail Abu Dhabi Saudi Arabia Ajman

SS Welding Outlet Types

SS 45 Degree Weldolet

SS 45 Degree Weldolet

Stainless Socket Welding Outlet

Stainless Socket Welding Outlet

Stainless Steel Threaded Welding Outlet

Stainless Steel Threaded Welding Outlet

316 Stainless Steel Weldolet Branch Connection & ASTM A182 F316 Weld Olets are Available in Various Wall Thickness such as Sch 80, 40, 60 in UAE

SS Welding Olets Reducing Standard Weight Chart

Outlet Size Inches A B C Apprx. Weight Pounds
3/8 3/4 1 1/4 3/4 0.15
1/2 3/4 1 3/8 15/16 0.20
3/4 7/8 1 3/4 1 3/16 0.25
1 1 1/16 2 1/8 1 7/16 0.50
1 1/4 1 1/4 2 9/16 1 3/4 0.80
3 1 3/4 4 13/16 3 11/16 4.00
3 1/2 1 7/8 5 1/4 4 5.50
4 2 6 4 3/4 6.30
5 2 1/4 7 1/16 5 9/16 10.25
6 2 3/8 8 3/16 6 11/16 12.00
8 2 3/4 10 1/4 8 11/16 23.00
10 3 1/16 12 11/16 10 13/16 36.00
12 3 3/8 14 7/8 12 13/16 59.00
1 1/2 1 5/16 2 7/8 2 1.00
2 1 1/2 3 1/2 2 9/16 1.75
2 1/2 1 5/8 4 1/16 3 2.50
1/8 5/8 1 5/8 0.10
1/4 5/8 1 5/8 0.10
14 3 1/2 16 9/16 14 1/16 66.00
16 3 11/16 18 1/4 16 1/16 75.00
18 3 13/16 21 1/16 18 1/16 97.00
20 4 23 3/16 20 118.00
24 4 9/16 27 3/4 24 3/16 220.00
26 4 11/16 29 7/8 26 1/4 265.00
30 5 3/8 34 1/2 30 7/16 430.00
36 5 3/8 40 1/2 36 1/2 900.00

Call Now for the Clients List Based in Below Locations

Country Cities
Netherlands Amsterdam
Netherlands The Hague
Belgium Brussels
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Seraing
Netherlands Eindhoven
Belgium Ghent
Netherlands Rotterdam
Belgium Leuven
Belgium Westerlo
Belgium Antwerp

SS 316 Welding Outlets Documentations

Trusted Stainless Steel Weld O Lets Suppliers in UAE who offer various Welding Outlets with complete documentations

  • Quality Assurance Plan (QAP)
  • Certificate of Origin
  • Fumigation Certificates
  • Raw Material Test Reports
  • Material Traceability Records
  • Heat Treatment Charts
  • Material Test Certificates (MTC)
  • Commercial Invoice which includes HS Code



Looking for 2 inch Weldolet in Stainless Steel? Compare price of Different AISI 904L Welding Olets & 317L SS 45 degree Weldolet Importers in the Middle East Countries

Stainless Steel Welding Outlet Equivalent

STANDARD UNS WERKSTOFF NR. JIS BS GOST EN
SS 304 S30400 1.4301 SUS 304 304S31 08Х18Н10 X5CrNi18-10
SS 304L/304H S30403/S30409 1.4306 / 1.4307/1.4301 SUS 304L 3304S11 03Х18Н11 X2CrNi18-9 / X2CrNi19-11
SS 310 S31000 1.4841 SUS 310 310S24 20Ch25N20S2 X15CrNi25-20
SS 310S/310H S31008/S31009 1.4845 SUS 310S 310S16 20Ch23N18 X8CrNi25-21
SS 316 S31600 1.4401 / 1.4436 SUS 316 316S31 / 316S33 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316Ti S31635 1.4571 SUS 316Ti 320S31 08Ch17N13M2T X6CrNiMoTi17-12-2
SS 317 S31700 1.4449 SUS 317 – – –
SS 317L S31703 1.4438 SUS 317L – – –
SS 321 S32100 1.4541 SUS 321 – – X6CrNiTi18-10
SS 321H S32109 1.4878 SUS 321H – – X12CrNiTi18-9
SS 347 S34700 1.4550 SUS 347 – 08Ch18N12B X6CrNiNb18-10
SS 347H S34709 1.4961 SUS 347H – – X6CrNiNb18-12
SS 904L N08904 1.4539 SUS 904L 904S13 / KS STS 317J5L – X1NiCrMoCu25-20-5
SS 316L S31603 1.4404 / 1.4435 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

SS Weldolet Chemical Composition

Stainless Steel Grades Cr (%) max Mn (%) max C (%) max P (%) max Ni (%) Si (%) max Mo (%) S (%) max
SS 304 18.00 – 20.00 2.00 0.08 0.045 8.00 – 10.50 0.75 – 0.03
SS 304L 18.00 – 20.00 2.00 0.03 0.045 8.00 – 12.00 0.75 – 0.03
SS 304H 18.00 – 20.00 2.00 0.04 – 0.10 0.045 8.00 – 12.00 1.00 – 0.03
SS 310 24.00 – 26.00 2.00 0.25 0.045 19.00 – 22.00 1.50 – 0.03
SS 310S 24.00 – 26.00 2.00 0.08 0.045 19.00 – 22.00 1.50 – 0.03
SS 316 16.00 – 18.00 2.00 0.08 0.045 10.00 – 14.00 0.75 2.00 – 3.00 0.03
SS 316Ti 16.00 – 18.00 2.00 0.08 0.045 10.00 – 14.00 0.75 2.00 – 3.00 0.03
SS 316L 16.00 – 18.00 2.00 0.03 0.045 10.00 – 14.00 0.75 2.00 – 3.00 0.03
SS 446 23.00 – 28.00 1.50 0.20 0.04 – 1.00 – 0.03
SS 410 11.50 – 13.50 1.00 0.15 0.04 – 1.00 – 0.03
SS 317 18.00 – 20.00 2.00 0.10 0.045 11.00 – 15.00 1.00 3.00 – 4.00 0.03
SS 321 17.00 – 19.00 2.00 0.08 0.045 9.00 – 12.00 1.00 – 0.03
SS 317L 18.00 – 20.00 2.00 0.03 0.045 11.00 – 15.00 1.00 3.00 – 4.00 0.03
SS 347 17.00 – 19.00 2.00 0.08 0.045 9.00 – 13.00 1.00 – 0.03
SS 321H 17.00 – 19.00 2.00 0.04 – 0.10 0.045 9.00 – 12.00 1.00 – 0.03
SS 904L 19.00 – 23.00 2.00 0.02 0.045 24.00 – 26.00 1.00 4.00 – 5.00 0.03

SS Welding Outlet Fittings Mechanical Properties

Stainless Steel Grades Tensile Strength (MPa) Yield Strength (MPa) Poisson’s Ratio Modulus of Elasticity (GPa) Hardness (HRB) Elongation (%)
SS 304 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 304H 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 304L 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 310S 515 – 740 205 – 275 0.29 193 90 – 105 40 – 50
SS 310 515 – 740 205 – 275 0.29 193 90 – 105 40 – 50
SS 316L 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 446 520 – 720 205 0.28 190 85 – 95 40 – 50
SS 317 520 – 730 205 0.29 193 85 – 95 40 – 50
SS 321 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 347 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 316 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 316Ti 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 317L 520 – 730 205 0.29 193 85 – 95 40 – 50
SS 321H 520 – 720 205 0.29 193 85 – 95 40 – 50
SS 410 520 – 720 205 0.28 190 85 – 95 35 – 45
SS 904L 520 – 720 205 0.29 193 85 – 95 40 – 50
