Super Duplex 2507 Round Bar

It can be challenging to find verified super duplex manufacturers online or offline. However, the solution to the above challenge is simple and is just a click away, it is pipingmaterial.ae. You can order a super duplex 2507 round bar from the above website as it has only a verified list of manufacturers. It specifically caters to the Middle East buyers.

Pipingmaterial.ae provides only ten manufacturers from a region and you can choose your preferred option after thorough research. You can communicate with the factory directly to place an order without any interference from middlemen. Hence, you can enjoy genuine super duplex round bars fresh from the factory on this B2B portal.

Verified Supplier

SAF 2507 steel hex bar suppliers in UAE

Super duplex 2507 round bar specification


Super duplex 2507 round bar specification

SDSS 2507 round bar diameter 25cr super duplex hex bar size range EN 1.4410 flat bar size
  • 3mm to 800mm

Custom sizes super duplex 2507 bar stock available in Saudi Arabia & Dubai, contact above verified top 10 stockists and suppliers

  • 2mm to 100mm
  • Thickness: 2 to 100mm
  • Width: 10mm to 500mm
Super duplex 25cr square bar sizes SAF 2507 cold drawn bar length SDSS 2507 forged bar surface finish
  • 4 to 100mm
  • Up to 50 ft

Looking for polished SDSS 2507 bar material? Call directly to verified super duplex 2507 round bar suppliers in UAE

  • 6 RA
  • 32 RA
  • 63 RA
Super duplex 1.4410 bright bar precision straightness 25cr duplex bar stock uses & applications Meet Standard
  • 0.006″ TIR/FT
  • 0.0015″ TIR/FT
  • Piston rods
  • Desalination plants
  • Construction
  • Pump parts
  • Machined equipments
  • Rotational applications
  • Oil & Gas
  • Shipbuilding
  • Bearing
  • Propeller shafts
  • Marine
  • Fasteners
  • ASTM A923 test
  • ISO 15156
  • API
  • ASTM A182
  • NACE MRO175
  • ASTM A276
  • ASTM A479
Temperature limit SDSS 2507 rod common forms Super duplex 25cr bright bar european standard
  • Up to 300°C

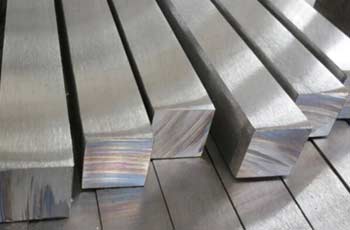

  • Super duplex 2507 square bar
  • EN 1.4410 rectangular bar

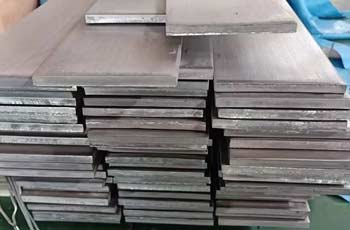

  • SDSS 2507 flat bar
  • SAF 2507 hexagonal bar
  • BS EN 10088-3
  • EN 10272
  • EN 10088-3
Types of super duplex 2507 bar stock Value added services 25cr duplex forged bar quality test & MTC
  • EN 1.4410 pump shaft (PSQ)
  • SDSS 2507 bearing shaft (BSQ)
  • Super duplex 2507 TGP bar (Turned Ground & Polished)
  • SAF 2507 polished bar
  • Super duplex 25cr machined bar
  • EN 1.4410 billets
  • 2507 precision ground bar
  • SDSS 2507 blooms
  • Super duplex 2507 solution-annealed bar
  • SAF 2507 forged bar
  • Precision super duplex 25cr polished rod
  • Super duplex 1.4410 cold finished bar
  • SAF 2507 boat shaft
  • Super duplex 2507 G&P
  • Centerless Turning
  • Chrome Plating
  • CNC Machining
  • Press Straightening
  • Rotary Straightening
  • Centerless Grinding
  • Pre-Straightening
  • Custom Packaging
  • Heat Treating
  • End Conditioning
  • Saw Cutting
  • Press Straightening
  • Mechanical Testing
  • PMI
  • 3.1 certification
  • Mettalographic Testing
  • Failure Analysis
  • Non Destructive Testing
SDSS 2507 precision ground bar tolerance Machined SAF 2507 bar stock tolerance Super duplex 2507 bar delivery condition
  • +2/-0 mm
  • h6 Tolerance
  • 2507 black bar
  • Cold drawn
  • Peeled
  • Hot rolled
  • Centreless ground
  • Smooth turned
  • Rough turned
  • Grinding
  • Hot rolled annealed
  • SDSS 2507 bright bar
  • Slit rolled edge
  • Bright drawn
  • Polished SAF 2507 bar
EN 1.4410 forged bar ISO tolerances SDSS 2507 cold drawn bar ISO 286 tight tolerances Super duplex 1.4410 polished bar manufacturing technique
  • H6
  • H7
  • H8
  • H9
  • H10
  • H11
  • G5
  • G6
  • D8
  • D9
  • Cold Drawn
  • Hot Rolled
  • Forged

Check super duplex 1.4410 flat bar and 25cr super duplex rod stock weight, sizes, and tolerances

SDSS 2507 cold-drawn round bar stock

Length Dia Tolerance Chamfering
  • 78.7401 – 276 in
  • 0.1181 to 1.1811 in
  • ASTM A484
  • As per requirement
  • 0.3748 in

25cr super duplex centerless grinding bar stock

Dia Chamfering Tolerance Length
  • 0.2362 – 1.0000
  • 0.3748
  • ASTM A484
  • 78.7401 to 275.5905 in

EN 1.4410 cold-drawn square bar stock

Dia Tolerance Length
  • 3/16″ to 1″
  • ASTM A484
  • As per client requirement
  • 78.7401 – 276

Super duplex 25cr cold-drawn hex bar stock

Dia Length Tolerance
  • 0.1968 – 0.9842 in
  • 78.7401 – 275.5905
  • ASTM A484

Surface condition of 2507 super duplex round bar

Hairline No.8
Matt No.6 Mirror Finish
Mill finish Black bar
Bright Polished

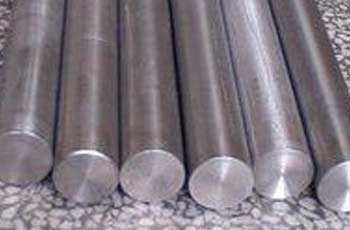

Types of SDSS 2507 bar

Super duplex 2507 normalized bars

Super duplex 2507 normalized bars

25cr super duplex grinded machined bars

25cr super duplex grinded machined bars

EN 1.4410 cold rolled bars

EN 1.4410 cold rolled bars

SDSS 2507 continuous cast bars

SDSS 2507 continuous cast bars

SAF 2507 hardened & tempered bars

SAF 2507 hardened & tempered bars

Super duplex 1.4410 rolled bars

Super duplex 1.4410 rolled bars

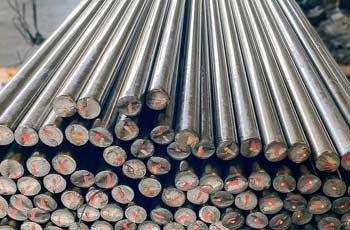

25cr SDSS hot rolled bars

25cr SDSS hot rolled bars

Super duplex 2507 bright bars

Super duplex 2507 bright bars

25cr super duplex annealed bars

25cr super duplex annealed bars

EN 1.4410 peeled bars

EN 1.4410 peeled bars

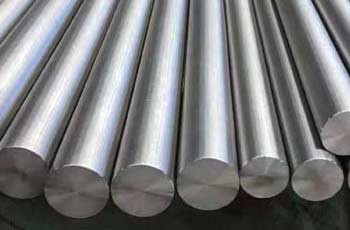

SDSS 2507 black bars

SDSS 2507 black bars

SAF 2507 quenched & tempered bars

SAF 2507 quenched & tempered bars

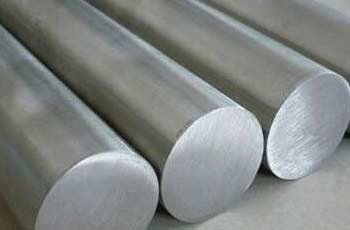

Super duplex 1.4410 forged bars

Super duplex 1.4410 forged bars

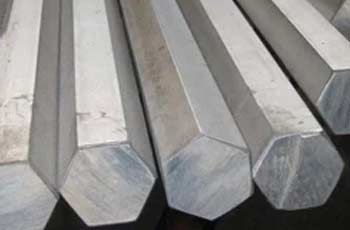

Super duplex 2507 hex bar

Super duplex 2507 hex bar

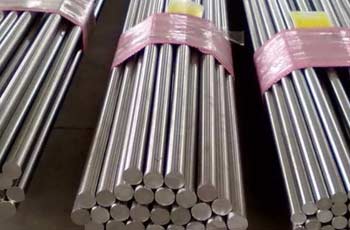

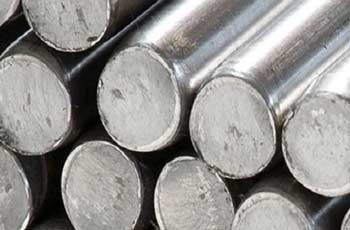

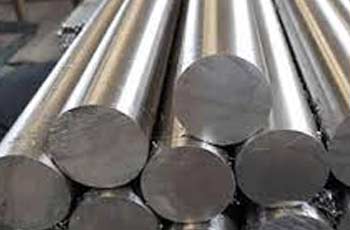

2507 super duplex round bar

2507 super duplex round bar

Super duplex 2507 continuous cast bars

Super duplex 2507 continuous cast bars

2507 rolled bars

2507 rolled bars

2507 cold rolled bars

2507 cold rolled bars

2507 stainless steel forged bars

2507 stainless steel forged bars

SAF 2507 super duplex stainless steel bright bars

SAF 2507 super duplex stainless steel bright bars

2507 super duplex stainless steel hot rolled bars

2507 super duplex stainless steel hot rolled bars

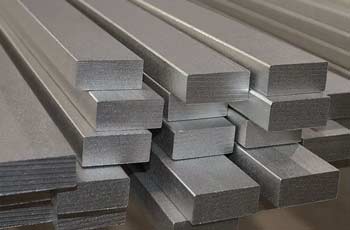

25cr super duplex rectangular bar

25cr super duplex rectangular bar

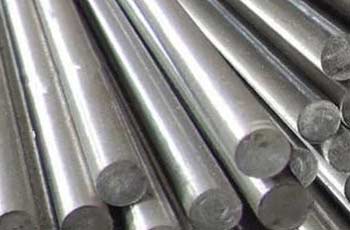

25cr duplex bright bar

25cr duplex bright bar

EN 1.4410 annealed bars

EN 1.4410 annealed bars

25cr duplex stainless steel shaft

25cr duplex stainless steel shaft

Super duplex 25cr billet

Super duplex 25cr billet

Super duplex 1.4410 bloom

Super duplex 1.4410 bloom

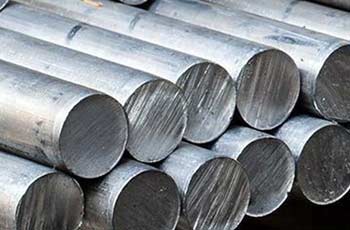

1.4410 super duplex forged round bar

1.4410 super duplex forged round bar

SDSS 2507 polished bar

SDSS 2507 polished bar

2507 duplex stainless steel forged bar

2507 duplex stainless steel forged bar

Equivalent standard of 2507 super duplex bar stock

Standard Super duplex 2507 bar
UNS S32750
EN/DIN X2CrNiMoN 25-7-4
AFNOR Z3CND25.07Az
BS(cast) CE3MN

25cr SDSS forged bar tolerances

Check super duplex 2507 rod metric diameter tolerances

Dia – mm 1 < 3 3 < 6 6 < 10 30 < 50 18 < 30 10 < 18 50 < 80 120 < 180 80 < 120 > 315 – 400 180 < 250 250 < 315 > 400 – 500 > 500 – 600
ISO h6 0.006 0.008 0.009 0.016 0.013 0.011 0.019 0.022
ISO h7 0.010 0.012 0.015 0.025 0.021 0.018 0.030 0.035
ISO h8 0.014 0.018 0.022 0.039 0.033 0.027 0.046 0.063 0.054 0.072
ISO h9 0.025 0.030 0.036 0.062 0.052 0.043 0.074 0.100 0.087 0.115 0.130
ISO h10 0.040 0.048 0.058 0.100 0.084 0.070 0.120 0.160 0.140 0.185 0.210
ISO h11 0.060 0.075 0.090 0.160 0.130 0.110 0.190 0.250 0.220 0.360 0.290 0.320 0.400 0.440
ISO h12 0.100 0.120 0.150 0.250 0.210 0.180 0.300 0.400 0.350 0.570 0.460 0.520 0.630 0.700

Corrosion resistance comparison of 2507 round bar

Grade CPT – Critical Pitting Temperature
°F
PREn
Alloy 2507 bar 185 42
2205 round bar 120 35
SS 316L round bar 64 24

Physical properties of duplex 2507 round bar

Density Magnetic Permeability (20°C) Young’s Modulus Specific Electrical Resistance, 20°C Specific Heat, 20°C Thermal conductivity, 20°C
7810 Kg/m3 33 199 kN/mm2 0.8a µΩ.m 475 J/kg.K 14.2 W/m.K

SAF 2507 polished bar mechanical properties

Tensile Strength 0.2% Proof Stress Reduction of area Hardness (Brinell) Elongation, 5.65√S0 Impact Strength (Room Temp) Impact Strength (-46°C)
800 N/mm2 550 N/mm2 45% <270 25% 80J Longitidinal & Transverse 45J (35 j min)

Chemical composition of SDSS 2507 cold drawn bar

Cr Mo Ni Cu C Mn N Si P S Fe
Max 26.00 5.00 8.00 0.50 0.03 1.20 0.32 0.80 0.035 0.020 Bal
Min 24.50 3.00 6.00 0.50 0.24 0.10

Super duplex 2507 round bar properties

Duplex 2507 stainless bright bar in exact sizes and save cost, SDSS 2507 rectangular bar contact verified manufacturers in Dubai

The size of super duplex 2507 rods ranges between 20 mm to more than 70 mm, their height ranges between 1m to 2m. The tolerances of 2507 super duplex stainless steel rod for diameter ranging between 20 mm to 35 mm is -0/+0.15 mm, 40 mm to 45 mm is -0/+0.16, 50 mm to 70 mm is -0/+0.19 mm, 70 mm to 95 mm is -0/+1.00 mm, 100 mm to 250 mm is -0/+1.5 mm.

You can calculate the weight of 2507 super duplex rod in weight per meter by multiplying both the diameters in mm with 0.00623. To calculate in weight per feet by multiplying both the diameters in mm with 0.0019.

Here are some tricks to identify trusted suppliers of 2507 round bar from India:

  • Thorough research about the background of the supplier
  • Quality certificates
  • Inspection Techniques
  • Manufacturing methods
  • Reviews of the clients previously served by the supplier.
Buy 2507 super duplex stainless steel rod at affordable prices from verified DIN 1.4410 super duplex square bar suppliers in UAE as per your needs

The duplex stainless steel 2507 alloy contains Chromium, Nickel, Molybdenum, Nitrogen, Carbon, and other trace elements. The super duplex 25cr bright bar has exceptional properties, like resistance against pitting, crevice, and stress-cracking corrosion. They have great fatigue resistance, tensile strength, thermal conductivity, and coefficient of expansion.

They perform well in chloride environments; hence are popular in the marine and seashore areas. They have dual microstructure of ferritic and austenitic stainless steel. The precision and surface finish of 2507 bright bars are outstanding due to their manufacturing procedure which is cold drawing technique in a cold reduction mill.

View EN 1.4410 stainless steel bars and 2507 stainless steel round bar corrosion resistance, high strength, and wear resistance in the Middle East and South Africa

Here are few points to negotiate EN 1.4410 square bar prices are:

  1. Always purchase super duplex bars directly from factory or manufacturer
  2. You must research about the base price of the material before negotiating
  3. Exchange stainless steel scrap to get more discount.
  4. Promise to buy more products from the same supplier
  5. Buy from countries having low shipping costs and taxes
  6. Opt for a cheaper mode of transport.

The PREN value of 1.4410 super duplex cold drawn bar is 41 which indicates full-proof corrosion resistance. The material provides resistance against following corrosions:

  1. Pitting and Crevice- The presence of Chromium, Molybdenum, and Nitrogen makes it highly resistant to pitting corrosion.
  2. Generalized- The high content of molybdenum and chromium allows the material to provide resistance against generalized corrosion attack.
  3. Stress Cracking- The material performs best in resisting stress cracking corrosion in chloride environments, like marine or seashore equipment.
  4. Intracrystalline- The dual microstructure and reduced carbon in the material helps against carbide or nitride precipitation preventing intracrystalline corrosion.
