Characteristics of Swage nipple
| Size in Ready Stock: | 1/8″-4″ |
|---|---|
| Custom Sizes Available in: | Up to 6 Inch |
| Pressure Class: | Class 3000 to Class 9000 |
| Standard: | ASME B16.11 & ASME B16.9 |
| Wall Thickness: | SCH40 to XS |
| Suitable For: | Oil, Chemical, Marine |
| Advantages: | Simple Usage |
| Connection Method: | Socket Weld, Thread |
| Origin of Raw Material: | Indian, Korean, Janpanese, European, UK, German |
| Threads Types: | BSPP, BSPT, NPT |
| MTC: | EN 10204/3.1B |
| RFQ: | support@pipingmaterial.ae |
Refer to ASME B16.11 concentric swage nipple dimensions, weight, and pressure rating
Size Range: 1/8″ ~ 4″
Manufacturing Process: Hot & Cold Forging, CNC Machined
Forging Method : Closed Die Forging and Open Die Forging
Testing : Hardness Test, Ultrasonic Testing, Proof Test
Surface Finish : Coated and Polished
Marking: Manufacture Name, Pressure Class, Heat No., Standard, Size, Grade
Machines: Stamping Machines, Beveling Machine, CNC Lath, Hydraulic Press,
Packaging: Custom Or Carton Box, Wooden Cases
Welding Types: SMAW, GMAW Welding, TIG, FCAW
Applicable Fluids: Water, Oil, Steam
Get Quote Directly from Swage Nipple suppliers in UAE
100% Tested Stainless Steel Swage Nipple with MTC EN 10204 3.1/3.2
Ready to Dispatch Stock of Swage Nipplee
- Certificate : ISO 9001
- Surface : Anti-rust Oil, Pickling
- Size : 1/8″-4″
- Wall thickness : SCH40 to XS
- Technology : Hot Press
- Mounting Hole Diameter : 0.25in
- Process : Forging + Machining
- Application : Connecting Pipelines
- Surface Treatment : Hot Galvanized
- Thread : BSPP, BSPT, NPT
- Usage : Merge Pipelines
- Connection : Socket weld, Threaded
- Application : Petroleum, Construction
- Function : Waterproof, Corrosion Resistant
- Place of Use : Industry, Gas Station, Refinery
- Temperature : -254°~800°
- Pressure : 2000lbs to 6000lbs
- Size : 1/8″-4″
- Pipe Features : Flexible, Chemical Resistant
- Certificate : ISO 9001
- Mounting Hole Diameter : 1/8-2 inch
- Temperature : -254°~800°
- Advantage : Easy installation
- Wall thickness : SCH40 to XS
- Total Length : 4.8 in
- Thread : BSPP, BSPT, NPT
- Height : 2 in
- Size : 1/8″~6″
- Connection : Welding
- Process : Forging + Machining
- Advantage : Easy installation
- Surface Treatment : Smooth
Sales Representative available to Provide Quick Quote
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Concentric Swage Nipplee Manufacturing Standard
| EN: | DIN: | ASME: |
|---|---|---|
| EN10253-1, | DIN2605, DIN2615 | ASME 16.11, MSS SP-79 |
| EN10253-2 | DIN2616,DIN28011 | MSS SP-95, 83, 95, 97 |
| – | DIN2617 | BS 379 |
Get the Swage Nipple Suppliers and Stockist in Abu Dhabi or Sharjah, Provides Dimension Chart for Customer Requirements.
Check Out Your Nearby Locations For Fastest Deliveries
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
Reducing Swage Nipplee Weight Chart
Check Swage Nipple Suppliers in UAE, Gives Accurate Weight Capacity.
| Swage Nipple Weight Chart | |||||||
|---|---|---|---|---|---|---|---|
| Size | Approx.Weight/kg | ||||||
| NPS | DN | SCH80 | XS | SCH40 | STD | SCH20 | SCH10S |
| 12 | 300 | 52.7 | 38.6 | 331.3 | 28.6 | 20.3 | 15.5 |
| 10 | 250 | 30.5 | 30.5 | 22.5 | 22.5 | 15.8 | 11.2 |
| 8 | 200 | 20.8 | 20.8 | 13.8 | 13.8 | 11 | 6.75 |
| 6 | 150 | 12.1 | 12.1 | 8.38 | 8.38 | 4.15 | |
| 5 | 125 | 8.6 | 8.6 | 6.15 | 6.15 | 3.21 | |
| 4 | 100 | 4.97 | 4.97 | 3.72 | 3.72 | 2.06 | |
| 31/2 | 90 | 3.51 | 3.51 | 2.7 | 2.7 | 1.65 | |
| 3 | 80 | 3.03 | 3.03 | 2.15 | 2.15 | 1.4 | |
| 21/2 | 65 | 1.84 | 1.84 | 1.48 | 1.48 | 1 | |
| 2 | 50 | 1.25 | 1.25 | 0.86 | 0.86 | 0.65 | |
| 11/2 | 40 | 0.55 | 0.55 | 0.45 | 0.45 | ||
| 11/4 | 32 | 0.41 | 0.41 | 0.33 | 0.33 | 0.35 | |
| 1 | 25 | 0.27 | 0.27 | 2 | 2 | 0.18 | |
| 3/4 | 20 | 0.14 | 0.14 | 0.11 | 0.11 | 0.1 | |
| 1/2 | 15 | 0.1 | 0.1 | 0.08 | 0.08 | 0.07 | |
| 3/8 | 10 | 0.06 | 0.06 | 0.05 | 0.05 | 0.04 | |
| 1/4 | 8 | 0.04 | 0.04 | 0.03 | 0.03 | 0.03 | |
Choose a verified stainless steel eccentric swage nipple supplier from the Middle East and Africa to purchase at the best price
Applications of Eccentric Swage Nipplee
Get Swage Nipple Suppliers in UAE, Offers Various Industrial Applications.
- Chemical
- Fire Protection
- Water Pipeline
- Power station
- Oil and Gas
- Noncritical Applications
See Where You Can Find Material Ex Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Test Certificates of ASME B16.11 Swage Nipplee
Find Globally Swage Nipple Distributer in Fujairah, Ras Al Khaimah or Umm Al Quwain, Offeres Test Certificates
Concentric Swage Nipple Socket Welde Size Chart
Find Swage Nipple Suppliers in UAE, Offers Outstanding Sizes for Nipple.
| Size | Length (mm) |
|---|---|
| 4" | 229 |
| 3" | – |
| 2.1/2" | 178 |
| 2" | 165 |
| 1.1/2" | 114 |
| 1" | 102 |
| 3/4" | 95 |
| 1/2" | 89 |
| 3/8" | 76 |
Obtain quotes from numerous reputable swage nipple threaded both ends and one end stockist in the UAE.

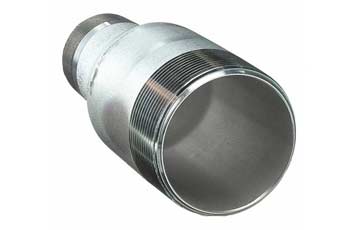

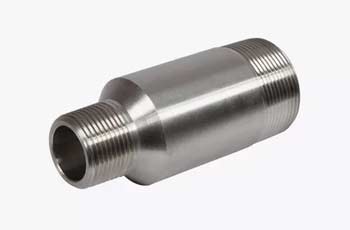

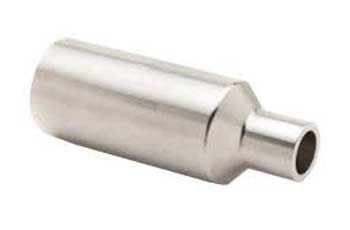

Concentric Swage Nipple

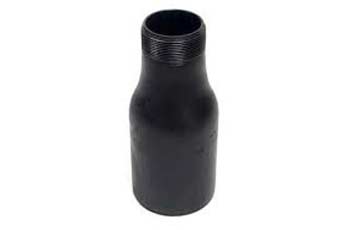

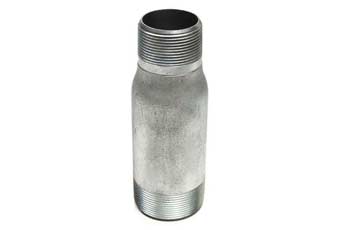

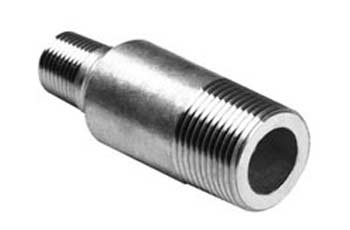

Threaded Swage Nipple

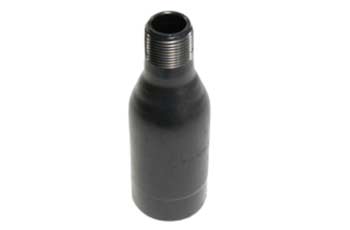

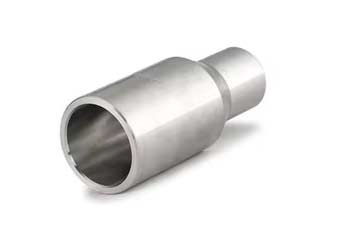

Eccentric Swage Nipple

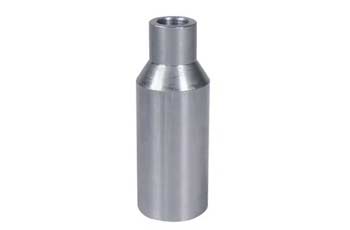

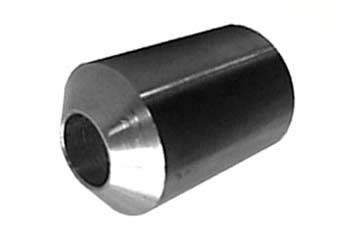

Socket Weld Swage Nipple
Swage Nipple Threaded Both Ends
Swage Nipple Threaded One End

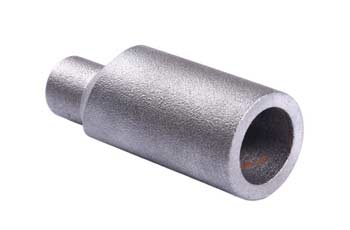

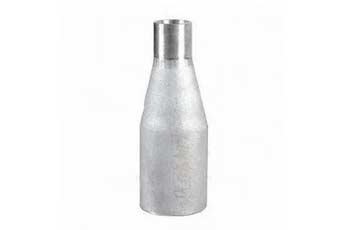

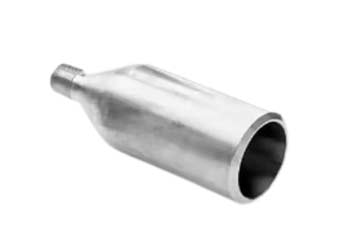

Plain End Swage Nipple

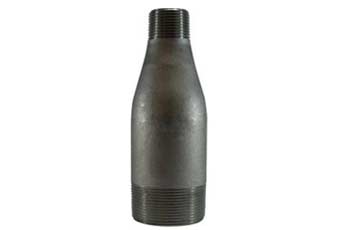

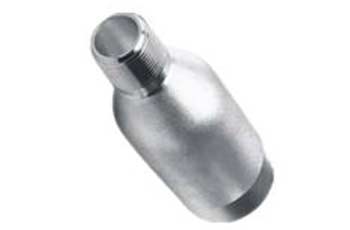

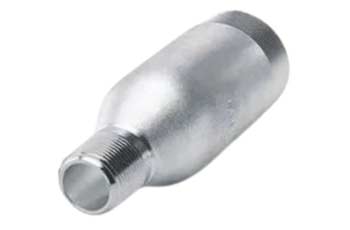

Reducing Swage Nipple
Zinc Plated Swage Nipple
Importers listed below provide tensile, ultrasonic test reports for zinc plated reducing swage nipple in Dubai
- Proof test
- Ultrasonic
- Hydrostatic Test
- Magnetic particle test
- Liquid penetrant test
- Positive Material Identification
Installation Guidelines For Reducing Swage Nipplee
Concentric Swage Nipplee Temperature Ratings
Check Swage Nipple Suppliers and Stockist in Dubai or Ajman, Gives Precise Temperature Ratings.
| Concentric Swage Nipple Temperature | |||||
|---|---|---|---|---|---|
| Temperature | Class | ||||
| 150 | 300 | ||||
| 2 1/2 – 3 inch. | 1 1/4 – 2 inch. | 1/4 – 1 inch. | |||
| (oC) | (oF) | ||||
| 288 | 550 | – | 300 | 300 | 300 |
| 260 | 500 | – | 385 | 450 | 510 |
| 232 | 450 | – | 475 | 600 | 725 |
| 204 | 400 | – | 560 | 750 | 935 |
| 177 | 350 | 150 | 650 | 900 | 1150 |
| 149 | 300 | 185 | 735 | 1050 | 1360 |
| 121 | 250 | 225 | 825 | 1200 | 1575 |
| 93 | 200 | 265 | 910 | 1350 | 1785 |
| -29 to 66 | -20 to 150 | 300 | 1000 | 1500 | 2000 |
Find a trustworthy distributor of carbon steel socket weld swage nipple for high-quality materials delivered on time in GCC countries.
Socket Weld Swage Nipplee Finishes
ASME B16.11 Swage Nipple Tolerance
| Overall Length (mm) | Nominal Pipe Size (inch) | Outside diameter at end | Wall Thickness (prior to threading or grooving) | |
|---|---|---|---|---|
| Other End Connection (mm) | Square Cut Ends (mm) | |||
| ± 3.0 | 3; to 4; | ± 1.50 | ± 0.80 | Not less than 87.5% of nominal wall thickness |
| ± 3.0 | 2; to 2-1/2; | + 1.50 – 0.80 |
± 0.80 | |
| ± 1.5 | 1/2; to 1-1/2; | + 1.50 – 0.80 |
+ 0.40 – 0.80 |
|
| ± 1.5 | 1/8; to 3/8; | ± 0.80 | + 0.40 – 0.80 |
|
Delivery Location and Time for Swage Nipple
| Country | Country Name | Delivery Time |
|---|---|---|
 |
United Arab Emirates | 5 Days |
 |
Belgium | 40 days |
 |
Morocco | 10 days |
 |
Nigeria | 30 days |
 |
Kuwait | 10 days |
 |
Qatar | 7 days |
 |
Saudi Arabia | 7 days |
 |
Netherlands | 5 Days |
 |
Egypt | 18 days |
 |
South Africa | 25-30 days |
