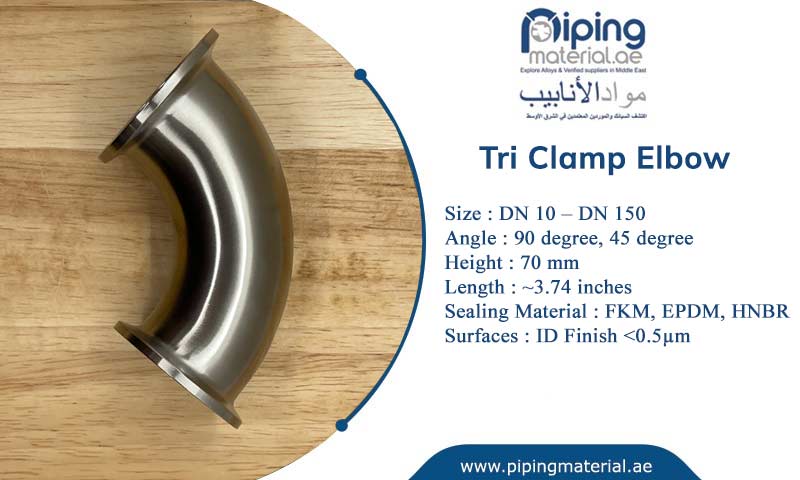

Tri-Clamp Elbow

Tri Clamp Elbow Highlights

Standard	ISO 1127
DIN Standards	DIN 11865 ASME BPE Standard DT-18 DIN 11851
Industry Standards	ASTM B912 ASME BPE SEMI F17, SEMI F19
Grades	SS 304, 316, 304L, 316L, 321, 347 etc.
Origin	American, Janpanese, European, Russian, Korean
HSN Code	73072900
Schedule	5 to XXS
Packaging	Tri-Wall Box Scored Cardboard Paper/Poly Sleeve Square Pack
Connection	Thread Welding Clamps
Specification	DIN, ISO IDF, SMS NPT BSP TRICLOVER
Welding Method	Laser Beam Welding Orbital Welding Plasma Arc Welding (PAW) Stick Welding (SMAW) TIG / GTAW welding
Types	Welded, Seamless, Fabricated
Certificates	3A Certified EN 10204-3.1 Certificate 3-A-63-03 100% Radiography Test Report Third Party Inspection Report

Find Verified Stainless Steel Sanitary Elbow Suppliers in UAE

Specification of Tri Clamp Elbow

Tri Clamp Elbow Sizes : 1/2 ”

Sanitary Elbow Fittings Thickness: 12 Swg, 14 Swg, 16 Swg, 18 Swg or Customizable

Tri Clover Elbow Fittings Seal Material: PTFE, EPDM, and Viton

Exterior Surface Finish: 32 Ra

Services: Custom Fabrication, Threading , Passivation and Electropolishing As Per ISO/SF5 Standards

Sanitary Tubing Elbow Testing: Hardness, Ultrasonic, Roughness Test

Finish: Mirror Polished (SF5), Electropolished (SF5), SF1 (2B mill), Bright Annealed, Mechanical Polished

Applications: Pharmaceutical, Food And Beverage, Personal Care And Dairy Industries etc.

Interior Surface Finish: 15 Ra

Types: Reducing elbow, 1.5 tri clamp elbow, 90 degree elbow, Sanitary tube elbow, 45 degree elbow, Sanitary pipe elbow

Buy Directly From Tri Clamp Elbow Suppliers in UAE and Get Datasheet

Process: Mandrel, Hot forming

Before you Buy Stainless Steel 304 Tri Clover Elbow in Dubai, Check SS Sanitary Pipe Elbow Manufacturing Origin and Key Benefits

Tri Clover Elbow Benefits

Hygiene & Sanitation
Easy Cleaning & Maintenance
Quick Assembly /Disassembly
Leak-Proof Performance
Durability & Safety
Versatility

Tri Clamp Elbow Types

Tri Clamp Reducing Elbow

1.5 Tri Clamp Elbow

Tri Clamp 90 Degree Elbow

Tri Clamp 45 Degree Elbow

Tri Clamp Long Radius Sanitary Elbow

Tri Clamp Short Radius Elbow

Weekly Shipment to Below Locations

Fujairah	Umm Al Quwain	Sharjah	Doha
Riyadh	Dubai	Muscat	Ras Al Khaimah
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

Looking for Long Sweep Sanitary Elbow Manufacturers? Get quotes from Audited Sanitary 90 Degree Elbow Importers in Middle East Countries

Technical Details of Tri Clamp Elbow

Sizes	Angle of Stainless steel tri-clamp elbows	Sanitary elbow fittings International Standards
DN 10 – DN 150	90 degree 45 degree	DIN 32676-C ASME BPE-BS 4825 DIN 11866-C Buy high quality sanitary elbow as per above specification from genuine tri clamp elbow suppliers in UAE
Types of tri clamp elbow	Surface finish & roughness average (Ra)	Types of tri clover elbow fittings
Metric 90° Elbows: Metric 90° Elbow – 304 Metric 90° Elbow – 316/L Metric 45° Elbows: Metric 45° Elbow – 316 SCH10 NB 90° LR Elbow: SCH10 NB 90° LR Elbow – 316/L SCH10 NB 90° LR Elbow – 304 SCH10 NB 45° LR Elbow: SCH10 NB 45° LR Elbow – 316/L SCH10 NB 45° LR Elbow – 304 SCH40 NB 45° LR Elbow: SCH40 NB 45° LR Elbow – 316/L SCH40 NB 45° LR Elbow – 304	ASME tri clover elbow : (Ra) of < 0.4 – 0.8 μ BS 4825 tri clamp 90 degree elbow : roughness average (Ra) of < 0.8 – 1.6 μ DIN 11850 sanitary tubing elbow: (Ra) of < 0.8 – 1.6 μ ISO 2037 sanitary pipe elbow : (Ra) of < 0.8 – 1.6 μ	tri clamp reducing elbow 1.5 tri clamp elbow Tri clamp 90 degree elbow Sanitary tube elbow Tri clamp 45 degree elbow Sanitary pipe elbow Long radius sanitary elbow Short radius elbow
Tri clamp 45 elbow MTC & testing certificates	Key Features	Sealing material
DIN EN 10204 3.1 test certificate Surface roughness test certificate 3.1/AD2000-W2 test certificate	Crevice-free welds Tight tolerances Smooth weld ends Easy-to-clean	FKM EPDM HNBR
Other trade name	DIN standard	Available material
SS hygienic tri clamp 90 degree elbow SS dairy long radius sanitary elbow Stainless steel sanitary tri clamp 45 degree elbow Pharmaceutical sanitary tube elbow ASME/ BPE sanitary pipe elbow	ASME BPE Standard DT-18 DIN 11865 DIN 11851	304 stainless steel Tri-Clamp Elbow (DIN 1.4301) 316L stainless steel Tri-Clamp Reducing Elbow (DIN 1.4404) 304L stainless steel Tri-Clamp Butt-Weld Elbow (DIN 1.4307)
Sanitary tubing elbow electropolishing specification	Sanitary 90 degree elbow surfaces	Stock availability
SF0 : µ-in / µm SF6 : 25 µ-in 0.64 µm SF1 : 20 µ-in 0.51 µm SF5 20 µ-in 0.51 µm SF2 : 25 µ-in 0.64 µm SF4 : 15 µ-in 0.38 µm SF3 : 30 µ-in 0.76 µm	OD Finish <0.8µm Polished Ra ≤ 1,6 µm (Not in contact with product) ID Finish <0.5µm	90° Tri-Clamp Elbow – 304/316 (2CMP) 90° Tri-Clamp x Butt-Weld Elbow – 304/316 (L2CM) 45º Tri-Clamp Elbow – 304/316 (2KMP) 45º Tri-Clamp x Butt-Weld Elbow – 304/316 (L2KM) 90° Tri-Clamp Reducing Elbow – 304/316 (2CMP-31MP)

Sales Agents in Following Locations

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Quickly Get Pricing from Genuine 316 Stainless Steel Sanitary Elbow Fittings Suppliers, Know More about 1.5 Tri Clamp Elbow Dimensions & disadvantages

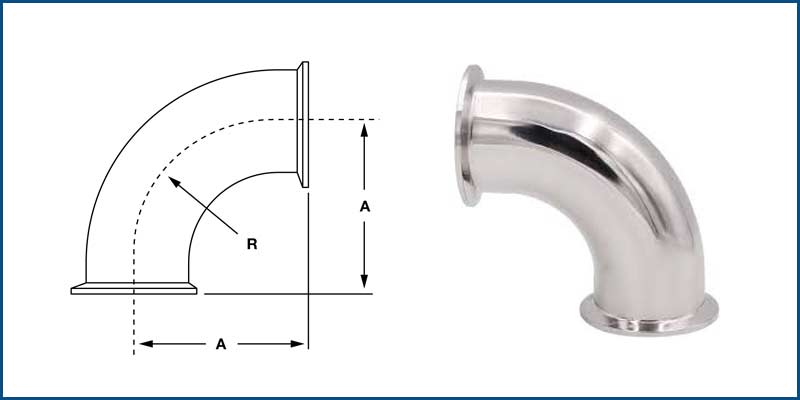

SS Sanitary Pipe 90° Elbow Dimensions

Size (Tube OD)	Dimensions
Size (Tube OD)	A	R
1 “	2.000	1.500
1-1/2″	2.750	2.250
2 “	3.500	3.000
1/2″	1.625	1.125
3/4″	1.625	1.125
2-1/2″	4.250	3.750
3 “	5.000	4.500
4 “	6.625	6.000
6 “	9.875	9.000
8 “	12.875	12.000

Locate Available Material from Stock

Region	City	Country
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Get Tri Clamp Reducing Elbow and Long Radius Sanitary Elbow with Machining and Finishing

Tri Clamp Reducing Elbow Value Added Services

Machining
Finishing
Cleaning & Passivation
Quality Inspection & Testing
Marking, Branding & Traceability
Packaging & Logistics Support

Stainless Steel Tri-clamp Elbows Equivalent

America	United Kingdom	Japan	Russia	North America	Europe	France	Russia
ASTM	BS	JIS	WERKSTOFF NR.	UNS	EN	AFNOR	GOST
SS 304	304S31	SUS 304	1.4301	S30400	X5CrNi18-10	Z7CN18‐09	08Х18Н10
SS 316	316S31 / 316S33	SUS 316	1.4401 / 1.4436	S31600	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	Z7CND17‐11‐02	–
SS 316L	316S11 / 316S13	SUS 316L	1.4404 / 1.4435	S31603	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	Z3CND17‐11‐02 / Z3CND18‐14‐03	03Ch17N14M3 / 03Ch17N14M2
SS 316H	316S51	–	–	S31609	–	–	–
SS 317	–	SUS 317	1.4449	S31700	X5CrNiMo1713	–	–
SS 304L	3304S11	SUS 304L	1.4306 / 1.4307	S30403	X2CrNi18-9 / X2CrNi19-11	Z3CN18‐10	03Х18Н11
SS 310	310S24	SUS 310	1.4841	S31000	X15CrNi25-20	–	20Ch25N20S2
SS 304H	–	–	1.4301	S30409	–	–	–
SS 310S	310S16	SUS 310S	1.4845	S31008	X8CrNi25-21	–	20Ch23N18
SS 321	–	SUS 321	1.4541	S32100	X6CrNiTi18-10	–	–
SS 317L	–	SUS 317L	1.4438	S31703	X2CrNiMo18-15-4	–	–
SS 347	–	SUS 347	1.4550	S34700	X6CrNiNb18-10	–	–
SS 321H	–	SUS 321H	1.4878	S32109	X12CrNiTi18-9	–	–
SS 347H	–	SUS 347H	1.4961	S34709	X6CrNiNb18-12	–	–
SS 410S	–	SUS410S	1.4516	S41008	X6CrNiTi12	–	–
SS 409	–	SUS409	1.4512	S40900	X2CrTi12	–	–
SS 904L	904S13	SUS 904L	1.4539	N08904	X1NiCrMoCu25-20-5	Z2 NCDU 25-20	STS 317J5L

Sanitary Elbow Fittings Chemical Composition

Grades	Chromium	Phosphorus	Silicon	Sulfur	Nickel	Manganese	Carbon
SS 304	18.00 20.00	0.04	0.075	0.03	8.00 11.00	2	0.08
SS 304H	18.00 20	0.04	0.75	0.03	8.00 11	2	0.04 0.1
SS 304L	18.00 20.00	0.04	0.75	0.03	8.00 13.00	2 .00	0.035
SS 316	16.00 18.00	0.040	0.75	0.030	11.00 4.00	2.00	008
SS 310	24.00 26	0.04	0.75	0.03	19.00 22	2	0.15
SS 416	12.00 14.00	0.066	1.00	0.15		1.25	0.15
SS 316L	16.00 18	0.04	0.75	0.03	10.00 15	2	0.035
SS 317	18.00 20	0.04	0.75	0.03	11.00 14	2	0.08
SS 316H	16.00 18.00	0040	0.75	0.030	11.00 14.00	I 2.00	0_04 0.10
SS 321	17.00 20	0.04	0.75	0.03	9.00 13	203	0.48
SS 347	17.00 20	0.04	0.75	0.03	7.00 13	200	0.08
21-6-9	19.00 21.5	60	1	0.03	5.50 7.5	8.00	0.04

Tri Clover Elbow Fittings Mechanical Properties

Grades	Yield Strength (MPa)	Tensile Strength (MPa)	Poisson’s Ratio	Elongation (%)	Modulus of Elasticity (GPa)	Hardness (HRB)
SS 304L	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 304H	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 310S	205 – 275	515 – 740	0.29	40 – 50	193	90 – 105
SS 310	205 – 275	515 – 740	0.29	40 – 50	193	90 – 105
SS 316L	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 446	205	520 – 720	0.28	40 – 50	190	85 – 95
SS 317	205	520 – 730	0.29	40 – 50	193	85 – 95
SS 321	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 347	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 316	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 316Ti	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 317L	205	520 – 730	0.29	40 – 50	193	85 – 95
SS 321H	205	520 – 720	0.29	40 – 50	193	85 – 95
SS 410	205	520 – 720	0.28	35 – 45	190	85 – 95
SS 904L	205	520 – 720	0.29	40 – 50	193	85 – 95

Stainless Steel 90° Tri-Clamp Elbow Price Comparison

Size	304 Stainless Steel Tri-Clamp Elbow (90°)	316L Stainless Steel Tri-Clamp Elbow (90°)
1″	US $22.19	US $23.36
1 1/2″	US $19.63	US $26.86
2″	US $30.14	US $34.11
2-1/2″	US $41.36	US $57.47
3″	US $47.19	US $64.48
4″	US $72.20	US $98.37
6″	US $294.79	US $335.04
8″	US $504.70	US $1,091.80
10″	US $1,596.50	US $2,472.00

Sanitary Elbow Fittings Applications

Established Tri Clamp Elbow Suppliers in UAE of reliable goods tailored for harsh industrial applications.

Food and Dairy Processing
Beverage and Brewery
Pharmaceutical and Biotech
Cosmetics and Personal Care
Chemical Processing
