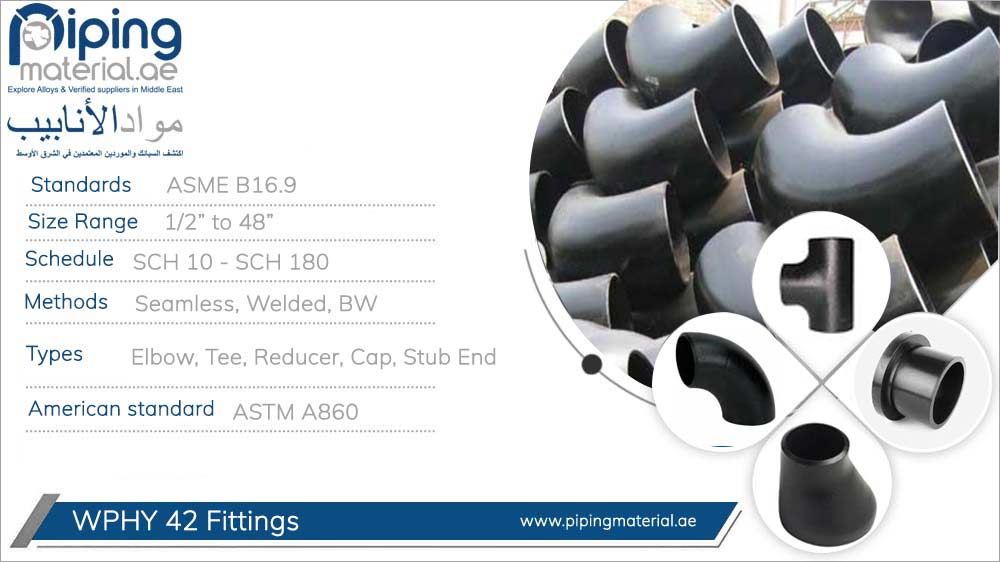

WPHY 42 Fittings

WPHY 42 Fittings

WPHY 42 is a specification for carbon-based stainless steel and it has elements like phosphorus, manganese, sulphur, etc., in its chemical composition. Trace amounts of elements like titanium, vanadium, aluminium, and niobium can also be found in the alloy of the WPHY 42 Material . Due to the chemical composition, the WPHY 42 Fittings come with enhanced mechanical properties. For example, the ASTM A860 WPHY 42 Pipe Bend and other fittings have excellent tensile strength and enhanced abilities to resist corrosion.

Verified Supplier

Verified manufacturers and stockists

available 10 cars

ASTM A860 WPHY 42 Pipe Bend and High Yield Weld Fittings suppliers in UAE

WPHY-42 Specification


WPHY 42 fittings specifications

Sizes MSS SP75 WPHY 42 strength Carbon Steel Grade 42 weld fittings life
  • Seamless fittings : 1/2″ – 24″ (BW)
  • Welded fittings : 24 – 96″ (BW)
  • Fabricated fittings : custom
  • Tensile stress: 515-690
  • Yield strength: 415
  • Last long for years
Coating WPHY 42 meaning Thickness tolerance
  • FBE coated WPHY 42 Material (in various thickness)
  • 3LPE
  • Zinc
  • PTFE
  • PE coating (2 & 3 layers)
  • Hot-dip galvanizing Grade WPHY 42 elbow
  • Anti rust light oiling
  • Varnished
  • Back painting
  • WP = wrought pipe
  • HY = High yield
  • 42 = 42 Ksi yield strength
  • +/-12.5%
  • custom
API 5L X42 butt welded joint meet the requirements American dimensional standard Manufacturerd from
  • MTC EN 10204 3.1/ 3.2 certificate
  • NACE TM-0284
  • HIC tested
  • IBR
  • NORSOK
  • Sour service
  • NACE MR0175
  • NACE MR0103
  • ISO 15156
  • SNT-TC-1A
  • ASTM A960/960M
  • ANSI/ ASME B16.25
  • ANSI/ ASME B16.9
  • ANSI/ ASME B16.28 (butt welding ends)
  • MSS-SP-43
  • MSS-SP 119
  • MSS-SP-83
  • MSS SP 75
  • MSS-SP-95 (Carbon Steel X42 belled end; elbow)
Manufacturerd from following seamless/ welded pipes

  • X42
  • X42M
  • X42Q
American standard & specification WPHY-42 Specification manufacturing technique Ends of High Strength Yield 42 buttweld fittings
  • ASTM A860

Buy directly from WPHY 42 Fittings manufacturers & suppliers, they offer TPI & 3.1 MTC, already supplied WPHY
42 Material to several countries like Saudi Arabia, USA, South Africa, Egypt & Oman

  • Hot forming
  • Mandrel
  • Plain Bevel
  • Compound Bevel
  • Bevelled
API 5L X42 butt welded joint schedule chart A860 WPHY 42 buttweld pipe fittings testing reqirements 7 manufacturing forms of High Strength Buttweld 42 butt welded fittings
  • SCH 160
  • STD
  • XH
  • XXH
  • SCH 10
  • SCH 20
  • SCH 40
  • SCH 60
  • SCH 80
  • HIC tested
  • Positive Material Identification (PMI)
  • Hyrdrostatic test (according to ASTM A960/ A960M)
  • Magnetic Particle Examination (For above Sch 80 WPHY 42 Material bevel ends)
  • Ultrasonic test

Easily get a quote from above listed WPHY 42 Fittings suppliers in UAE, factory price
& Germany/ Korean material

  • API 5L WPHY 42 cap
  • CS Grade 42 high yield stub end
  • Carbon Steel WPHY 42 pipe bend
  • CS WPHY Grade 42 cross
  • ASTM A860 42 elbow
  • Carbon WPHY 42 tee
  • Grade WPHY 42 reducer
ASTM A860 Gr WPHY 42 weldable pipe fittings bend radius High-Yield 42000 PSI butt welding fittings pipe bend angle MSS SP75 WPHY 42 butt weld fittings bending method
  • 5D
  • 6D
  • 8D
  • 10D
  • 3D
  • 4D
  • 180°
  • 15°
  • 22.5
  • 60°
  • 90°
  • 135°
  • 30°
  • 45°
  • Roll Bending
  • Mandrel Bending
  • Rotary Draw Bending
  • Hot Induction Bending
  • Ram-Type Bending
A860 Gr WPHY 42 welded pipe fittings testing & inspection ASTM A860 MSS SP 75 WPHY 42 pipe fittings DIN standards (Germany) API 5L X42 butt welded joint EN standards (Europe)
  • HIC tested
  • Positive Material Identification (PMI)
  • Magnetic Particle Examination (For above Sch 80 CS fittings bevel ends)
  • Ultrasonic test
  • 100% Radiography Tested
  • DIN 2605-1 (Elbow)
  • DIN 2605-2 (Elbow)
  • DIN 2616-2 (Concentric Reducer)
  • DIN 2616-1 (Eccentric Reducer)
  • DIN 2618 (saddle)
  • DIN 2615-1 (Tee)
  • DIN 2615-2 (Tee)
  • DIN 28011 (Torispherical heads)
  • DIN 2617 (Caps)
  • EN 10253-2
JIS standard
(Japan)
GOST standard (Russia) Used in conveying
  • JIS B2313
  • JIS B2312
  • GOST 17375
  • GOST 17376
  • GOST 17378
  • GOST 17375 (induction elbow)
  • GOST 17379
  • Gas
  • Water
  • Air
  • Steam
  • Oil
API 5L X42 butt welded joint marking Packaging
  • Grade
  • Heat number
  • Size
  • Dimensional standard – ASME B16.9 / MSS SP 75
  • Manufacturers name
  • Wooden Cases
  • Carton Box
  • Custom as per buyer choice
  • Wooden Pallet

Carbon Steel Grade 42 reducing tee and WPHY 42 Material in Buttweld Seamless/ Welded condition

What are High Yield Weld Fittings?

The High Yield Weld Fittings are known for delivering great performances and they are manufactured for meeting the demands. The high yield WPHY 42 Elbow is manufactured from steel with a carbon content of 0.05% to 2.1% by weight. The more the carbon content, the harder and more durable the A860 Gr WPHY 42 End Cap can become through heating.

ASTM A860 WPHY 42 Fittings Price List

90 Degree Elbow, Short Radius, STD, ASME B16.9
Size Price in USD
1 in x 1 in $68.50
2 in x 2 in $99.18
1-1/4 in x 1-1/4 in $68.50
3 in x 3 in $185.61

Types of WPHY 42 elbow

Astm A860 WPHY 42 45 Deg Elbow

ASTM A860 WPHY 42 45 Deg Elbow

ASTM A860 High Yield 90 Deg Elbow

ASTM A860 High Yield 90 Deg Elbow

WPHY 42 Buttweld 180 Deg Elbow

WPHY 42 Buttweld 180 Deg Elbow

WPHY 42 Carbon Steel Long Radius Elbow

WPHY 42 Carbon Steel Long Radius Elbow

ASTM A860 WPHY 42 Short Radius Elbow

ASTM A860 WPHY 42 Short Radius Elbow

High-yield 1D Elbow

High-yield 1D Elbow

Mss Sp75 Wphy 42 3D Elbow

Mss Sp75 Wphy 42 3D Elbow

A860 WPHY 42 5D Elbow

A860 WPHY 42 5D Elbow

Carbon Steel 42 Reducing Elbow

Carbon Steel 42 Reducing Elbow

Types of A860 WPHY 42 buttweld elbow CS Grade 42 high yield elbow angle direction & degrees
  • 1d elbow
  • 1.5d elbow
  • 2d elbow
  • 3d elbow
  • 5d elbow
  • 8d elbow
  • reducing elbow
  • 22.5 degree
  • 30°
  • 60°
  • 120°
  • 45° LR/ SR
  • 90° LR/ SR
  • 180° return bend/ elbow (LR/ SR)

Contact above verified WPHY 42 fittings manufacturers & stockists for tested material

Types of ASTM A860 WPHY 42 tee

Grade Wphy 42 Split Tee

Grade Wphy 42 Split Tee

Mss Sp75 Wphy 42 Straight Tee

Mss Sp75 Wphy 42 Straight Tee

A860 MSS SP 75 WPHY 42 Barred Tee

A860 MSS SP 75 WPHY 42 Barred Tee

WPHY 42 Reducing Tee

WPHY 42 Reducing Tee

High Strength 42 Equal Tee

High Strength 42 Equal Tee

WPHY 42 Lateral Tee

WPHY 42 Lateral Tee

  • Carbon Steel API 5L X42 barred tee
  • ASTM A860 42 lateral tee
  • MSS SP-75 42 Y tee
  • Grade WPHY 42 straight tees
  • Carbon Steel API 5L X42 reducing outlet tees
  • MSS SP75 WPHY 42 swept tee
  • A860 MSS SP 75 WPHY 42 buttweld tee
  • Carbon Steel Grade 42 reducing tee
  • A860 MSS SP 75 WPHY 42 equal tee
  • High Strength WPHY 42 saddle tee

Types of MSS SP75 WPHY 42 reducer

WPHY 42 Buttweld Concentric Reducer

WPHY 42 Buttweld Concentric Reducer

A860 High Yield Seamless Eccentric Reducer

A860 High Yield Seamless Eccentric Reducer

Other types of ASTM A860 WPHY 42 material

ASME SA860 WPHY 42 Reducing Cross

ASME SA860 WPHY 42 Reducing Cross

Mss Sp75 Wphy 42 Stub End

Mss Sp75 Wphy 42 Stub End

WPHY 42 Carbon Steel End Cap

WPHY 42 Carbon Steel End Cap

SA860 WPHY 42 Pipe Bend

SA860 WPHY 42 Pipe Bend

WPHY 42 pipe bend
  • Long radius bend
  • Short radius bend
  • Piggable bend
  • Hot induction bend
  • Seamless bend
  • Welded bends
  • Return bend
  • J bend
  • Mitered pipe bend
  • 2.5d pipe bend
  • 3d pipe bend
  • 5d pipe bend
  • 10d pipe bend
  • 22d pipe bend
  • L bend
  • MSS SP-75 42 lap joint stub end
  • ASTM A860 42 collar
  • MSS SP75 WPHY 42 short stub end
  • API 5L WPHY 42 butt welded hemi-head pipe cap
  • Carbon WPHY 42 long stub end
  • MSS SP-75 42 straight crosses
  • ASTM A860 42 reducing outlet crosses
  • Carbon WPHY 42 equal cross
  • Unequal cross (reducing)
  • Eccentric swage nipple (reducing)
  • Carbon WPHY 42 concentric swage nipple

Hardness Requirements For WPHY 42 Fittings


Hardness Requirements For WPHY 42 Fittings

Types of WPHY 42 Elbow based on Direction Angle

  • As Per fluid flow direction of the pipe, buttweld elbow can be split into different degrees, like a as 45/90/180 deg
  • Also there are 60 & 120 deg elbow for some special pipelines
  • 45/60/90/120/180 deg deg is just an presentation of the angle by which the fluid flow is going to change after flowing through the said elbow.
Types of WPHY 42 Elbow based on Direction Angle

Non-Destructive Carbon Steel 42 Fittings Testing

Ultrasonic Testing

Ultrasonic Testing

Eddy-Current Testing

Eddy-Current Testing

Hydrostatic Testing

Hydrostatic Testing

Magnetic Particle Testing

Magnetic Particle Testing

Radiographic (X-Ray) Testing

Radiographic (X-Ray) Testing

Dye-Penetrant Test

Dye-Penetrant Test

Standards Used To Check Dimensions Of MSS SP75 WPHY 42 Tee

  • For WP (Wrought Product) Dimension is covered in
  • ANSI/ASME B16.9 standard for Factory made Butt welding Fittings for size (Normal Pipe Size) 1⁄₂” to (Normal Pipe Size) 48 Inch and
  • ANSI/ASME B16.28 standard for Wrought Butt Welding SR Elbow and Returns for size (Normal Pipe Size) 1⁄₂” to NPS 24 Inch

ASTM A860 WPHY 42 stub end specification

Standard Schedule WPHY 42 stub end Installed with
ASME B16.9
  • Schedule XS
  • Schedule STD
butt weld Lap Joint flange
MSS SP-43
  • Schedule 10S
  • Schedule 5S
Type A Lap Joint flange
MSS SP-43
  • Schedule 10S
  • Schedule 5S
Type B Slip On flange

MSS SP75 WPHY 42 fittings chemical composition

Grade Cr Mo Cu Ti V Mn P S Si Ni Cb Al
A860 WPHY 42 0.5 0.3 0.25 0.35 0.05 0.2 1.00-1.45 0.03 0.01 0.15-0.40 0.1 0.04

ASTM A860 WPHY 42 fittings chemical composition

WPHY 42 Fittings mechanical properties

Element Elongation Tensile Strength Yield Strength (0.2%Offset)
Grade WPHY 42 28% 515-690 415

ASTM A860 gr WPHY 42 fittings mechanical properties

Equivalent of A860 WPHY 42

Standard USA
Seamless / welded pipe
Specification European standard EN DIN
Germany
Flange Welded fittings
API 5L
  • X42
  • X42M
  • X42Q
ISO 3183 L290NB 1.0484 StE290.7 ASTM A694 F42 ASTM A860 WPHY 65

A860 WPHY 42 long radius and short radius elbow in SCH.10/ 10S, 20, 40/ 40S, 80. Be sure to compare different verified and genuine suppliers in Dubai

Elbow and tee are the most common pipe fitting that helps to change the direction of the pipe run. However, the ASTM A860 Grade WPHY 42 Elbow is used to establish a connection at the bend of the pipeline, whereas tee is used at the branch pipe of the main pipeline.
Also, the turning radius of A860 WPHY 42 long radius and short radius elbow is between one to two times the nominal diameter of the pipe. Whereas, for Carbon Steel Grade 42 reducing tee , it has an immediate 90 degree turn.

ASTM A860 Gr WPHY 42 Material and WPHY 42 Elbow Bevelled ends as per ASME B16.25/ B16.9

The primary advantages of ASTM A860 MSS SP 75 WPHY 42 Reducer are enhanced resistance to corrosion, durability and sturdiness.

ASTM A860 MSS SP 75 WPHY 42 Reducer and A860 Gr WPHY 42 End Cap provides Dual Certified & MTC EN 10204 3.1 in Middle East
Manufacturing Standards : DIN2615/ MSS-SP-75/ ASME B16.9/ JIS B2312
O.D. : ASME B16.9 (1/2″ to 14 Inch), MSS-SP-75 (12″ to 48 Inch)
Wall Thickness : SCH 10, SCH 40, SCH 160, SCH 180
Surface Coatings : Black Painted, Epoxy Coated, Galvanized
Types : All Types Of Buttweld Fittings
Manufacturing Productivity : 1000 ton per month
Supply Ability : 800 Ton Per Month
