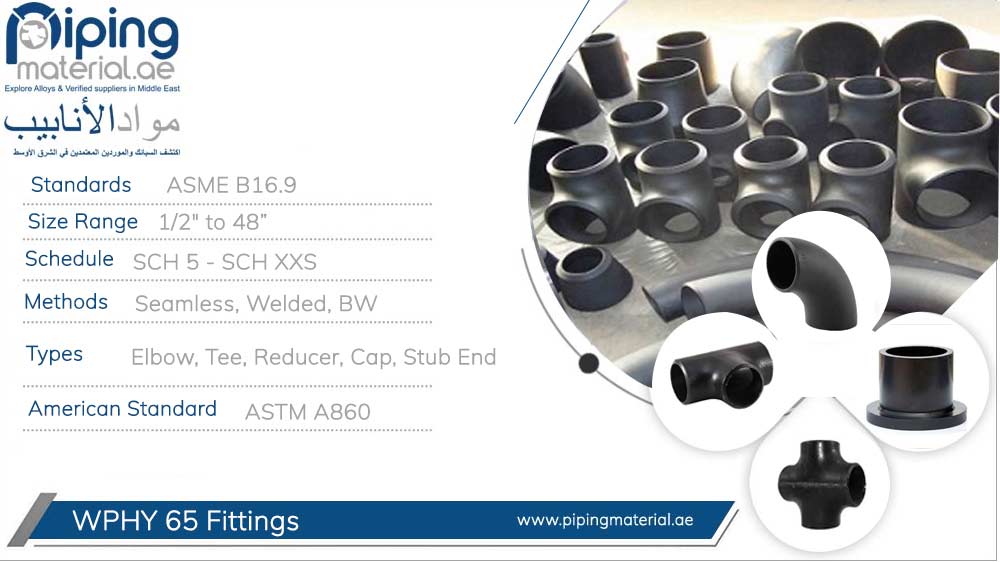

WPHY 65 Fittings

WPHY 65 Fittings

The ASTM A860 WPHY 65 material can be described as wrought carbon steel that has elements like silicon, sulphur, etc., in its chemical composition. Due to its composition, the WPHY 65 Fittings have great mechanical properties like high strength.
Fittings made with the WPHY 65 Material are used in various applications like sour services, petrochemical, oil and gas, and various other industries. There are different types of WPHY 65 Buttweld Fittings , which are used for a wide range of purposes, like:

  • The ASTM A860 Gr WPHY 65 End Cap helps to seal the end of a pipe.
  • The ASTM A860 MSS SP 75 WPHY 65 Pipe Bend helps the piping system minimize the changes in pressure
  • The A860 Grade WPHY 65 Return bends help in preventing sedimentation and mineral deposit accumulation.
  • The A860 MSS SP 75 WPHY 65 Stub End helps to reduce the weight of the high-grade material and as a result, saves cost.

Verified Supplier

Verified manufacturers and stockists

available 10 cars

MSS SP75 WPHY 65 Elbow and ASTM A860 Gr WPHY 65 End Cap suppliers in UAE

ASTM A860 WPHY 65 Specification


wphy 65 fittings specifications

Sizes API 5L X65 butt welded joint strength WPHY 65 material life
  • Seamless fittings : 1/2″ – 24″ (BW)
  • Welded fittings : 24 – 96″ (BW)
  • Fabricated fittings : custom
  • Tensile stress: 515-690
  • Yield strength: 415
  • For many years
A860 WPHY 65 buttweld pipe fittings coating WPHY 65 meaning ASTM A860 WPHY 65 BW fittings thickness tolerance
  • Anti rust light oiling
  • FBE coated Grade WPHY 65 (in various thickness)
  • PE coating (2 & 3 layers)
  • Hot-dip galvanizing Grade WPHY 65 elbow
  • Varnished
  • Back painting
  • 3LPE
  • Zinc
  • PTFE
  • WP = wrought pipe
  • HY = High yield
  • 65 = 65 Ksi yield strength
  • +/-12.5%
  • custom
MSS SP75 WPHY 65 butt weld fittings meet the requirements American dimensional standard Manufacturerd from
  • HIC tested
  • IBR
  • NORSOK
  • NACE MR0175
  • NACE MR0103
  • ISO 15156
  • NACE TM-0284
  • MTC EN 10204 3.1/ 3.2 certificate
  • Sour service
  • SNT-TC-1A
  • ASTM A960/960M
  • ANSI/ ASME B16.28
  • ANSI/ ASME B16.9
  • ANSI/ ASME B16.25 (butt welding ends)
  • MSS-SP-83
  • MSS-SP-95
  • MSS-SP-43
  • MSS SP 75
  • MSS-SP 119 (WPHY Grade 65 belled end elbow)
Manufacturerd from following seamless/ welded pipes

  • X65
  • X65M
  • X65Q
American standard & specification Carbon Steel Grade 65 weld fittings manufacturing technique Ends of Carbon Steel X65 buttweld fittings
  • ASTM A860

All above WPHY 65 Fittings suppliers are verified & exports WPHY 65 material with MTC 3.1 to middle east, USA, South Africa, Egypt & Oman

  • Mandrel
  • Hot forming
  • Bevelled
  • Plain Bevel
  • Compound Bevel
High Yield 65 seamless pipe fittings schedule chart API 5L X65 butt welded joint testing reqirements 7 manufacturing forms of Carbon Steel Grade 65 butt welded fittings
  • STD
  • XH
  • XXH
  • SCH 40
  • SCH 60
  • SCH 80
  • SCH 10
  • SCH 20
  • SCH 160
  • HIC tested
  • Positive Material Identification (PMI)
  • Hyrdrostatic test (according to ASTM A960/ A960M)
  • Magnetic Particle Examination (For above Sch 80 A860 WPHY 65 material bevel ends)
  • Ultrasonic test

Easily get a quote from above listed WPHY 65 Fittings suppliers in UAE, factory price & high quality
European/ Korean material

  • Carbon Steel X65 cap
  • High Yield 65 cross
  • High Yield 65 elbow
  • Carbon Steel API 5L X65 tee
  • API 5L WPHY 65 stub end
  • CS WPHY Grade 65 pipe bend
  • MSS SP75 WPHY 65 reducer
A860 WPHY 65 material bend radius Carbon Steel API 5L X65 pipe bend angle ASTM A860 MSS SP 75 WPHY 65 pipe fittings bending method
  • 5D
  • 6D
  • 8D
  • 10D
  • 3D
  • 4D
  • 30°
  • 45°
  • 180°
  • 15°
  • 60°
  • 90°
  • 135°
  • 22.5
  • Roll Bending
  • Mandrel Bending
  • Rotary Draw Bending
  • Hot Induction Bending
  • Ram-Type Bending
MSS SP75 WPHY 65 butt weld fittings testing & inspection ASTM A860 WPHY Grade 65 welded fittings DIN standards (Germany) A860 Gr WPHY 65 welded pipe fittings EN standards (Europe)
  • Ultrasonic test
  • HIC tested
  • Positive Material Identification (PMI)
  • 100% Radiography Tested
  • Magnetic Particle Examination (For above Sch 80 CS fittings bevel ends)
  • DIN 2618 (saddle)
  • DIN 2615-1 (Tee)
  • DIN 2615-2 (Tee)
  • DIN 28011 (Torispherical heads)
  • DIN 2617 (Caps)
  • DIN 2605-1 (Elbow)
  • DIN 2605-2 (Elbow)
  • DIN 2616-2 (Concentric Reducer)
  • DIN 2616-1 (Eccentric Reducer)
  • EN 10253-2
High Yield 65 seamless pipe fittings JIS standard
(Japan)
GOST standard (Russia) Used in conveying
  • JIS B2313
  • JIS B2312
  • GOST 17375 (induction elbow)
  • GOST 17376
  • GOST 17378
  • GOST 17379
  • GOST 17375
  • Air
  • Steam
  • Gas
  • Water
  • Oil
API 5L X65 butt welded joint marking High-Yield WPHY 65 butt welded fittings packaging
  • Size
  • Dimensional standard – ASME B16.9 / MSS SP 75
  • Manufacturers name
  • Grade
  • Heat number
  • Carton Box
  • Custom as per buyer choice
  • Wooden Cases
  • Wooden Pallet

Get connected with trusted and genuine WPHY 65 Material suppliers, A860 WPHY 65 concentric reducers and WPHY 65 reducing tee in BW Seamless/ Welded condition

WPHY 65 Fittings Price List

45 Deg elbow
Wall Thickness Size Type Price
USD/ Pcs
0.147″ 1/2 Welded US $30.63
0.154″ 3/4 Seamless US $68.43
0.179″ 1 Seamless US $31.50
0.191″ 1 1/4 Seamless US $27.53
0.2″ 1 1/2 Seamless US $27.76

Types of A860 WPHY 65 elbow

Astm A860 CS 65 45 Deg Elbow

Astm A860 CS 65 45 Deg Elbow

ASTM A860 High Yield 65 90 Deg Elbow

ASTM A860 High Yield 65 90 Deg Elbow

WPHY 65 Buttweld 180 Deg Elbow

WPHY 65 Buttweld 180 Deg Elbow

Carbon Steel 65 Long Radius Elbow

Carbon Steel 65 Long Radius Elbow

ASTM A860 WPHY 65 Short Radius Elbow

ASTM A860 WPHY 65 Short Radius Elbow

High-yield 65 1D Elbow

High-yield 65 1D Elbow

Mss Sp75 Wphy 65 3D Elbow

Mss Sp75 Wphy 65 3D Elbow

A860 High-yield 65 5D Elbow

A860 High-yield 65 5D Elbow

Carbon Steel 65 Reducing Elbow

Carbon Steel 65 Reducing Elbow

Types of MSS SP75 WPHY 65 buttweld elbow A860 WPHY 65 elbow angle direction & degrees
  • 1d elbow
  • 1.5d elbow
  • 2d elbow
  • 3d elbow
  • 5d elbow
  • 8d elbow
  • reducing elbow
  • 22.5 degree
  • 30°
  • 60°
  • 120°
  • 45° LR/ SR
  • 90° LR/ SR
  • 180° return bend/ elbow (LR/ SR)

Contact above WPHY 65 Fittings suppliers & stockists for large diameter welded elbow

Types of WPHY 65 tee

Grade Wphy 65 Split Tee

Grade Wphy 65 Split Tee

Mss Sp75 Wphy 65 Straight Tee

Mss Sp75 Wphy 65 Straight Tee

A860 MSS SP 75 WPHY 65 Barred Tee

A860 MSS SP 75 WPHY 65 Barred Tee

CS 65 Reducing Tee

CS 65 Reducing Tee

High Strength 65 Equal Tee

High Strength 65 Equal Tee

WPHY 65 Lateral Tee

WPHY 65 Lateral Tee

  • Carbon Steel Grade 65 reducing outlet tees
  • A860 WPHY 65 reducing tee
  • ASTM A860 65 barred tee
  • WPHY Grade 65 lateral tee
  • Grade WPHY 65 Y tee
  • MSS SP-75 Gr WPHY 65 straight tees
  • A860 MSS SP 75 WPHY 65 equal tee
  • ASTM A234 WPHY 65 swept tee
  • MSS SP-75 65 saddle tee
  • API 5L X65 buttweld tee

Types of ASTM A860 WPHY 65 reducer

WPHY 65 Buttweld Concentric Reducer

WPHY 65 Buttweld Concentric Reducer

A860 High Yield 65 Seamless Eccentric Reducer

A860 High Yield 65 Seamless Eccentric Reducer

Other types of MSS SP75 WPHY 65 material

ASME SA860 WPHY 65 Reducing Cross

ASME SA860 WPHY 65 Reducing Cross

Mss Sp75 Wphy 65 Stub End

Mss Sp75 Wphy 65 Stub End

Carbon Steel 65 End Cap

Carbon Steel 65 End Cap

SA860 Carbon 65 Pipe Bend

SA860 Carbon 65 Pipe Bend

MSS SP75 WPHY 65 bend Types dimensions & standard
  • Seamless bend
  • Long radius bend
  • Short radius bend
  • Return bend
  • Hot induction bend
  • Piggable bend
  • Welded bends
  • J bend
  • 2.5d pipe bend
  • Mitered pipe bend
  • 10d pipe bend
  • 3d pipe bend
  • 22d pipe bend
  • 5d pipe bend
  • L bend
  • ASME B16.49
  • ASME B16.9
  • OD 1/2” to 60”
  • DN15 – DN 1500
  • Carbon Steel Grade 65 eccentric swage nipple (reducing)
  • A860 MSS SP 75 WPHY 65 concentric swage nipple
  • API 5L X65 lap joint stub end
  • ASTM A234 WPHY 65 butt welded hemi-head pipe cap
  • Carbon Steel Grade 65 collar
  • MSS SP-75 65 short stub end
  • A860 MSS SP 75 WPHY 65 long stub end
  • ASTM A234 WPHY 65 straight crosses
  • A860 MSS SP 75 WPHY 65 reducing outlet crosses
  • API 5L X65 equal cross
  • Carbon Steel Grade 65 unequal cross (reducing)

Carbon Steel WPHY 65 stub end specification

CS WPHY 65 stub end standard API 5LWPHY Gr 65 stub end schedule Type of CS Grade 65 High Yield stub end Installed with
MSS SP-43
  • Schedule 5S
  • Schedule 10S
Type A Lap Joint flange
ASME B16.9
  • Schedule STD
  • Schedule XS
butt weld Lap Joint flange
MSS SP-43
  • Schedule 5S
  • Schedule 10S
Type B Slip On flange

WPHY 65 Chemical composition

Grade C Mn Mo Cu Ti V Cb S P Si Ni Cr
WPHY 65 0.2 1.00-1.45 0.25 0.35 0.05 0.1 0.06 0.03 0.01 0.15-0.40 0.5 0.3

Wphy 65 pipe bend chemical composition

ASTM A860 WPHY 65 mechanical properties

Element Elongation Tensile Strength Yield Strength (0.2%Offset)
A860 WPHY 65 0.28 515-690 415

Wphy 65 buttweld fittings mechanical properties

Equivalent of ASTM A860 WPHY 65 fittings

Standard Seamless / welded pipe Specification European standard EN DIN
Germany
Flange Welded fittings
API 5L ISO 3183 L450 L450MB 1.8975 StE445.7 ASTM A694 F65 ASTM A860 WPHY 65

How to choose the best WPHY 65 Buttweld Fittings supplier in Middle East?


How to choose the Best WPHY 65 Buttweld Fittings Supplier In Middle East

Difference between MSS SP75 WPHY 65 Seamless Elbow and Welded Elbow

The seamless ASTM A860 WPHY 65 long radius elbow is made of seamless pipes through the process of hot pushing or extrusion. There are no welds present in these elbows. The A860 Gr WPHY 65 Buttweld Elbow is made of welded pipes in the same process as the seamless variants.

Referred MSS SP 75 WPHY 65 Elbow Standards and Documents

WPHY65 equal tee and Buttweld Elbow in Schedule 10/ 10S, 20, 40/ 40S, 80/ 80S, Buy ASTM A860 WPHY 65 long radius elbow from PED 97/23/EC approved suppliers at best price in Dubai

ASTM Standards

  • A370: mechnical properties Test methods (Steel)
  • A860: Specifications for common requirements for a860 wphy 65 pipe fittings
  • A1058: mechanical testing of steel products-metric (Test methods)

ASME Standards

  • ASME B16.9: Factory-made wrought butt welding fittings
  • Section VIII Division 1 of Pressure vessel steel
  • Section IX

What is High Yield Carbon Steel 65 Fittings’ hardness test?

WPHY 65 Buttweld Fittings and ASTM A860 MSS SP 75 WPHY 65 Pipe Bend as per MSS SP-43, ASME B16.9 & B16.25

High Yield Carbon Steel 65 Fittings hardness test

A860 Grade WPHY 65 Return bends and Stub End with radiographic (RX/RT) test

The WPHY65 equal tee can be used as a branch with the same diameter as the run pipe. The MSS SP75 WPHY 65 reducing tee is used as a branch that has smaller diameter compared to the run pipe. The saddle tee is used for creating a tee fitting for a section of a given rigid PVC pipe and the ASTM A860 Grade WPHY 65 lateral tee comes with two outlets, and one of them is connected at 90 degrees to the main line.

Material Testing And Documentation

  • Hardness Test
  • Flaring Test
  • Mechanical Testing Such as Tensile of Area
  • Micro and MacroTest
  • Chemical Analysis
  • Spectro Analysis
  • Pitting Resistance Test
  • Raw Material Test Reports
  • Fumigation Certificates
  • Heat Treatment Charts
  • Material Traceability Records
  • Packing List including weight, number of boxes
  • Quality Assurance Plan (QAP)
  • Guarantee Letter
