ZERON 100 Bolts Overview
| Grade | ZERON 100 Bolts |
|---|---|
| Manufacturing Standard | ANSI B1.1, ASME B18.2.1, ASME B18.6.3, GB5783, IS:1364, BS 3692, UNI 5737 |
| Threads Specification | UNC, UNJF-3A, UNF-3B, UNF, 8UN, NPT, UNS, NPTF, BSF, UNEF, BSW, Metric Fine, Metric Course |
| DIN Standard | DIN 931, DIN 934, DIN 912, DIN 933, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 913, DIN 7985, DIN 7982 |
| ISO Standard | ISO 4017, ISO 4033, ISO 4032, ISO 4014, ISO 7380 |
| Standard Sizes (mm) | M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M27, M30, M36 |
Super duplex zeron 100 fasteners suppliers in UAE, view its equivalent and head size
ZERON 100 Bolts Specifications
Metric Sizes : M2 – M30, 3/6″ – 2″
Heads : Round, Square, Hex Head, Hex Flange, Flat, Triangular, T-head
Makes : TVS, Fischer, Sundaram, UNBRAKO, BOLTMASTER, LPS, PFL, DFL, BOSSARD, VIF
ZERON 100 Fasteners Types : Nuts, Screws, Washers, Hex Bolts
Buy Directly from ZERON 100 Bolts suppliers in UAE
100% Tested ZERON 100 Bolts with MTC EN 10204/3.1
Surface Finishes for Zeron 100 Bolts
- Black Oxided
- Cadmium Finish
- Teflon/ PTFE
- Nickel Plate
- Hot Dip Galvanize
- Yellow & Clear Zinc Plated
- Black Finished
Storage Sites of Partner Suppliers
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Zeron 100X hex nut supplier in Dubai, available in custom size range, check zeron 100 FG screw size and corrosion resistance

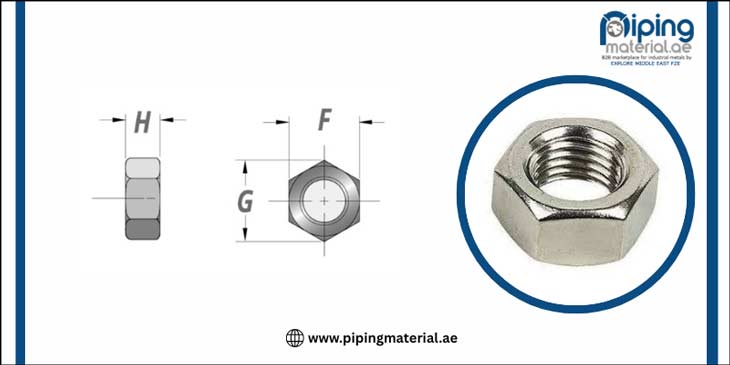

Zeron 100 Nuts Dimension Chart
| Nominal Thread Diameter | Width Across Corners (G) | Width Across Flats (F) | Thickness of Hex Nuts (H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Basic | Min. | Max. | Basic | Min. | Max. | ||
| 0.2500 | 1/4 | .488 | .505 | 7/16 | .428 | .438 | 7/32 | 0.212 | 0.226 |
| 0.3125 | 5/16 | .557 | .577 | 1/2 | .489 | .500 | 17/64 | 0.258 | 0.273 |
| 0.3750 | 3/8 | .628 | .650 | 9/16 | .551 | .562 | 21/64 | 0.320 | 0.337 |
| 0.4375 | 7/16 | .768 | .794 | 11/16 | .675 | .688 | 3/8 | 0.365 | 0.385 |
| 0.5000 | 1/2 | .840 | .866 | 3/4 | .736 | .750 | 7/16 | 0.427 | 0.448 |
| 0.5625 | 9/16 | .982 | 1.010 | 7/8 | .861 | .875 | 31/64 | 0.473 | 0.496 |
| 0.6250 | 5/8 | 1.051 | 1.083 | 15/16 | .922 | .938 | 35/64 | 0.535 | 0.559 |
| 0.7500 | 3/4 | 1.240 | 1.299 | 1-1/8 | 1.088 | 1.125 | 41/64 | 0.617 | 0.665 |
| 0.8750 | 7/8 | 1.447 | 1.516 | 1-5/16 | 1.269 | 1.312 | 3/4 | 0.724 | 0.776 |
| 1 | 1 | 1.653 | 1.732 | 1-1/2 | 1.450 | 1.500 | 55/64 | 0.831 | 0.887 |
| 1.1250 | 1-1/8 | 1.859 | 1.949 | 1-11/16 | 1.631 | 1.688 | 31/32 | 0.939 | 0.999 |
| 1.2500 | 1-1/4 | 2.066 | 2.165 | 1-7/8 | 1.812 | 1.875 | 1-1/16 | 1.030 | 1.094 |
| 1.3750 | 1-3/8 | 2.273 | 2.382 | 2-1/16 | 1.994 | 2.062 | 1-11/64 | 1.138 | 1.206 |
| 1.5000 | 1-1/2 | 2.480 | 2.598 | 2-1/4 | 2.175 | 2.250 | 1-9/32 | 1.245 | 1.317 |
| 1.6250 | 1-5/8 | 2.686 | 2.815 | 2-7/16 | 2.356 | 2.438 | 1-25/64 | 1.353 | 1.429 |
| 1.7500 | 1-3/4 | 2.893 | 3.031 | 2-5/8 | 2.538 | 2.625 | 1-1/2 | 1.460 | 1.540 |
| 2 | 2 | 3.306 | 3.464 | 3 | 2.900 | 3 | 1-23/32 | 1.675 | 1.763 |
| 2.2500 | 2-1/4 | 3.719 | 3.897 | 3-3/8 | 3.263 | 3.375 | 1-15/16 | 1.890 | 1.986 |
| 2.5000 | 2-1/2 | 4.133 | 4.330 | 3-3/4 | 3.625 | 3.750 | 2-5/32 | 2.105 | 2.209 |
| 2.7500 | 2-3/4 | 4.456 | 4.763 | 4-1/8 | 3.988 | 4.125 | 2-3/8 | 2.319 | 2.431 |
| 3 | 3 | 4.959 | 5.196 | 4-1/2 | 4.350 | 4.500 | 2-19/32 | 2.534 | 2.654 |
Benefits of Using Zeron 100 Bolts
- Corrosive Resistance
- Highly Strength
- Resistant to Crevice & Pitting Corrosion
- Durable
- Resistant to Stress Corrosive Crack
Sales Agents in Following Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
| Nominal Screw Sizes (Inch) | Metric (mm) |
|---|---|
| 1/16″ | 1.59 |
| 1-7/8″ | 47.63 |
| 1/8″ | 3.18 |
| 1-3/8″ | 34.93 |
| 3/16″ | 4.76 |
| 1-1/2″ | 38.10 |
| 1/4″ | 6.35 |
| 2″ | 50.80 |
| 5/16″ | 7.94 |
| 1-3/4″ | 44.45 |
| 3/8″ | 9.53 |
| 1-5/8″ | 41.28 |
| 7/16″ | 11.11 |
| 3″ | 76.20 |
| 1/2″ | 12.70 |
| 2-1/4″ | 57.15 |
| 9/16″ | 14.29 |
| 2-1/2″ | 63.50 |
| 5/8″ | 15.88 |
| 2-3/4″ | 69.85 |
| 11/16″ | 17.46 |
| 3-1/4″ | 82.55 |
| 3/4″ | 19.05 |
| 4″ | 101.6 |
| 7/8″ | 22.23 |
| 3-1/2″ | 88.90 |
| 1″ | 25.40 |
| 3-3/4″ | 95.25 |
| 1-1/4″ | 31.75 |
Zeron 100 u bolts available according to international standards and specifications, view super duplex zeron 100 heavy hex bolt and nuts magnetic properties
Most Common Types of ZERON 100 Bolts
Zeron 100x Threaded Rod
Super Duplex Zeron 100 Stud Bolt
Zeron 100 Studs
Zeron 100 Full Thread Studs
Warehouse Locations of Partner Suppliers
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Zeron 100 Bolts Threaded Types
- Coarse & Fined Metric
- 12-UN (12 Threaded Serie)
- Coarse thread (UNC)
- BSF
- Fine Thread (UNF)
- UNJ
- UNEF
- Trapezoidal
- ACME
- 8-Thread Series (8UN)
Is zeron 100 fg heavy hex nut magnetic ?
- Yes, zeron 100 fg heavy hex is slightly magnetic
Various Materials of Zeron 100 Bolts
All sizes zeron 100 super duplex washer and countersuck screw in stock at UAE, check its strength chart and applications
Zeron 100 Bolts Tensile Strength
| Grade | Tensile Strength |
|---|---|
| Zeron 100 Bolt | 800 MPa |
What are zeron 100 sa screws used for ?
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Experienced ZERON 100 Bolts Supplier in UAE delivering dependable Material for demanding applications.
Will zeron 100 steel hex bolts rust ?
- No, Zeron 100 steel hex bolts is higher resistance to rust & corrosive.
Find SDSS zeron 100 socket head cap screw dimensions and weight chart here, view difference between zeron 100 studs, stud bolt and threaded rod

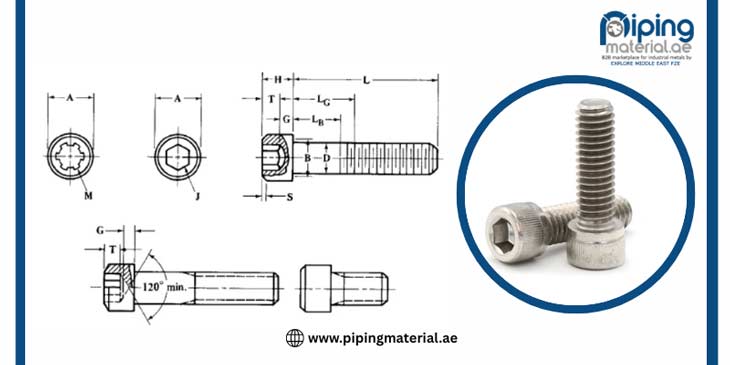

Zeron 100 Socket Head Cap Screw Dimension Chart
| Nominal Sizes | Body Diameter (D) | Head Diameter (A) | Head Height (H) | Chamfer / Radius S | Hexagon Socket J | Spline Socket M | Key Engagement T | Transition Dia B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| min. | max. | min. | max. | min | Max | Max | Nom. | Nom. | min | max | |
| M48 x 5 | 47.61 | 48 | 71.27 | 72 | 47.58 | 48 | 4.80 | 36.0 | – | 24 | 52.6 |
| M42 x 4.5 | 41.61 | 42 | 62.31 | 63 | 41.61 | 42 | 4.20 | 32.0 | – | 21 | 45.6 |
| M36 x 4 | 35.61 | 36 | 53.37 | 54 | 35.64 | 36 | 3.60 | 27.0 | – | 18 | 39.4 |
| M30 x 3.5 | 29.67 | 30 | 44.42 | 45 | 29.67 | 30 | 3 | 22.0 | – | 15 | 33.4 |
| M24 x 3 | 23.67 | 24 | 35.48 | 36 | 23.70 | 24 | 2.40 | 19.0 | – | 12 | 26.4 |
| M20 x 2.5 | 19.67 | 20 | 29.53 | 30 | 19.73 | 20 | 2 | 17.0 | – | 10 | 22.4 |
| M16 x 2 | 15.73 | 16 | 23.58 | 24 | 15.76 | 16 | 1.60 | 14.0 | – | 8 | 18.2 |
| M14 x 2 | 13.73 | 14 | 20.60 | 21 | 13.77 | 14 | 1.40 | 12.0 | – | 7 | 16.2 |
| M12 x 1.75 | 11.73 | 12 | 17.63 | 18 | 11.79 | 12 | 1.20 | 10.0 | – | 6 | 14.2 |
| M10 x 1.5 | 9.78 | 10 | 15.67 | 16 | 9.81 | 10 | 1 | 8.0 | – | 5 | 11.2 |
| M8 x 1.25 | 7.78 | 8 | 12.70 | 13 | 7.83 | 8 | 0.80 | 6.0 | 7.391 | 4 | 9.2 |
| M6 x 1 | 5.82 | 6 | 9.74 | 10 | 5.85 | 6 | 0.60 | 5.0 | 5.486 | 3 | 6.8 |
| M5 x 0.8 | 4.82 | 5 | 8.27 | 8.50 | 4.86 | 5 | 0.50 | 4.0 | 4.648 | 2.50 | 5.7 |
| M4 x 0.7 | 3.82 | 4 | 6.80 | 7 | 3.88 | 4 | 0.40 | 3.0 | 3.378 | 2 | 4.7 |
| M3 x 0.5 | 2.86 | 3 | 5.32 | 5.50 | 2.89 | 3 | 0.30 | 2.5 | 2.819 | 1.50 | 3.6 |
| M2.5 x 0.45 | 2.36 | 2.50 | 4.33 | 4.50 | 2.40 | 2.50 | 0.25 | 2.0 | 2.438 | 1.25 | 3.1 |
| M2 x 0.4 | 1.86 | 2 | 3.65 | 3.80 | 1.91 | 2 | 0.20 | 1.5 | 1.829 | 1 | 2.6 |
| M1.6 x 0.35 | 1.46 | 1.60 | 2.87 | 3 | 1.52 | 1.60 | 0.16 | 1.5 | 1.829 | 0.80 | 2.0 |
Zeron 100 Bolts Manufacturing Process
- Heat Treatment
- Hot & Cold Form
- Welding Procedure
- Machining
Chemical Composition of ZERON 100 Bolts
| Elements | Mn | Cu | P | Fe | N | Ni | W | S | C | Cr | Mo | Si |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | 1 | 1 | 0.030 | Balance | 0.3 | 8 | 1 | 0.010 | 0.03 | 26 | 4 | 1 |
| Min | – | 0.5 | – | – | 0.2 | 6 | 0.5 | – | – | 24 | 3 | – |
Searching for Top quality ZERON 100 Bolts ? We offer reliable stock which are Supplied to Ras Al Khaimah and Sharjah
Zeron 100 Bolts Mechanical Properties
| Grade | Yield Strength | Hardness | Elongation |
|---|---|---|---|
| ZERON 100 | 550 | 310 max | 15 % |
Equivalent Standard for ZERON 100 Bolts
| Grade | ASTM/ASME | UNS | European |
|---|---|---|---|
| ZERON 100 Bolt | F55 | UNS S32760 | 1.4501 |
Check Out Your Nearby Locations For Fastest Deliveries
| Fujairah | Abu Dhabi |
| Sharjah | Dubai |
| Ajman | Umm Al Quwain |
