Alloy Steel Socket Weld Fittings Overview
| Sizes in Ready Stock | 1/8″ to 4″ |
|---|---|
| Standard | ASME B16.11 & ANSI B16.11 |
| Pressure Class | 2000 PSI to 9000 PSI |
| Threads | ISO, BSP, UNF, NPT, BSPT, SAE |
| Thickness | SCH 20 to SCH 60 |
| Process | CNC Machined |
| Forging | Open Die Forging |
| Temprature | -29°C up to 600°C |
| Approvals | ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI |
| Finish | Black / Uncoated, Pickled and Passivated, Sandblasted, Zinc-Plated |
| Available Forms | 45 Degree Socket Weld Elbow, 90 Degree Threaded Elbow, 90 Degree Socket Weld Elbow, 45 Degree Threaded Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee |
| Origin of Raw Material: | European, Indian, Korean, Janpanese, UK, German |
| MTC | EN 10204/3.1B |
| Test Certificates |
|
| RFQ: | support@pipingmaterial.ae |
| Shipping Time |
|
| Value Added Services | Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing |
Why do consultants prefer Pipingmaterial.ae?
Pipingmaterial.ae is proudly serving thousands of buyers across the MENA region, powered by the 26-year expertise of Explore Middle East FZE in industrial metals, piping products, and steel trade.
- Technical Knowledge
- GCC Coverage
- Approved Manufacturers
- MTC Guidance
- Grade Comparison
- Verified Suppliers
- Weight Calculators
ASME B16.11 Alloy Steel Socket Weld 45/90 Degree Elbow Suppliers in Dubai
Alloy Steel Socket Weld Fittings Specification
Size In Ready Stock: 1/8″ to 4″
Maximum Size: 4″
Wall Thickness: SCH 20 to SCH 60
Pressure Class: Class 2000 to Class 9000
International Standard: ANSI B16.11, ASME B16.11
Surface Finish: Black / Uncoated, Pickled and Passivated, Sandblasted, Zinc-Plated
Installations: Oil & Gas, Power Generation, Petrochemicals
Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing
Packaging: Plastic Bag, Wooden Case & Carton Box
Connection: Socket Welding & Threaded
Threads : ISO, BSP, UNF, NPT, BSPT, SAE
Forging Method: Open Die & Closed Die Forging
Weekly Shipment to Below Locations
Expert Alloy Steel Socket Weld Fittings Suppliers in UAE delivering excellence in both design and material strength.
| Asia | Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia |
|---|---|
| Europe | Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy |
| Middle East | Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen |
View a Chrome Moly SW Tee Sizes and Dimensions, as Well as the Price List of as Socket Weld Full Coupling in UAE

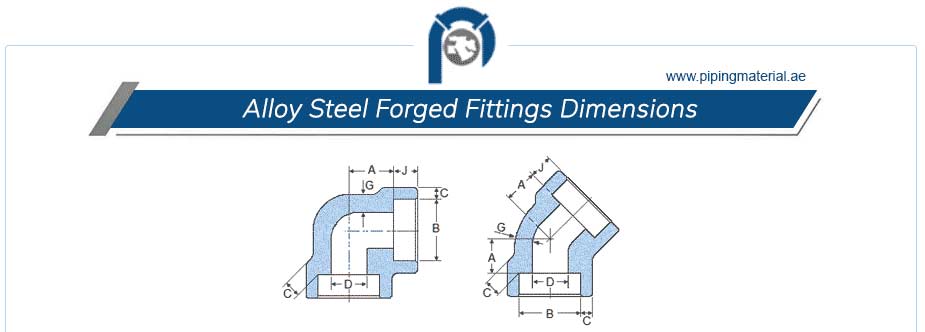

Alloy Steel Socket Weld Fittings Dimensions
| Nom Pipe Size | Center to bottom of socket (A) | Socket Bore Dia (B) | Body Wall Thk (G) Min. |
Socket Wall Thk (C) | Fitting Bore Dia (D) | Socket Depth (J) Min. |
Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | 90° Elbow | 45° Elbow | Min. | Max. | Avg. | Min. | Min. | Max. | 90° Elbow | 45° Elbow | ||
| 1/8 | 6 | 11.0 | 8.0 | 10.8 | 11.2 | 2.41 | 3.18 | 3.18 | 6.1 | 7.6 | 9.5 | 0.113 | 0.100 |
| 1/4 | 8 | 11.0 | 8.0 | 14.2 | 14.6 | 3.02 | 3.78 | 3.30 | 8.5 | 10.0 | 9.5 | 0.095 | 0.086 |
| 3/8 | 10 | 13.5 | 8.0 | 17.6 | 18.0 | 3.20 | 4.01 | 3.50 | 11.8 | 13.3 | 9.5 | 0.118 | 0.100 |
| 1/2 | 15 | 15.5 | 11.0 | 21.8 | 22.2 | 3.73 | 4.67 | 4.09 | 15.0 | 16.6 | 9.5 | 0.204 | 0.191 |
| 3/4 | 20 | 19.0 | 13.0 | 27.2 | 27.6 | 3.91 | 4.90 | 4.27 | 20.2 | 21.7 | 12.5 | 0.340 | 0.318 |
| 1 | 25 | 22.5 | 14.0 | 33.9 | 34.3 | 4.55 | 5.69 | 4.98 | 25.9 | 27.4 | 12.5 | 0.476 | 0.431 |
| 1-1/4 | 32 | 27.0 | 17.5 | 42.7 | 43.1 | 4.85 | 6.07 | 5.28 | 34.3 | 35.8 | 12.5 | 0.689 | 0.630 |
| 1-1/2 | 40 | 32.0 | 20.5 | 48.8 | 49.2 | 5.08 | 6.35 | 5.54 | 40.1 | 41.6 | 12.5 | 0.943 | 0.762 |
| 2 | 50 | 38.0 | 25.5 | 61.2 | 61.7 | 5.54 | 6.93 | 6.04 | 51.7 | 53.3 | 16.0 | 1.529 | 1.343 |
| 2-1/2 | 65 | 41.0 | 28.5 | 73.9 | 74.4 | 7.01 | 8.76 | 7.67 | 61.2 | 64.2 | 16.0 | 3.025 | 3.520 |
| 3 | 80 | 57.0 | 32.0 | 89.8 | 90.3 | 7.62 | 9.52 | 8.30 | 76.4 | 79.4 | 16.0 | 5.026 | 3.878 |
| 4 | 100 | 66.5 | 41.0 | 115.2 | 115.7 | 8.56 | 10.69 | 9.35 | 100.7 | 103.8 | 19.0 | 10.247 | 10.913 |
Alloy Steel SW Fittings Size Range
| Min. Pipe Size | AS 45 Degree Elbows | AS 90 Degree Elbows | AS 180 Deg Return Long Radius | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LR | 3R | LR | SR | 3R | XS | STD | ||||||||
| XS | STD | XS | STD | STD | SCH. 160 | XS | XXS | XS | STD | XS | STD | |||
| 1¼ | .50 | 0.38 | * | * | .60 | 1.00 | .90 | 1.38 | * | .4 | * | * | 1.75 | 1.25 |
| ½ | .19 | .09 | * | * | .18 | * | .25 | * | * | * | * | * | * | .35 |
| ¾ | .19 | .09 | * | * | .19 | * | .25 | * | * | * | * | * | .65 | .40 |
| 1 | .31 | 0.25 | * | * | .40 | .60 | .50 | .75 | * | .25 | * | * | 1.00 | .75 |
| 2 | 1.19 | .81 | 2.1 | 1.5 | 1.60 | 3.25 | 2.20 | 3.50 | 1.50 | 1.00 | 4.00 | 3.00 | 4.40 | 3.23 |
| 2½ | 2.13 | 1.75 | 4.00 | 3.00 | 3.25 | 5.13 | 4.00 | 7.00 | 2.80 | 2.13 | 8.00 | 6.00 | 8.00 | 6.50 |
| 3 | 3.50 | 2.63 | 7.00 | 5.00 | 5.00 | 8.50 | 6.50 | 11.0 | 4.25 | 3.00 | 13.0 | 10.0 | 13.00 | 10.25 |
| 8 | 35.0 | 23.0 | 70.0 | 45.0 | 50.0 | 120 | 71.0 | 118 | 47.5 | 34.0 | 140 | 90.0 | 142 | 95.0 |
| 10 | 53.0 | 43.0 | 109 | 80.0 | 88.0 | 260 | 107 | * | 70.0 | 58.0 | 218 | 159 | 215 | 117 |
| 12 | 84.0 | 62.0 | 155 | 117 | 125 | 450 | 160 | * | 104 | 80.0 | 310 | 233 | 320 | 230 |
| 14 | 100 | 80.0 | 200 | 149 | 160 | 572 | 205 | * | 140 | 105 | 400 | 298 | 400 | 325 |
| 16 | 135 | 100 | 260 | 195 | 206 | * | 276 | * | 174 | 132 | 520 | 390 | 550 | 412 |
| 4 | 6.10 | 4.50 | 13.0 | 9.00 | 9.00 | 18.0 | 13.5 | 20.0 | 8.50 | 6.25 | 25.0 | 18.0 | 25.0 | 18.5 |
| 6 | 17.5 | 12.0 | 35.0 | 23.0 | 24.5 | 57.0 | 35.0 | 65.0 | 23.0 | 18.0 | 70.0 | 45.0 | 70.0 | 50.0 |
| 24 | 300 | 238 | 585 | 438 | 460 | * | 600 | * | 392 | 298 | 1170 | 875 | 1200 | 890 |
| 26 | 365 | 275 | 685 | 515 | 550 | * | 729 | – | – | – | 1370 | 1030 | – | – |
| 30 | 488 | 367 | 915 | 685 | 734 | – | 975 | – | – | – | 1830 | 1370 | – | – |
| 36 | 706 | 531 | 1315 | 985 | 1062 | – | 1412 | – | – | – | 2630 | 1970 | – | – |
| 18 | 167 | 126 | 330 | 248 | 260 | * | 340 | * | 219 | 167 | 660 | 495 | 690 | 510 |
| 20 | 206 | 160 | 405 | 305 | 320 | * | 420 | * | 275 | 210 | 810 | 610 | 830 | 640 |
| 22 | 260 | 197 | 490 | 368 | 394 | * | 520 | * | * | * | 980 | 735 | 1040 | 787 |
| 3½ | 4.50 | 3.50 | 9.00 | 7.00 | 6.75 | * | 8.35 | 16.0 | 6.00 | 4.50 | 18.0 | 13.0 | 16.75 | 13.00 |
| 5 | 10.7 | 7.50 | 22.0 | 15.0 | 15.0 | 32.0 | 22.0 | 36.0 | 14.0 | 9.60 | 43.0 | 29.0 | 44.0 | 30.0 |
| 1½ | .69 | .40 | * | * | .90 | 1.80 | 1.15 | 1.50 | .75 | .56 | * | * | 2.39 | 1.88 |
See Where You Can Find Material Ex Stock
Professional Alloy Steel Socket Weld Fittings Suppliers in UAE providing custom solutions backed by superior material science.
| Africa | Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa |
|---|---|
| GCC Countries | Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman |
| MENA | Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia |
Directly Sourcing an ASTM A182 Crmo Socket Weld Union From a Manufacturer in the Middle East Can Save Costs by 30% to 40%
Advantages of ASTM A182 CrMo Socket Weld Union
- Superior High-Temperature Stability
- High Resistance
- Strong Structural Joint
- Forged Integrity
- Maintenance Flexibility
- Elimination of Thread Leaks
- Corrosion Resistance
Pressure Ratings for Low Alloy Steel Socket Weld Fittings
| Size (Inches) | Typical Pressure Rating (Class/PSI) |
|---|---|
| 1/8" to 2" | 2000 – 3500 PSI |
| 1/8" to 2" | 2000 – 3500 PSI |
| 1/8" to 2" | 2000 – 3500 PSI |
| 1/8" to 2" | 2000 – 3500 PSI |
| 1/8" to 2" | 2000 – 3500 PSI |
| 2" to 4" | 1500 – 2500 PSI |
| 2" to 4" | 1500 – 2500 PSI |
| 2" to 4" | 1500 – 2500 PSI |
| 2" to 4" | 1500 – 2500 PSI |
| 2" to 4" | 1500 – 2500 PSI |
Warehouse Locations of Partner Suppliers
Trusted Alloy Steel Socket Weld Fittings Suppliers in UAE delivering materials with superior resistance and reliability.
| Country | Cities |
|---|---|
| Netherlands | Haarlem, Amsterdam, Eindhoven, The Hague, Rotterdam |
| Belgium | Leuven, Antwerp, Seraing, Brussels, Ghent, Meeuwen-Gruitrode, Westerlo |
For Factory Rates on ANSI B16.11 as Half Coupling/ Reducing Tees, Get in Touch With the Manufacturer in the Sharjah
Types of Alloy Steel Socket Weld Fittings
Alloy Steel Socket Weld Elbow
Chrome Moly Socket Weld Tee
AS Socket weld Cap
Low Alloy Steel Socket weld Coupling
High Alloy Steel Socket Weld Cross
AS Socket Weld Union
Alloy Steel Socket Weld Fitting Pressure Class
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
| Elbows 45 and 90 degrees, Tees, Crosses, End or Pipe Caps, Couplings, Half-Couplings, |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
Find a Reliable Distributor of ASME SA182 as SW Cap in Jebel Ali. Chromoly Socket Weld Plug/ Lateral Tee is Also Available and Meets ASTM A182 Requirements
Chromoly Socket Weld Lateral Tee Chemical Composition
| Grade | Si | Mn | Cr | P | S | C | Mo |
| F1 | 0.5 | 0.3-0.6 | 4-6 | 0.03 | 0.03 | 0.15 max | 0.44-0.65 |
| F5 | 0.5-1.0 | 0.3-0.6 | 4-6 | 0.03 | 0.03 | 0.15 max | 0.44-0.65 |
| F9 | 0.5-1.0 | 0.3-0.6 | 8-10 | 0.03 | 0.03 | 0.15 max | 0.9-1.1 |
| F11 | 0.5-1.0 | 0.3-0.6 | 1.0-1.5 | 0.03 | 0.03 | 0.5-0.15 | 0.44-0.65 |
| F12 | 0.5 | 0.3-0.6 | 4-6 | 0.03 | 0.03 | 0.15 max | 0.44-0.65 |
| F22 | 0.5 | 0.3-0.6 | 4-6 | 0.03 | 0.03 | 0.50.15 max | 0.44-0.65 |
| F91 | 0.5-1.0 | 0.3-0.6 | 8-10 | 0.03 | 0.03 | 0.15 max | 0.9-1.1 |
ASTM A182 Crmo Socket Weld Union Mechanical Properties
| Grade | Tensile Strength | Elongation | Yield Strength (0.2%Offset) |
| F1 | 275 | 20 % | 485 |
| F5 | 275 | 20 % | 485 |
| F9 | 380 | 20 % | 585 |
| F11 | 205 | 20 % | 415 |
| F12 | 275 | 20 % | 485 |
| F22 | 205 | 20 % | 415 |
| F91 | 380 | 20 % | 585 |
