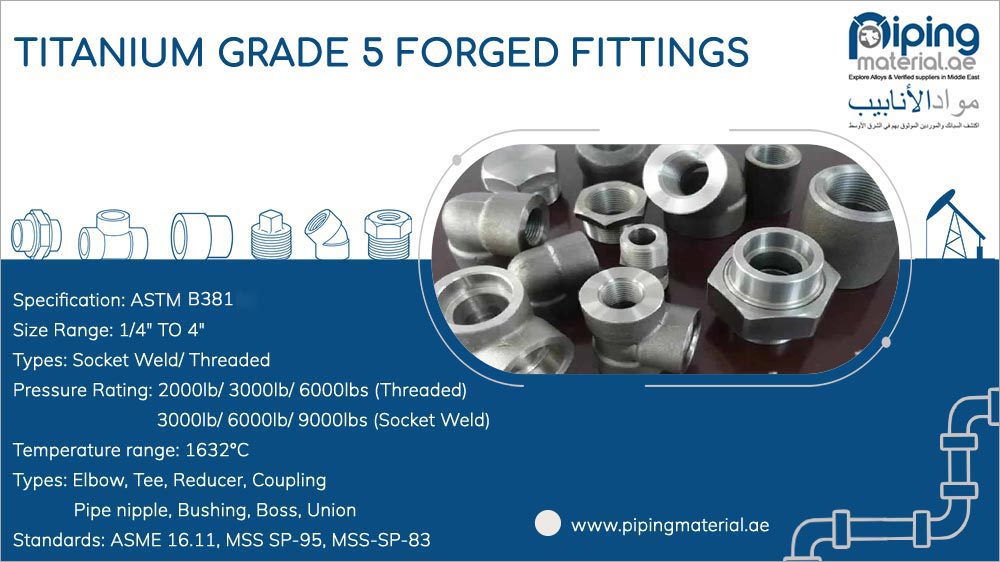

Titanium Grade 5 forged fittings
Titanium Grade 5 Forged Fittings Highlights
| Sizes in Ready Stock | 1/8″ to 4″ |
|---|---|
| Standard | ASME B16.11 & ANSI B16.11 |
| Pressure Class | 2000 PSI to 9000 PSI |
| Threads | ISO, BSP, UNF, NPT, BSPT, SAE |
| Thickness | SCH 20 to SCH 60 |
| Process | CNC Machined |
| Forging | Open Die Forging |
| Temprature | 1,600° F to 1,800° F |
| Approvals | ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI |
| Finish | Machined Finish, Pickled and Passivated, Polished/Anodized |
| Available Forms | 45 Degree Socket Weld Elbow, 90 Degree Threaded Elbow, 90 Degree Socket Weld Elbow, 45 Degree Threaded Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee |
| Origin of Raw Material: | European, Indian, Korean, Janpanese, UK, German |
| MTC | EN 10204/3.1B |
| Test Certificates |
|
| RFQ: | support@pipingmaterial.ae |
| Shipping Time |
|
| Value Added Services | Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing |
Why do consultants prefer Pipingmaterial.ae?
Explore Middle East FZE, a legally registered UAE entity since 2016, has channeled its 26 years of trade knowledge into building Pipingmaterial.ae as a one-stop B2B solution for industrial piping materials.
- Document Checklist Available
- Buyer Certificate Tips
- Compliance Documents Listed
- Mill Test Certificates
- Third Party Inspection Guide
- Years Experience
Don’t Buy UNS R56400 Threaded Elbow or Ti Gr 5 Socket Weld Union if Ndt Test Certificates Are Not Provided by Suppliers in Dubai

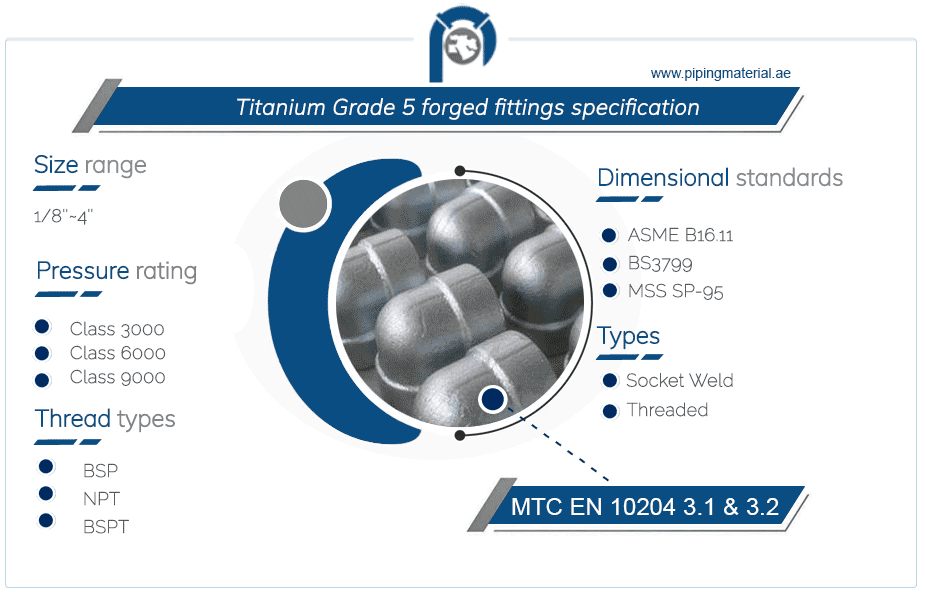

Titanium Grade 5 Forged Fittings Overview
Size In Ready Stock: 1/8″ to 4″
Maximum Size: 4″
Wall Thickness: SCH 20 to SCH 60
Pressure Class: Class 2000 to Class 9000
International Standard: ANSI B16.11, ASME B16.11
Surface Finish: Machined Finish, Pickled and Passivated, Polished/Anodized
Installations: Oil & Gas, Power Generation, Petrochemicals
Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing
Packaging: Plastic Bag, Wooden Case & Carton Box
Connection: Socket Welding & Threaded
Threads : ISO, BSP, UNF, NPT, BSPT, SAE
Forging Method: Open Die & Closed Die Forging
Are You Looking for the Latest Price List of Ti Gr 5 Threaded Fittings and UNS R56400 Socket Weld Full/ Half Coupling to Compare With the Rate You Received in RFQ
Types of Titanium Grade 5 Forged Fittings
Cp Grade 5 Titanium 45 Degree Elbow Forged Fitting
UNS R56400 90 Degree Elbow Forged Fitting
Ti gr 5 Tee Forged Fitting
Grade 5 Titanium Reducing Tee Forged Fitting
Titanium Gr 5 Cross Forged Fitting
Ti alloy gr 5 Half Coupling Forged Fitting
DIN 3.7035 Full Coupling Forged Fitting
Titanium 3.7165 Pipe Cap Forged Fitting
SB381 Gr F5 Union Forged Fitting
Material Inspection Facility in Following Locations
A Titanium Grade 5 Forged Fittings Suppliers in UAE of excellence delivering consistent quality across every shipment.
| Asia | Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia |
|---|---|
| Europe | Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy |
| Middle East | Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen |
Manufacturers of Cp Grade 5 Titanium Threaded Boss and SB381 Gr F5 Socket Weld Bushing in Dubai as Per ASME B16.11
SB381 Gr F5 Socket Weld Bushing Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Ti Gr 5 Socket Weld Fittings Mechanical Properties
| Element | Tensile Strength | Density | Yield Strength (0.2%Offset) | Melting Point | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 5 | Psi – 138000 , MPa – 950 | 4.43 g/cm3 | Psi – 128000 , MPa – 880 | 1632 °C (2970 °F) | 14 % |
Material Inspection Facility in Following Locations
Experienced Titanium Grade 5 Forged Fittings Suppliers in UAE delivering dependable solutions for demanding applications.
| Africa | Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa |
|---|---|
| GCC Countries | Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman |
| MENA | Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia |
Importers of Ti Gr 5 Socket Weld Fittings and DIN 3.7165 Threaded Equal/ Reducing Tee Stock in ASME B16.11 Standards in the Middle East
DIN 3.7165 Threaded Reducing Tee Equivalent Grades Chart
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Titanium Gr. 5 | N56400 | 3.7165 |
Titanium Grade 5 Forged Fittings Physical Properties
| Properties | Imperial | Metric |
|---|---|---|
| Density | 0.160 lb/in3 | 4.43 g/cm3 |
| Melting point | 3045 °F | 1674 °C |
UNS R56400 Threaded Elbow Thermal Properties
| Properties | Imperial | Metric |
|---|---|---|
| Thermal expansion co-efficient (@0.000-100°C/32-212°F) | 5 µin/in°F | 9 µm/m°C |
| Thermal conductivity | 45.8 BTU in/hr.ft².°F | 6.60W/mK |
Titanium Gr 5 Forged Fittings Application Industries
- Chemical Industry
- Petrochemical industry
- Marine & Power Transmission industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
Locate Available Material from Stock
Your dependable Titanium Grade 5 Forged Fittings Suppliers in UAE for expertly sourced, high-grade industrial components.
| Country | Cities |
|---|---|
| Netherlands | Haarlem, Amsterdam, Eindhoven, The Hague, Rotterdam |
| Belgium | Leuven, Antwerp, Seraing, Brussels, Ghent, Meeuwen-Gruitrode, Westerlo |
Check Sizes and Dimensions of ASTM B381 Grade F5 Threaded Hex Plug, Refer to Which NDT Tests Are Performed on Ti Alloy Gr 5 Socket Weld Cross
Titanium Gr.5 Threaded Elbow Weight Chart
| Size (Inches) | Wall Thickness (mm) | Radius (mm) | Weight (kg) |
|---|---|---|---|
| 1″ | 4.0 | 60 | 0.50 |
| 1-1/2″ | 5.0 | 90 | 0.90 |
| 2″ | 6.0 | 100 | 1.30 |
| 2-1/2″ | 7.0 | 150 | 1.80 |
| 3″ | 8.0 | 150 | 2.10 |
| 1/2″ | 3.2 | 40 | 0.22 |
| 3/4″ | 3.2 | 50 | 0.35 |
| 4″ | 8.0 | 200 | 3.00 |
Titanium Grade 5 Forged Fittings Dimension
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Tolerances, ± | Centre to Bottom of Socket | Bore Diameter of Fitting D | Laying Lengths | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | E | F | A | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | – | |||||||
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | .08 | .16 | .08 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1.034 1.064 | .800 | 1/2 | 1-1/8 |
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .03 | .06 | .03 | 7/16 | 7/16 | 5/16 | 5/16 | .254 .284 | .141 | 1/4 | 5/8 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | .08 | .16 | .08 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1.365 1.395 | 1.145 | 1/2 | 1-3/16 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .06 | .12 | .06 | 5/8 | 3/4 | 7/16 | 1/2 | .607 .637 | .451 | 3/8 | 7/8 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .06 | .12 | .06 | 3/4 | 7/8 | 1/2 | 9/16 | .809 .839 | .599 | 3/8 | 15/16 |
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | – | .438 | .10 | .20 | .10 | 2-1/4 | – | 1-1/4 | – | 3.038 3.098 | – | 3/4 | 1-3/4 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .03 | .06 | .03 | 7/16 | 17/32 | 5/16 | 5/16 | .349 .379 | .235 | 1/4 | 5/8 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | .08 | .16 | .08 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1.595 1.625 | 1.323 | 1/2 | 1-1/4 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | .08 | .16 | .08 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 2.052 2.082 | 1.674 | 3/4 | 1-5/8 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | – | .375 | .10 | .20 | .10 | 1-5/8 | – | 1-1/8 | – | 2.439 2.499 | – | 3/4 | 1-11/16 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .06 | .12 | .06 | 17/32 | 5/8 | 5/16 | 7/16 | .478 .508 | .344 | 1/4 | 11/16 |
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | – | .531 | .10 | .20 | .10 | 2-5/8 | – | 1-5/8 | – | 3.996 4.055 | – | 3/4 | 1-7/8 |
ASTM B381 Grade F5 Threaded Hex Plug Testings
- Radiography Testing
- Dye Penetrant Test
- Magnetic Particle Testing
- Positive Material Identification
- Chemical / Spectro Analysis
- Mechanical Testing
- Ultrasonic Testing
