ASTM A182 F11 Forged Fittings Spotlights

Sizes in Ready Stock	1/8″ to 4″
Standard	ASME B16.11 & ANSI B16.11
Pressure Class	2000 PSI to 9000 PSI
Threads	ISO, BSP, UNF, NPT, BSPT, SAE
Thickness	SCH 20 to SCH 60
Process	CNC Machined
Forging	Open Die Forging
Temprature	-29° C to 607° C (-20° F to 1125° F)
Approvals	ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI
Finish	Anti-Rust/Coating, Machined/Bright, As-Forged (Black)
Available Forms	45 Degree Socket Weld Elbow, 90 Degree Threaded Elbow, 90 Degree Socket Weld Elbow, 45 Degree Threaded Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee
Origin of Raw Material:	European, Indian, Korean, Janpanese, UK, German
MTC	EN 10204/3.1B
Test Certificates	Certificate of Origin Fumigation Certificates Raw Material Test Certificate Mill Test Certificate
RFQ:	support@pipingmaterial.ae
Shipping Time	Belgium : 22–26 Days Germany : 24–28 Days Andorra : 24–28 Days
Value Added Services	Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing

Why choose pipingmaterial.ae?

The credibility of Pipingmaterial.ae comes from Explore Middle East FZE’s 26-year legacy in the piping and steel trade, giving buyers and suppliers a trustworthy B2B environment rooted in real market knowledge.

No Middlemen
Saves 20% Cost
Price Comparison
Verified Suppliers
Technical Knowledge
GCC Coverage
Approved Manufacturers

Table of Content

ASTM A182 F11 Forged Fittings Specification
SA 182 gr F11 Threaded Fittings Dimensions
ASME SA182 Gr F11 Threaded Fittings Dimenssional Tolerance
SA 182 Gr F11 Socket Weld Tee Tolerance Chart
ASTM A182 gr F11 Class 2 Socket Weld Fittings Documents
Types of ASTM A182 F11 Forged Fittings
UNS K11597 Threaded Bushing Chemical Composition
SA182-f11 Cl.1 Socket Weld Hex Plug Mechanical Properties
ASTM A182 GR F11 Screwed Fittings Weight Chart

Buy directly SA182 F11 Cl2 threaded cap and alloy steel F11 socket weld tee from suppliers in UAE

ASTM A182 F11 Forged Fittings Specification

Size In Ready Stock: 1/8″ to 4″

Maximum Size: 4″

Wall Thickness: SCH 20 to SCH 60

Pressure Class: Class 2000 to Class 9000

International Standard: ANSI B16.11, ASME B16.11

Finish: Anti-Rust/Coating, Machined/Bright, As-Forged (Black)

Installations: Oil & Gas, Power Generation, Petrochemicals

Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing

Packaging: Plastic Bag, Wooden Case & Carton Box

Connection: Socket Welding & Threaded

Threads : ISO, BSP, UNF, NPT, BSPT, SAE

Forging Method: Open Die & Closed Die Forging

Locate Available Material from Stock

High-end ASTM A182 F11 Forged Fittings Suppliers in UAE offering expertly designed products that exceed industry standards.

Asia	Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia
Europe	Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy
Middle East	Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen

Check SA 182 gr F11 threaded fittings dimensions, A182 F11 CL2 socket weld coupling manufacturers in the UAE can offer to your specification at a great price.

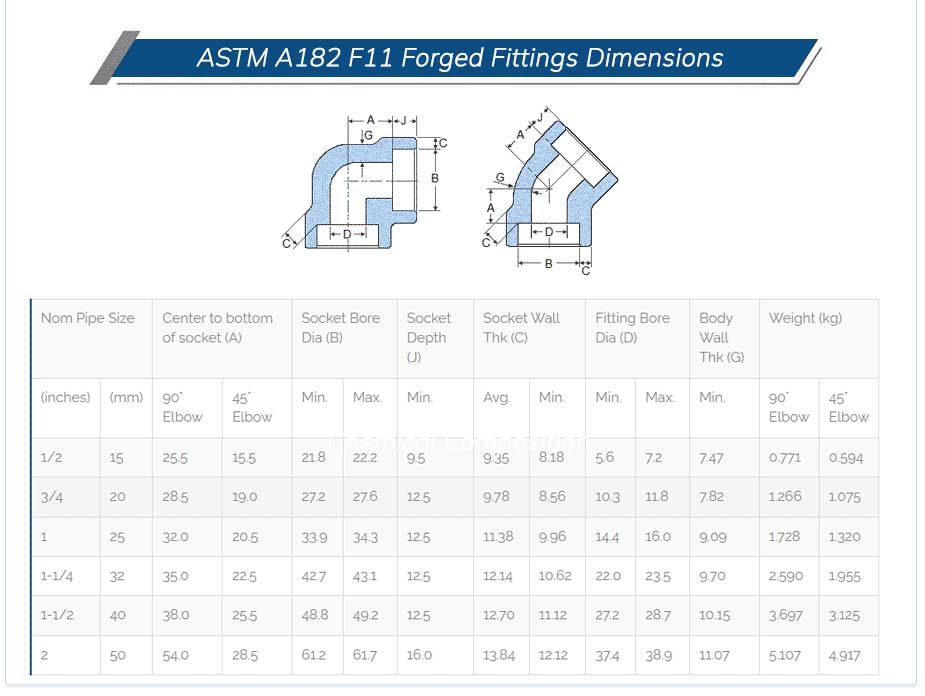

SA 182 gr F11 Threaded Fittings Dimensions

Astm a182 f11 forged fittings dimensions

Nom Pipe Size		Center to bottom of socket (A)		Socket Bore Dia (B)		Socket Depth (J)	Socket Wall Thk (C)		Fitting Bore Dia (D)		Body Wall Thk (G)	Weight (kg)
(inches)	(mm)	90° Elbow	45° Elbow	Min.	Max.	Min.	Avg.	Min.	Min.	Max.	Min.	90° Elbow	45° Elbow
1/2	15	25.5	15.5	21.8	22.2	9.5	9.35	8.18	5.6	7.2	7.47	0.771	0.594
3/4	20	28.5	19.0	27.2	27.6	12.5	9.78	8.56	10.3	11.8	7.82	1.266	1.075
1	25	32.0	20.5	33.9	34.3	12.5	11.38	9.96	14.4	16.0	9.09	1.728	1.320
1-1/4	32	35.0	22.5	42.7	43.1	12.5	12.14	10.62	22.0	23.5	9.70	2.590	1.955
1-1/2	40	38.0	25.5	48.8	49.2	12.5	12.70	11.12	27.2	28.7	10.15	3.697	3.125
2	50	54.0	28.5	61.2	61.7	16.0	13.84	12.12	37.4	38.9	11.07	5.107	4.917

ASME SA182 Gr F11 Threaded Fittings Dimenssional Tolerance

“A” – Center to Bottom of Socket	FOR SIZES 1/8″ AND 1/4″	± 0.03″
	3/8″, 1/2″ AND 3/4″	± 0.06″
	1″, 1-1/4″, 1-1/2″ AND 2″	± 0.08″
	2-1/2″, 3″, AND 4″	± 0.10″
“B” – Bore diameter of socket	FOR SIZES 1-1/2″ AND SMALLER	+ 0.020″ – 0.000″
“B” – Bore diameter of socket	2″, 2-1/2″, 3″ AND 4″	+ 0.025″ – 0.000″
“C” – Socket wall thickness	MINIMUM = 1.09 T (BUT NOT LESS THAN 5/32″) T = WALL THICKNESS OF NOMINAL PIPE
“G” – Welding gap	APPROXIMATELY 0.06″ RECOMMENDED GAP BEFORE WELDING
“H” – Minimum flat	MINIMUM FLAT = 0.75 X MINIMUM SOCKET WALL THICKNESS
“E” – Bottom to Bottom of Sockets – couplings	FOR SIZES 1/8″ AND 1/4″	± 0.06″
	3/8″, 1/2″ AND 3/4″	± 0.12″
	1″, 1-1/4″, 1-1/2″ AND 2″	± 0.16″
	2-1/2″, 3″, AND 4″	± 0.20″
“F” – Bottom of Socket to opposite face – half couplings	FOR SIZES 1/8″ AND 1/4″	± 0.03″
	3/8″, 1/2″ AND 3/4″	± 0.06″
	1″, 1-1/4″, 1-1/2″ AND 2″	± 0.08″
	2-1/2″, 3″, AND 4″	± 0.10″
“D” – Bore diameter of fitting	FOR SIZES 2″ AND SMALLER	± 0.030″
“D” – Bore diameter of fitting	2-1/2″, 3″ AND 4″	± 0.060″

SA 182 Gr F11 Socket Weld Tee Tolerance Chart

Nominal Size (Inches)	Branch Tolerance	End-to-End Tolerance	Thickness Tolerance
1	±0.15	±0.15	±0.20
1-1/4	±0.20	±0.20	±0.25
1-1/2	±0.20	±0.20	±0.30
2	±0.25	±0.25	±0.30
2-1/2	±0.25	±0.25	±0.35
3	±0.30	±0.30	±0.40
4	±0.30	±0.30	±0.40
1/2	±0.10	±0.10	±0.15
3/4	±0.12	±0.12	±0.15

Ask for test certificates of ASTM A182 gr F11 class 2 socket weld fittings, as well as the price list of SA 182 gr F11 forged 45/90 degree elbow in Dubai.

ASTM A182 gr F11 Class 2 Socket Weld Fittings Documents

Certificate of Origin
Fumigation Certificates
Raw Material Test Reports
Material Traceability Records
Heat Treatment Charts
Material Test Certificates (MTC)
Quality Assurance Plan (QAP)
NABL approved Laboratory Test Reports
certifying NACE MR0103, NACE MR0175

Types of ASTM A182 F11 Forged Fittings

Alloy Steel F11 Threaded Elbow

CrMo F11 Screwed Cross

ASME SA182 Alloy Steel F11 Forged Tee

Chrome Moly F11 Forged Coupling

Alloy Steel F11 Socket Weld Nipple

ASME SA182 Alloy Steel F11 Forged Union

Sales Agents in Following Locations

Dependable ASTM A182 F11 Forged Fittings Suppliers in UAE with a focus on performance, safety, and innovation.

Africa	Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa
GCC Countries	Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman
MENA	Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia

Check UNS K11597 threaded bushing/ union and SA182-f11 Cl.1 socket weld hex plug specification and chemical properties

UNS K11597 Threaded Bushing Chemical Composition

Grade	Mn	Si	C	S	P	Cr	Mo
A182 F11	0.3 – 0.6	0.5 – 1	0.05 – 0.15	0.03	0.03	1 – 1.5	0.044 – 0.65

SA182-f11 Cl.1 Socket Weld Hex Plug Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation %
A182 F11	415	205	20

Find below WNR 1.7335 socket weld cross and ASTM A182 F11 class 2 screwed street elbow importers in Jebel Ali

ASTM A182 GR F11 Screwed Fittings Weight Chart

Size (Inches)	Weight per Piece (kg)
1	0.85
1-1/4	1.20
3/4	0.65
4	4.20
10	7.80
15	11.50
1-1/2	1.45
2	1.85
2-1/2	2.35
3	3.05
1/2	0.45
