Carbon Steel Socket Weld Fittings Overview
| Sizes in Ready Stock | 1/4″ to 4″ |
|---|---|
| Standard | ASME B16.11 & ANSI B16.11 |
| Pressure Class | 2000 PSI to 9000 PSI |
| Threads | ISO, BSP, UNF, NPT, BSPT, SAE |
| Thickness | SCH 20 to SCH 60 |
| Process | CNC Machined |
| Forging | Open Die Forging |
| Temprature | -29°C to 427°C (-20°F to 800°F) |
| Approvals | ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI |
| Coating | Black, Galvanized, Hot-Dip Galvanized, Phosphated or Oiled |
| Available Forms | 45 Degree Socket Weld Elbow, 90 Degree Threaded Elbow, 90 Degree Socket Weld Elbow, 45 Degree Threaded Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee |
| Origin of Raw Material: | European, Indian, Korean, Janpanese, UK, German |
| MTC | EN 10204/3.1B |
| Test Certificates |
|
| RFQ: | support@pipingmaterial.ae |
| Shipping Time |
|
| Value Added Services | Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing |
How pipingmaterial.ae is different among other B2B platforms?
The credibility of Pipingmaterial.ae comes from Explore Middle East FZE’s 26-year legacy in the piping and steel trade, giving buyers and suppliers a trustworthy B2B environment rooted in real market knowledge.
- GCC Coverage
- Approved Manufacturers
- MTC Guidance
- Grade Comparison
- Weight Calculators
- Ready Stock
- Direct Delivery
Are You Looking for Verified Suppliers of High CS SW Elbow in UAE, Also Check Test Certificates

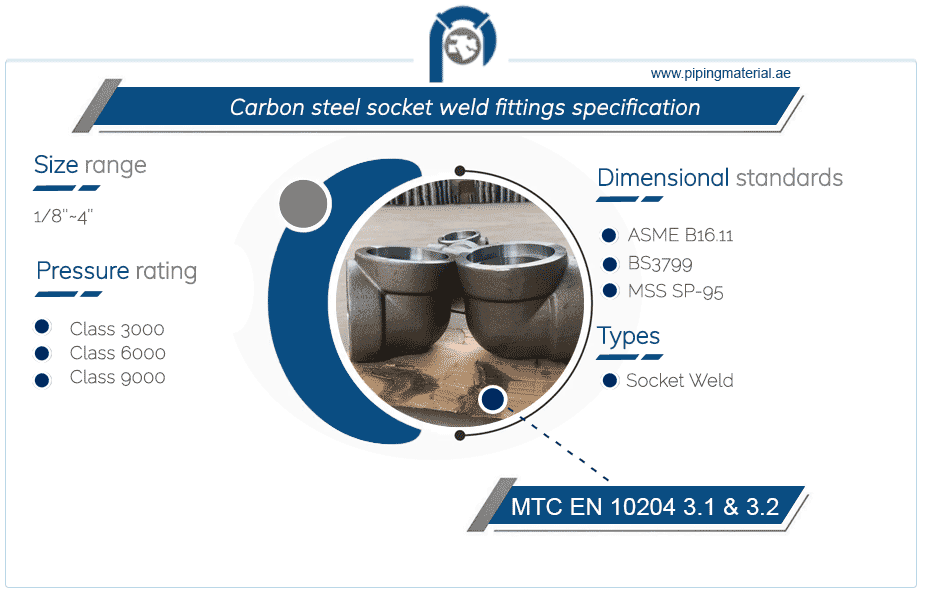

Carbon Steel Socket Weld Fittings Specification
Size In Ready Stock: 1/4″ to 4″
Maximum Size: 4″
Wall Thickness: SCH 20 to SCH 60
Pressure Class: Class 2000 to Class 9000
International Standard: ANSI B16.11, ASME B16.11
Surface Finish: Polished, Anti-rust Oil
Installations: Oil & Gas, Power Generation, Petrochemicals
Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing
Packaging: Plastic Bag, Wooden Case & Carton Box
Connection: Socket Welding & Threaded
Threads : ISO, BSP, UNF, NPT, BSPT, SAE
Forging Method: Open Die & Closed Die Forging
Call Now for the Clients List Based in Below Locations
Dependable Carbon Steel Socket Weld Fittings Suppliers in UAE with a focus on performance, safety, and innovation.
| Asia | Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia |
|---|---|
| Europe | Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy |
| Middle East | Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen |
Refer to Quenching Carbon Steel Socket Weld Equal/Reducing Tee Dimensions and Price List in Dubai, Refer to Applications Where Its Widely Used
Carbon Steel Socket Weld Equal Tee Dimensions
| (NPS) Normal Pipe Size | Socket Weld Bore | Depth Socket Weld | Bore dia |
|---|---|---|---|
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
| 1 | 5.70 5.00 |
4.55 | 22 |
| 1.1/4 | 6.05 5.30 |
4.85 | 27 |
| 1.1/2 | 6.35 5.55 |
5.10 | 32 |
| 2 | 6.95 6.05 |
5.55 | 38 |
| 1/2 | 4.65 4.10 |
3.75 | 15.5 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
| 3/4 | 4.90 4.25 |
3.90 | 19.5 |
| 2.1/2 | 8.75 7.65 |
7.00 | 41.5 |
| 3 | 9.50 8.30 |
7.60 | 57.5 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
| 4 | 10.70 9.35 |
8.55 | 66.5 |
CS Socket Weld Elbow Applications
- High-Pressure Steam
- Power Generation
- Oil, Gas, and Petrochemical Processing
- Chemical and Refining Facilities
- Fire Protection and Water Utility Systems
Material Inspection Facility in Following Locations
Expert Carbon Steel Socket Weld Fittings Suppliers in UAE delivering excellence in both design and material strength.
| Africa | Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa |
|---|---|
| GCC Countries | Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman |
| MENA | Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia |
Other Types of CS Socket Weld Fittings
SW Black Carbon Steel Reducing Coupling
Socket Weld Black Carbon Steel Elbow
High CS Black Equal Tee
SW Black Carbon Steel Equal Cross
Socket Weld Black Carbon Steel End Cap
Black Carbon Steel Socket Weld Outlet
You Can Find Importers of Fully Killed CS SW Full/ Half Coupling in the Middle East
Fully Killed CS SW Half Coupling Dimensions
| NPS | B max. |
B min. |
J min. |
|---|---|---|---|
| 3/8" | 18.0 | 17.6 | 9.5 |
| 1/2" | 22.2 | 21.8 | 9.5 |
| 3/4" | 27.6 | 27.2 | 12.5 |
| 1" | 34.3 | 33.9 | 12.5 |
| 1-1/4" | 43.1 | 42.7 | 12.5 |
| 1-1/2" | 49.2 | 48.8 | 12.5 |
| 1/4" | 14.6 | 14.2 | 9.5 |
| 2-1/2" | 74.4 | 73.9 | 16.0 |
| 3" | 90.3 | 89.8 | 16.0 |
| 2" | 61.7 | 61.2 | 16.0 |
| 1/8" | 11.2 | 10.8 | 9.5 |
| 4" | 115.7 | 115.2 | 19.0 |
Carbon Steel Socket Weld Equal Tee Chemical Composition
| Grade | C | Cr | Ni | P | S | Mn | Si | Cu | |
|---|---|---|---|---|---|---|---|---|---|
| ASTM A105 | min. | 0.5 | – | – | – | – | 0.5 | 0.17 | – |
| max. | 0.42 | 0.25 | 0.3 | 0.035 | 0.035 | 0.8 | 0.37 | 0.25 | |
| ASTM A350 LF2 | min. | – | – | – | – | – | 0.6 | 0.17 | – |
| max. | 0.30 | – | 0.40 | 0.035 | 0.040 | 1.35 | 0.37 | – |
Black CS Socket Weld Cap Mechanical Properties
| Grade | Hardness | Elongation (% in 50mm) min | Tensile Strength (ksi) min | Yield Strength 0.2% Proof (ksi) min |
|---|---|---|---|---|
| ASTM A105 | 229 | 40 | 600 | 355 |
| ASTM A350 LF2 | 197 | 22 | 485 | 250 |
Buy a Black CS Socket Weld Cap in ASME B16.11 Standard, Also Check the Material Origin
CS Socket Weld Cross Equivalent Grades Chart
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| ASTM A105 | – | K03504 |
| ASTM A350 LF2 | 1.0508 | K03011 |
Black CS Socket Weld Cap Dimensions
| NPS | Socket Bore | Depth Socket | Length Cap | Diameter Cap |
|---|---|---|---|---|
| B | J | Q | R | |
| 1 | 34.05 33.80 |
13 | 26 | 45 |
| 1.1/4 | 42.80 42.55 |
13 | 28 | 55 |
| 1.1/2 | 48.90 48.65 |
13 | 30 | 65 |
| 2 | 61.35 61.10 |
16 | 36 | 75 |
| 2.1/2 | 74.20 73.80 |
16 | 38 | 92 |
| 3 | 90.15 89.80 |
16 | 42 | 110 |
| 1/2 | 21.95 21.70 |
10 | 19 | 32 |
| 3/4 | 27.30 27.05 |
13 | 23 | 38 |
| 4 | 115.80 115.45 |
19 | 48 | 140 |
Find a Genuine Manufacturer of CS Socket Weld Cross Listed Below in GCC Countries, Check the Difference Between Annealing and Normalizing
Carbon Steel Socket Weld Fittings Heat Treatment
| Heat Treatment | Temperature Range |
|---|---|
| Normalizing | 880°C – 920°C (1615°F – 1690°F) |
| Annealing (Full) | 850°C – 870°C (1560°F – 1600°F) |
| Quenching & Tempering | Austenitize at ~860°C, liquid quench; Temper at 540°C – 650°C |
