SA 387 Grade 12 Plate Abstract
| Available Size |
|
|---|---|
| Brands in Stock | Vallourec Star, LP (VSTAR), Arcelor Mittal, JFE Steel, Benteler |
| Material Type | ASME SA 516/ASTM A516 Grade 70 |
| International Standards | UNS, WNR, BS, DIN, ASME, ASTM, SA, EN, AFNOR, GOST |
| Raw Material Origin | Janpanese, Korean, European, Indian, American, Europe, USA, North America, Canada, UK, Japan, South Korea, Germany, Russia, South Africa |
| Manufacturing Technique | Hot and Cold Rolled |
| Surface | Pickled and Oiled, Cold Rolled SteelNatural, Painted |
| Heat Treatment | Rolled, Normalised, QT, N+T |
| Test certificates | EN 10204 3.1 /2.2/ 3.2, HIC Tested, NACE |
| Delivery Time | South Africa: 12- 14 days | UAE : 8-10 days | Egypt : 12-15 days | Oman: 2-3 days |
Purchase From Good Quality ASTM A387 Gr 12 Plate Suppliers In UAE At Competitive Prices, Consult Now And Check P Number
SA 387 Grade 12 Plate Specification
SA 387 Grade 12 Plate: 0.6 to 3 mm (Width), 3000 to 18000 mm (Length)
SA 387 GR 12 CL 2 Plate: 5 to 150 mm (Thickness), 1000 to 4500 mm (Width), 6000 – 12000 mm (Length)
A387 Gr 12 Plate: 5 to 150 mm (Thickness), 1500 to 3000 mm (Width)
ASTM A387 Grade 12 Class 2 Plate: 5 – 150 mm (Thickness), Up to 12,000 mm (Dia), 3000 to 12000 mm (Length)
Surface Finish: Glossy, Mirror, Finest Finish, Matte
Cutting Method: Water Jet Cutting, Plasma, Oxy-propane, Laser
Process: Machining, Welding, Edging, Deburring, Grinding
Applications: Manufacturing Gas Cylinder, Plate Heat Exchangers, Evaporators
MTR: Charpy V-Notch Testing (CVN), PMI, Ultrasonic, NDT
Machining Process: Tapping, Countersinking, Milling, Counterboring
Get Quote Directly From SA 387 Grade 12 Plate Suppliers in UAE
Value Added Services: Welding, Slitting, Blanking, Polishing, Bending
For ASTM AA387 Gr 12 Rolled Plate Ex-stock You Can Call Or Chat To Below Verified SA 387 Grade 12 Plate Suppliers in UAE
Ready Stock Of SA 387 Gr 12 Plate
- Weight Formula: L/1000 * W/1000 * T * S
- Machining: Tapping, Countersinking, Milling
- Temperature Range: 1900°F (1038°C)
- Marking: Material grade, Sizes, Manufacturers logo / name
- Condition: As Rolled, Normalized, HIC
- Value Services: Machining, Grinding, Testing
- Lifespan: 35 years.
- Inspection Plan: Tensile test, Brinell Hardness Test
- Classification: Low Alloy steel, High Alloy steel
- Material Edges: Round, Rolled, Slit, Square
- Manufacturing Methods : Hot Rolled, Heat Treated
- Weldability: SMAW, FCAW, GMAW
- Welding Electrode: E9018-M stick
- Transport Method: Wooden boxes, Pallets, Plastic wrap
- Forming: Cold Forming, Hot Forming
- Plate Hardness: Hard, Quarter Hard, Soft, Spring Hard
ASTM A387 Grade 12 Plate Origin
Arcelor Mittal : Roman, Romania
Benteler : Dinslaken, Germany
JFE Steel: Chita, Japan
Tenaris Dalmine: Bergamo, Italy
Tubos Reunidos SA Tubos Reunidos Industrial: Amurrio, Spain
Vallourec Star, LP (VSTAR) : Youngstown, OH, USA
Find Only Genuine Stockists and Distributors of JFE Steel Corporation SA 387 Grade 12 in Ajman
- Super Steel Trading LLC: Ajman, United Arab Emirates
- Infinite Global FZE: New Industrial Area 2, Ajman, UAE
- Modern Ajman Steel Factory LLC: Ajman Industrial Area 2, UAE
- Metallic Steel Trading LLC: Ajman, United Arab Emirates
Deal With One Of The Top SA 387 Gr 12 Class 2 Plate Importers And Stockists In The Middle East And Africa Who Supply According To Your Need At The Best Price
What Are The Equivalent Material Of A387 Gr 12 Plate ?
| Standards | Country | Grade 12 |
|---|---|---|
| UNS | North America | UNS K11757 |
| ISO | ISO 2604 | |
| WNR | Russia | – |
| ASTM | America | A387-12-2 |
| ASME | Australia | SA387-12-2 |
| JIS | Japan | JIS G4109 SCMV 2 NT |
| BS | United Kingdom | 620B |
| GOST | Russia | 12KHM |
| AFNOR | France | 36206 15CD2.05 |
| EN | Europe |
|
| DIN | German | 13CRM044 DIN 17155 |
Thickness Chart of A387 Gr 12 Plate
| Item Dimension thickness is in inches |
||
|---|---|---|
| 0.025″ | 4″ | 0.75″ |
| 0.032″ | 3.5″ | 0.875″ |
| 0.036″ | 0.109″ | 1″ |
| 0.04″ | 0.125″ | 1.125″ |
| 0.05″ | 0.16″ | 1.25″ |
| 0.063″ | 0.19″ | 1.5″ |
| 0.071″ | 0.25″ | 1.75″ |
| 0.08″ | 0.3125″ | 2″ |
| 0.09″ | 0.375″ | 2.5″ |
| 0.095″ | 0.5″ | 3″ |
| 0.1″ | 0.625″ | – |
ASTM A387 Grade 12 Plate Heat Treatment
| Grade | Temperature, °F [°C] |
|---|---|
| 5 | 1300 [705] |
| 2, 12 and 11 | 1150 [620] |
| 22, 22L, 21, 21L and 9 | 1250 [675] |
The Top 10 Trustworthy Suppliers & Stockists Of SA 387 Grade 12 Plate Have Supplied To The Ethiopia, Ghana, Senegal, South Africa, Egypt, And Saudi Arabia
Material Inspection Facilities in the Following Countries
| Abu Dhabi | Ajman | Saudi Arabia | Al Jubail |
|---|---|---|---|
| Dubai | Ras Al Khaimah | Muscat | Riyadh |
| Sharjah | Umm Al Quwain | Doha | Fujairah |

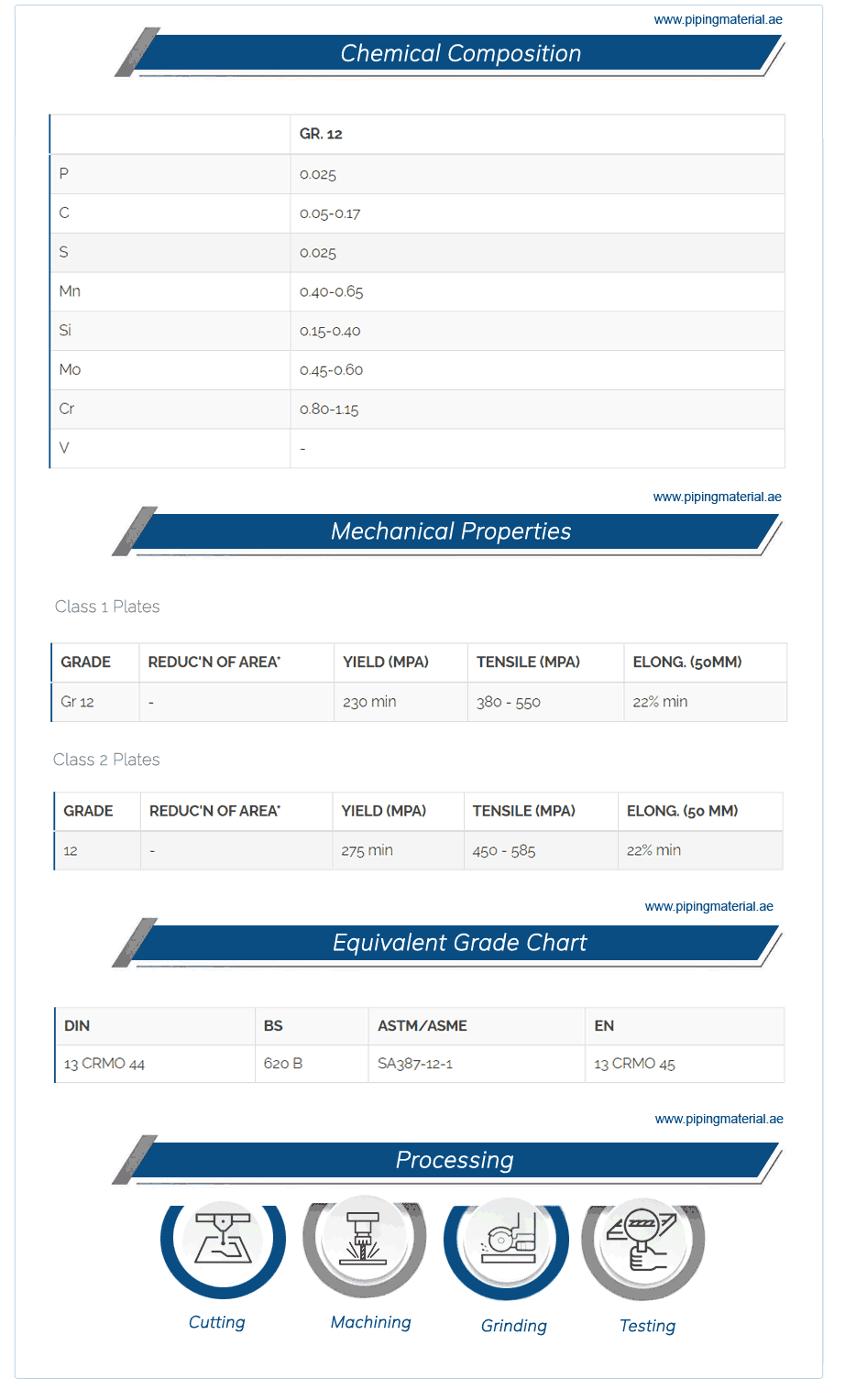

SA 387 Gr 12 Plate Chemical Composition
| Grades | Cr | Mo | C | S | Mn | P | SI |
|---|---|---|---|---|---|---|---|
| ASTM A387 Grade 12 | 0.8 – 1.15 | 0.45 – 0.6 | 0.05 – 0.17 | 0.035 | 0.4 – 0.65 | 0.035 | 0.15 – 0.4 |
You Can Examine Here Rates And Turnaround Times In Comparison To Those Of Other Stockists And SA 387 Grade 12 Plate Suppliers in UAE.
Different Types of SA 387 Grade 12 Plate

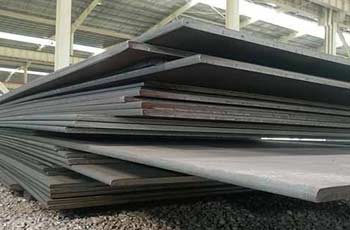

ASTM A387 GR 12 Class 2 Alloy Steel Plate

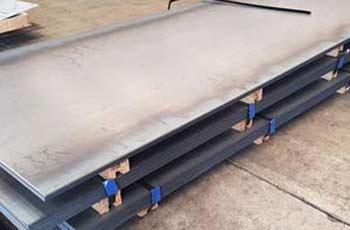

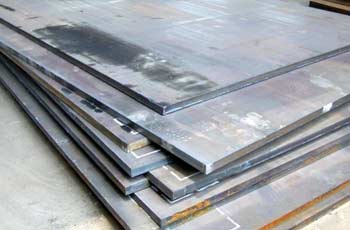

ASTM A387 Grade 12 Plates

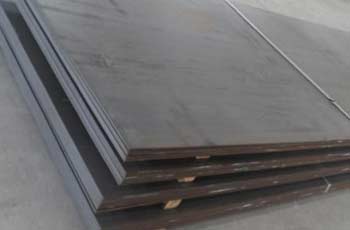

ASME SA 387 Grade 12 Class 1 Plates

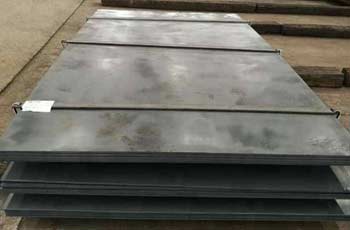

ASTM A387 Grade 12 Class 2 Plates

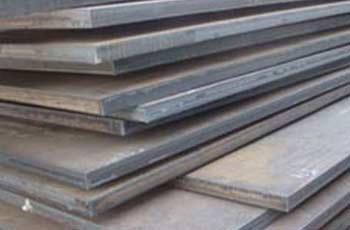

Alloy steel ASTM A387 Gr 12 Plates

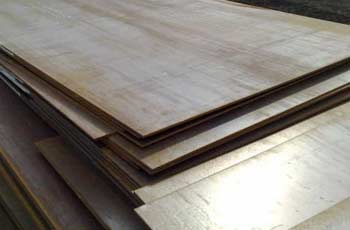

SA 387 GR 12 CL 2 Chrome Moly Steel Plates
Sa 387 Gr 12 Cl 1 Plate Tensile Requirements
| Grade 2 and 12 | Grade 11 | Grade 22, 21, 5, 7, 9 | |
|---|---|---|---|
| Yield strength min. ksi [MPa] | 33 | 35 | 30 |
| Tensile strength, ksi [MPa] | 55 to 80 [380 to 550] | 60 to 85 [415 to 585] | 60 to 85 [415 to 585] |
| Elongation in 8 in. [200 mm], min. %A | 18 | 19 | |
| Reduction of area, min % | 45B 40C |
||
| Elongation in 2 in. [50 mm], min. %A | 22 | 22 | 18 |
SA-387 Gr.12 class 2 Plate Material Properties
| ASTM A387 / A SME | A387 | Grade 12 |
| SA387 | Class 1 | Class 2 |
| density | 7.80 g/cc | |
| Yield Strength ( ksi ) | 33 | 40 |
| Yield Strength ( MPa ) | 230 | 275 |
| Tensile Strength ( ksi ) | 50-80 | 65-85 |
| Tensile Strength ( MPa ) | 380-550 | 450-585 |
| Reduction of area in ( % ) |
I | – |
| Elongation in 200mm ( % ) |
18 | 19 |
| Elongation in 50mm ( % ) |
22 | 22 |
Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below
| Region | Country | City |
|---|---|---|
| Middle East | United Arab Emirates | Dubai |
| Middle East | Saudi Arabia | Riyadh |
| Middle East | Saudi Arabia | Jeddah |
| Middle East | United Arab Emirates | Abu Dhabi |
| Middle East | Qatar | Doha |
| Middle East | Saudi Arabia | Dammam |
| Middle East | Kuwait | Kuwait City |
| Africa | South Africa | Johannesburg |
| Africa | South Africa | Cape Town |
| Africa | Nigeria | Lagos |
| Africa | Nigeria | Abuja |
| MENA | Egypt | Cairo |
| MENA | Morocco | Casablanca |
Discover Prime Quality Traders Who Keep Bulk Stock Of ASTM A387 Gr. 12 Class 1 Alloy Steel Plate In Dubai, Check Its Application
Common Applications Of SA 387 Gr.12 cl.2 Plate
- Heat exchangers
- Boilers
- API 934 Heavy Wall Pressure Vessels
- Vessels Containing Gas
- Numerous applications
- Gas Applications
- Sour Service Environments
- Petrochemical & Oil & Gas
- Aerospace & Defense
Technical Conditions Of ASTM A387 Grade 12 Class 1 Plate
Find The Largest Stocking Distributor Of Cut-to-size SA 387 Gr.12 Cl.2 Plates All Over The World With Mtc, See The Advantages
SA 387 GR 12 CL 2 Plate Size Chart
For Custom Sizes, Get In Touch With The Trustworthy SA 387 Grade 12 Plate Suppliers in UAE
| Size (in inches) | Size (in mm) |
|---|---|
| 1″ | 25.4mm |
| 2″ | 50.8mm |
| 3″ | 76.2mm |
| .875″ | 22.2mm |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .500″ | 12.7mm |
| .600″ | 15.9mm |
| .750″ | 19.1mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2.500″ | 63.5mm |
| .375″ | 9.53mm |
Advantages Of Alloy Steel ASTM A387 Gr 12 Plates
- Good Weldability
- Corrosion Resistant
- Durable
- High Temperature Resistant
- Flawless Finish
- High Strength & Efficiency
- Longer Life Span
- High Performance
Associate Traders And Importers Available In Below Locations For Quick Deliveries
| Country | Cities |
|---|---|
| Belgium | Ghent |
| Netherlands | Rotterdam |
| Belgium | Seraing |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Netherlands | The Hague |
| Belgium | Brussels |
| Belgium | Leuven |
| Belgium | Westerlo |
| Belgium | Antwerp |
| Netherlands | Eindhoven |
Providing Documents Of ASTM A387 Grade 12 Class 2 Plate
- Bill of Lading.
- Copy of Invoice
- Copy of Packing List
- Manufacturer’s Mill Test Certificate
- Country of Origin Certificate (Original)
Alloy Steel Grade 12 Plate HSN Code
| Grade | HSN Code |
|---|---|
| SA 387 Grade 12 Plate | 72254012 |
What Are Recommended Machining Operation For SA 387 Grade 12 Plate ?
- Milling
- Turning
- Grinding
- Planning and Shaping
- Drilling
- Reaming
- Sawing and Cutting Off
- Tapping and Threading
Do You Need Premium Quality Alloy Steel Plate Sa 387 Gr 12 Suppliers As Per Specification At The Best Price? Get Here

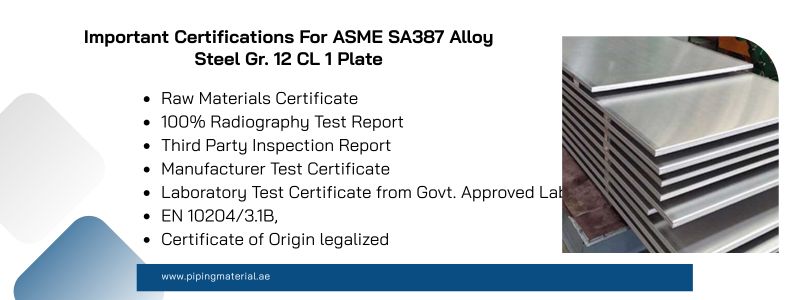

Important Certifications For ASME SA387 Alloy Steel Gr. 12 CL 1 Plate
Marking Value On ASME SA387 Alloy Steel Gr. 12 CL 2 Plate
- Origin of Material
- Material Grade
- Manufacturing Date
- Sizes
- ASME / ASTM standard
- Manufacturer Name & Logo
Email Or Chat Are The Best Ways To Communicate With Suppliers, Distributors, Stockholder, And Stockists Of These Services.
Value Added Services of ASTM A387 G 12 Plate
| Rolling | Electroplating |
| Heat Treatment | Minor Fabrication |
| Forging | Cutting |
| Anneling | Anodising |
| Bending | Pickling |
ASTM A387 Grade 12 Alloy Steel Plate Inspection Plan
- Flattening
- PMI inspection
- Brinell hardness test
- Tensile test
- Mechanical Testing
- Flaring Test
- Intergranular Corrosion Test
- Chemical Analysis
Make Direct Communication With Stockists And SA 387 Grade 12 Chrome Moly Plate Suppliers in UAE Listed Below
Sales Representatives Are Available To Provide Prompt Quotes
| Middle East countries | UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen |
|---|---|
| MENA | Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine |
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
Packaging Of Alloy Steel SA387 GR. 12 CL. 1 Plate
- Big rolls with spools
- Bundles with plastic wrapping
- Industrial packing techniques
- In bundles of upto 12 mm thickness for 10-15 metric tonnes for plates .
- for plates above 12 mm in loose condition
- Wooden boxes/ crates/ pallets
ASTM A387 Gr 12 Cl 2 Plate Weldability
| Welding Factor | Value/Condition |
|---|---|
| Carbon Equivalent | ≤0.45 |
| Preheating (°C) | 150 – 200 (>25mm) |
| PWHT (°C) | 620 – 650 |
| Filler Metal | E7018 |
| Bend Test Radius (mm) | 3t (t=thickness) |
Tips For Working With Alloy Steel ASTM A387 Gr 12 Plates
- Preheating Before Welding
- Use AppropriateCutting Techniques
- Consulting Experts
