UNS S32205 forged fittings

Home > UNS S32205 forged fittings

UNS S32205 Forged Fittings Overview

Sizes in Ready Stock	1/8″ to 4″
Standard	ASME B16.11 & ANSI B16.11
Pressure Class	2000 PSI to 9000 PSI
Threads	ISO, BSP, UNF, NPT, BSPT, SAE
Thickness	SCH 20 to SCH 60
Process	CNC Machined
Forging	Open Die Forging
Temprature	-50°C to 300°C (-58°F to 572°F)
Approvals	ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI
Finish	Pickled and Passivated, Sandblasted / Shot Peened, Electro-Polished, Machined
Available Forms	45 Degree Socket Weld Elbow, 90 Degree Threaded Elbow, 90 Degree Socket Weld Elbow, 45 Degree Threaded Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee
Origin of Raw Material:	European, Indian, Korean, Janpanese, UK, German
MTC	EN 10204/3.1B
Test Certificates	Certificate of Origin Fumigation Certificates Raw Material Test Certificate Mill Test Certificate
RFQ:	support@pipingmaterial.ae
Shipping Time	Doha : 5 Days Lusail : 6 Days Sohar : 5 Days
Value Added Services	Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing

How pipingmaterial.ae is different among other B2B platforms?

Pipingmaterial.ae is more than a supplier directory it is a 26-year knowledge base of Explore Middle East FZE, freely available to every procurement manager, consultant, and trader in the Middle East.

Saves 20% Cost
Price Comparison
Verified Suppliers
Technical Knowledge
GCC Coverage
Approved Manufacturers
MTC Guidance

Table of Content

UNS S32205 Socket Weld Fittings Specification
ASTM A182 S32205 Threaded Fittings Specification
Types of F60 Duplex Forged Fittings
UNS S32205 Hex Plug Dimensions
Threads of A182 F60 Duplex Threaded Fittings
ASTM A182 gr F60 Forged Fittings Chemical Composition
ASTM A182 F60 Coupling Mechanical Properties
ASTM A182 gr F60 Elbow Physical Properties
F60 Duplex Steel Socket Weld Fittings Welding

Choose a Verified Supplier of Duplex S32205 Threaded Tee Listed Below

UNS S32205 Socket Weld Fittings Specification

Uns s32205 forged fittings specification

Size In Ready Stock: 1/8″ TO 4″

Maximum Size: 4″

Wall Thickness: SCH 20 to SCH 60

Pressure Class: Class 2000 to Class 9000

International Standard: ANSI B16.11, ASME B16.11

Surface Finish: Polished, Anti-rust Oil

Installations: Oil & Gas, Power Generation, Petrochemicals

Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing

Packaging: Plastic Bag, Wooden Case & Carton Box

Connection: Socket Welding & Threaded

Threads : ISO, BSP, UNF, NPT, BSPT, SAE

Forging Method: Open Die & Closed Die Forging

A182 UNS S32205 socket weld fittings sizes	American / ASTM standard	ASTM A182 F60 SW fittings meet standard
Class 3000 : ½ – 4″ Class 6000/ 9000: ½ – 2″ DN6~DN100	ASTM A182 F60 (Forging) ASTM A276 UNS S32205 (Bar stock) ASTM A479 UNS S32205 (Bar stock)	MSS SP-79 MSS SP-95 MSS SP-83 MSS SP-95 MSS SP-97 BS 3799
A182 gr F60 socket weld fittingstype	F60 Duplex SW fittings ASME standard	SA182 F60 socket weld fittings pressure class
UNS S32205 socket weld elbow F60 Duplex Steel socket weld tee A182 F60 socket weld cross A182 gr F60 socket weld coupling SA182 F60 socket weld half coupling F60 duplex stainless steel socket weld cap	ASME B16.11	Class 3000 Class 6000 Class 9000
Pipe schedule for ASTM A182 gr F60 SW fittings	Quality & Test certificates	Origin of material
Class 3000 : SCH 80 / XS Class 6000: SCH 160 Class 9000: SCH XXS	EN 10204/3.1B 100% Radiography Test Report NACE MR0103 NACE MR0175	West Europe Japan Indian USA Korean Mail your custom drawing to above UNS S32205 forged fittings suppliers & manufacturers for best quote
F60 duplex steel socket weld fittings dimensions
45 degree socket weld elbow 90 degree socket weld elbow Socket weld tee Socket weld cap Socket weld coupling Socket weld reducing coupling Socket weld cross Socket weld lateral tee Socket weld union Socket weld plug Reducer insert Swage nipple

Buy Duplex UNS S32205 Socket Weld and Threaded Fittings in Custom Sizes at the Right Price

ASTM A182 S32205 Threaded Fittings Specification

ASTM A182 UNS S32205 threaded fittings sizes	ASTM standard for SA182 F60 threaded pipe fitting	A182 F60 Duplex threaded fittings meet standard
Class 2000 : ½ – 4″ Class 3000/ 6000: ½ – 2″ DN6~DN100 A182 F60 threaded adapter: 1/8″ – 4″	ASTM A182 F60 (Forging) ASTM A276 UNS S32205 (Bar stock) ASTM A479 UNS S32205 (Bar stock)	BS 3799 MSS SP-79 MSS SP-95 MSS SP-83 MSS SP-97 MSS SP-95
ASTM A182 S32205 threaded fittings type	A182 gr F60 screwed fittings ASME standard	ASTM A182F60 threaded fittings pressure class
A182 F60 threaded elbow A182 gr F60 threaded tee SA182 F60 bull plugs A182 F60 Duplex swage nipples UNS S32205 threaded coupling A182 UNS S32205 threaded half coupling F60 Duplex Steel threaded cap ASTM A182 F60 threaded cross	ASME B16.11	Class 2000 LBS Class 3000 LBS Class 6000 LBS
Pipe schedule for SA182 F60 threaded fittings	ASTM A182 gr F60 NPT threaded fittings	ASTM A182F60 threaded fittings dimensions
Class 2000 : SCH 80 / XS Class 3000: SCH 160 Class 6000: SCH XXS	ASME B1.20.1	45 degree Threaded Elbow 90 Degree Threaded Elbow Threaded Union Threaded Coupling Threaded Cross Threaded Cap Threaded Tee Threaded Bushing Threaded Plug Threaded Boss Threaded Lateral Tee Bull Plug Street Elbow Threaded bend Hex nipples Pipe nipple

Types of F60 Duplex Forged Fittings

ASTM A182 F60 Hex plug	A182 F60 Diverter tee
F60 Duplex Steel Boss	Forged Fittings
SA182 F60 Female threaded reducer	UNS S32205 F60 Street elbow
Hex bull plug	SA182 F60 Socket weld cap
Barrel nipples	45 degree threaded elbow
ASTM A182 F60 UNS S32205 NPT threaded fittings	ASTM A182 gr F60 degree socket weld elbow
ASTM A182 gr F60 Reducing coupling	F60 duplex stainless steel Socket weld union
45 degree socket weld elbow	F60 Duplex Threaded Union Female-Female
A182 UNS S32205 Socket weld cross	SA182 F60 Hex bushing
A182 F60 Mechanical joint adapters	ASTM A182F60 Socket weld concentric reducer
ASTM A182 S32205 Threaded full coupling	F60 Duplex Socket weld tee
F60 Duplex Steel NPT elbow	Threaded tee
Concentric Swage Nipple	UNS S32205 F60 90 degree threaded elbow
A182 F60 Duplex Threaded cross	ASTM A182 S32205 Reducer Insert
ASTM A182 Grade F60 Threaded cap	1.4462 F60 Swage nipple
A182 F60 Duplex Eccentric Swage Nipple	A182 gr F60 Hexagon nipple
Hex reducing bushing	A182 UNS S32205 Threaded union
SA182F60 Bull plug	A182 gr F60 BSP threaded fittings
ASTM A182 Grade F60 Square head plug	1.4462 F60 Threaded reducer
SA182F60 Half coupling	Expansion adapters
ASTM A182 gr F60 NPT tee	ASTM A182 Grade F60 Threaded Union Female Male
Threaded half coupling	Lateral tee
A182 UNS S32205 Male threaded reducer	UNS S32205 F60 Full coupling

Material Inspection Facilities in the Following Countries

Premier UNS S32205 Forged Fittings Suppliers in UAE of high-quality products engineered for lasting performance.

Country	Cities
Netherlands	Haarlem, Amsterdam, Eindhoven, The Hague, Rotterdam
Belgium	Leuven, Antwerp, Seraing, Brussels, Ghent, Meeuwen-Gruitrode, Westerlo

View Dimensions and Pressure Rating of Duplex S32205 Socket Weld Elbow/ Cap

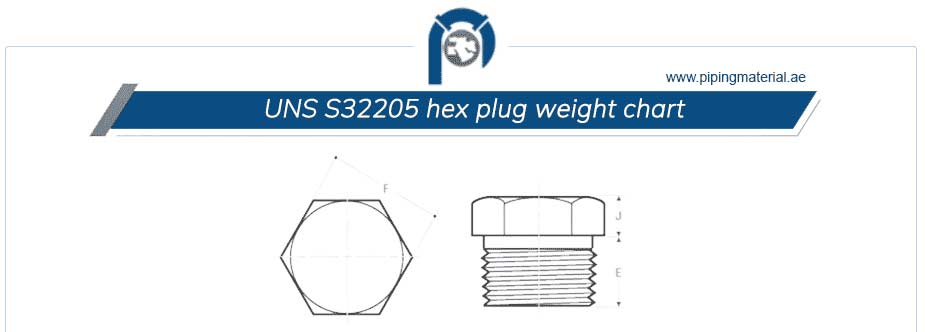

UNS S32205 Hex Plug Dimensions

UNS S32205 hex plug weight chart
NPS	Min Length	Nominal	Min Hex Height
1/2	14	22	8
3/4	16	27	10
1	19	35	10
1.1/4	21	44.5	14
1.1/2	21	51	16
2	22	63.5	18
2.1/2	27	76	19
3	28	89	21
4	32	117.5	25

Call Now for the Clients List Based in Below Locations

Trusted UNS S32205 Forged Fittings Suppliers in UAE delivering precision-engineered products with unmatched durability.

Asia	Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia
Europe	Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy
Middle East	Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen

You Can Choose Verified DSS UNS S32205 Threaded Union/ Bushing/ Street Elbow Manufacturers to Save Cost

Threads of A182 F60 Duplex Threaded Fittings

NPT (ANSI B1.20.1)
NPTF (ANSI B1.20.3)
BSP (ISO 228)
BSPT (DIN 2999)
BSPP (ISO 228-1)
UNC (ANSI B1.1)
UNF (ASME B1.1)

Explore Nearby Locations for the Quickest Delivery Options

Dependable UNS S32205 Forged Fittings Suppliers in UAE with a focus on performance, safety, and innovation.

Africa	Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa
GCC Countries	Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman
MENA	Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia

Importers Over Suppliers of Duplex S32205 Socket Weld Cross Would Be Good Choices to Buy in Small Quantity

ASTM A182 gr F60 Forged Fittings Chemical Composition

Grade		C	S	Mn	Ni	P	Cr	Si	Mo	N
UNS S32205	Min Max	– 0.030	– 0.020	– 2.00	4.5 6.5	– 0.030	22.0 23.0	– 1.00	3.0 3.5	0.14 0.20

ASTM A182 F60 Coupling Mechanical Properties

Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Hardness
Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Rockwell C (HR C)	Brinell (HB)
621	25	448	31 max	293 max

ASTM A182 gr F60 Elbow Physical Properties

Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Electrical Resistivity (nΩ.m)	Specific Heat 0-100°C ( J/kg.K)
Density (kg/m3)	Elastic Modulus (GPa)	0-100°C	0-315°C	0-538°C	at 100°C	at 500°C	Electrical Resistivity (nΩ.m)	Specific Heat 0-100°C ( J/kg.K)
7800	190	13.7	14.2	–	19	–	850	418

F60 Duplex Steel Socket Weld Fittings Welding

Zeron 100
ER2594
LDX 2101
