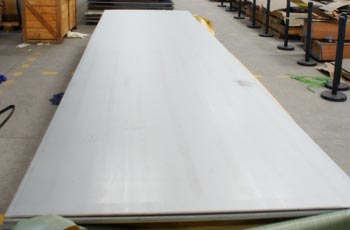

Hastelloy C22 plate

hastelloy c22 plate

Hastelloy C22 is an austenitic superalloy grade. The Hastelloy C22 Plate is a nickel, chromium, and molybdenum grade designed with excellent corrosion resistance properties in harsh environments. Alloy C22 Plate has outstanding resistance against pitting, crevice corrosion, and stress corrosion cracking in the system. These plates have good tolerance to oxidative media and reducing conditions. The Hastelloy C22 Hot Rolled Plate has good forming and machinability. Carbide tools are utilized to mill or turn the material using conventional coolants. A Hastelloy Alloy C22 Cold Rolled Plate can be readily welded, which resists the formation of grain-boundary precipitates. To calculate the weight of the plates, Hastelloy C22 Plate Weight Calculator is utilized.

The WERKSTOFF NR. 2.4602 coil has a density of 8.69 g/cm3 and a melting point of 1399 degrees C. These coils can be efficiently transported and later cut in different sizes. The Haynes Alloy C22 Foil is a thin metal grade and has good mechanical properties.

Verified Supplier

Verified Stockists (Contact directly for instant quote)

available 5 cars

Select an experienced alloy c22 sheet supplier in UAE, compare Hastelloy c22 and c276

Hastelloy C22 plate specifications obtained from numerous reliable suppliers

hastelloy c22 Plate Specification

For special sizes, get in touch with one of the granted Hastelloy C22 plate suppliers in the UAE listed above.
Sizes of Hastelloy C22 plate/ sheet Hastelloy C22 strip sizes Alloy C22 Plate edges
  • Thickness: 0.1 to 5 mm
  • Width: 0.5 to 1 m
  • Length: 0.7 to 6 m
  • Thickness: 038″ to . 141″
  • Gauge: Upto 12″
  • slit edge
  • rolled edge
Alloy C22 Sheet AMS ASTM Standard & grades Hastelloy C22 density
  • ASTM B575 UNS N06022
  • ASME SB 575 UNS N06022
  • Hastelloy C-22HS (UNS N07022)
8.69 g/cm3
Maximum operating temperature ASTM B575 UNS N06022 Strip Melting point Hastelloy C22 plate temperature range
  • 1250°F
  • 677°C
  • 2475°F – 2550°F
  • 1357°C – 1399°C
1750-2050° F
Nickel Alloy C22 plate grades Hardness range of Werkstoff NR. 2.4602 coil Haynes Alloy C22 foil elongation
  • Grade C22
  • Rockwell hardness : 100 Max
45 %
ASME SB575 NW 6022 shim sheet surface finish classes Top 7 type of sheet for Hastelloy C22 Manufacturing technique of Nickel alloy C22 plate
  • Class A : finest finish
  • Class B: slightly less fine finish
  • Class C : most basic finish
  • Alloy Hastelloy C22 sheet
  • DIN 2.4602 plate
  • Wnr 2.4602 coil
  • ASME SB 575 alloy C22 strips
  • EN 2.4602 rolls
  • Nickel C22 clad plate
  • Hastelloy 2.4602 annealed plate
  • C22 Hastelloy foils
  • UNS 6022 shim sheet

Above Hastelloy C22 plate stockist and distributors offer lowest price in Saudi Arabia, Qatar & Oman, view delivery estimate of Alloy C22 Sheet stockists.

  • Cold Rolled
  • Hot Rolled
  • Forged
Werkstoff NR. 2.4602 coil features Hastelloy C22 hot rolled plate welding method Get Hastelloy alloy C22 cold rolled plate stock of following brand
  • Corrosion resistance
  • Ductile
  • Excellent weldability
  • GTAW (TIG)
  • PLASMA
  • GMAW (MIG/MAG)
  • SAW
  • SMAW (MMA)
  • ATI
  • Valbruna Stainless Steel
  • Outokumpu
  • HAYNES International
  • Columbus Stainless
  • Nippon Yakin
  • VDM
  • Special Metals (SMC) – an American supplier
Hastelloy C22 sheet marking Alloy C22 sheet finish Hastelloy C22 plate application
  • Manufacturer logo / name
  • Manufacturing date
  • Material grade
  • Sizes
  • Thickness
  • HSN/ ASTM/ ASME standard
  • Origin of material
  • Brushed
  • Mirror
  • Sandblasted
  • Glossy
  • Matte
  • Electroless nickel plating
  • Chemical Processing
  • Power Generation
  • Oil & Gas
  • Food Processing
  • Pulp & Paper Industries
  • Pharmaceutical Industry

Sincere exporter and suppliers of Hastelloy C22 plate in the Eritrea, those companies have a wealth of experience exporting Nickel Alloy C22 Plate to countries including Zimbabwe, Saudi Arabia, Namibia, Swaziland, and Tunisia.

Modulus of elasticity (70°F) Coefficient of thermal expansion (200°F) Specific heat (70°F)
29.9 10^2 ksi 6.9 X10-6/°F 0.098 Btu/lb·°F
Alloy C22 plate common trade names Haynes Alloy C22 foil welding electrode Other industry standards
  • Hastelloy C22®
  • Nicrofer® 5621
  • Inconel® 22
AWS A5.11 ENiCrMo-10
  • ASTM B575
  • ISO 6208
  • DIN 17750
Standard of ASTM B575 UNS N06022 strip Certification of Alloy C22 sheet Alloy C22 plate value added services
  • WERKSTOFF NR. – 2.4602
  • UNS – N06022
  • JIS – NW 6022
  • EN – NiCr21Mo14W
  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report
  • Certificate of Origin legalized
  • cutting to length
  • shearing
  • sawing
  • welding
  • edge preparation
  • Bending
  • mechanical processing
  • Slitting
  • Blanking
  • Polishing

Use chat or email to get in direct contact with listed Hastelloy C22 plate stockists, stockholders, and distributors for these services.



Hastelloy C22 plate packaging Alloy C22 sheet inspection criteria ASTM B575 UNS N06022 plate hardness type
  • Wooden Pallets
  • Customized Pallets
  • Bubble wraps
  • Steel Strips Bundled
  • Chemical test
  • Mechanical test
  • Destructive test
  • Non destructive test pmi test
  • Visual inspection test
  • Third party inspection test
  • Nabl approved lab test
  • Flaring Test
  • Quarter Hard
  • Half Hard
  • Spring Hard
  • Soft
  • Hard
Nickel Alloy C22 plate processing Haynes Alloy C22 plate PREN number Electrical conductivity
  • Manufacturing
  • Measuring
  • Packaging
  • Processing
  • Cutting
46 44.8 microhm-in
Difference between plate, sheet & foil Werkstoff NR. 2.4602 sheet characteristics Nickel Alloy C22 sheet delivery time
  • Sheet : 0.5 mm up to 6 mm
  • Plate : 6mm
  • Foil : less than 0.2 mm
  • Corrosion resistance
  • Oxidation resistance
  • Heat treatment
  • Workability
  • Generally it is 7-10 days if its in stock
  • 15-20 days if its not in stock
Alloy C22 plate method of cutting Hastelloy C22 hot rolled plate documentation offered
  • Plasma cutting
  • Waterjet cutting
  • Laser cutting
  • Oxy-propane flame cutting

Direct contact with the above Hastelloy C22 plate distributors, dealers, and stockists specified for the above-mentioned cuts



  • Copy of Invoice
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Country of Origin Certificate (Original)
  • Bill of Lading.

Meet the best importers and stockists who supply a wide range of ASTM B575 UNS n06022 strip and Werkstoff nr. 2.4602 coil at the best price in Middle East countries, read expert tips

C22 vs C276

C22 C276
UNS N06022 UNS N10276
NiCr21Mo14W NiCr16Mo15W
W.Nr.2.4602 W.Nr. 2.4819
Welding Wire:- ERnicrmo-4 Welding Wire:- ERnicrmo-10
Welding Rod:- Enicrmo-4 Welding Rod:- Enicrmo-10
C22 performance is better than C276 C276 performance is poor as compare to C22
Molybdenum contain 13% & Chromium contain 22% Molybdenum contain 16% & Chromium contain 16%
Increased adaptability and remarkable resistance to pitting caused by chloride Demonstrated effectiveness in a variety of harsh compounds
Density : 8.69 g/cm³ Density : 8.89 g/cm³

Different types of Hastelloy C22 plate

Hastelloy C22 sheet

Hastelloy C22 sheet

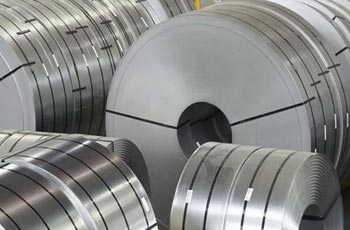

ASTM B575 UNS N06022 strip

ASTM B575 UNS N06022 strip

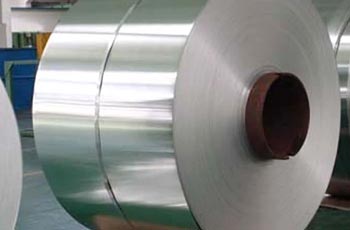

Werkstoff NR. 2.4602 coil

Werkstoff NR. 2.4602 coil

Haynes Alloy C22 foil

Haynes Alloy C22 foil

ASME SB575 NW 6022 shim sheet

ASME SB575 NW 6022 shim sheet

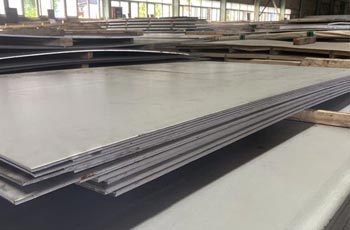

Hastelloy C22 hot rolled plate

Hastelloy C22 hot rolled plate

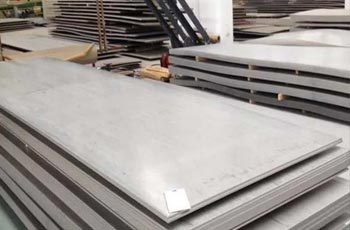

Hastelloy alloy C22 cold rolled plate

Hastelloy alloy C22 cold rolled plate

EN 2.4602 rolls

EN 2.4602 rolls

Nickel C22 clad plate

Nickel C22 clad plate

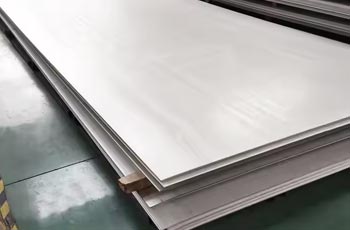

Hastelloy 2.4602 annealed plate

Hastelloy 2.4602 annealed plate

Alloy C22 plate price list

Grade Thickness in mm Price in USD Price in Driham Price in Pound
Hastelloy C22 Plate 0.5mm X 250mm X 250mm US $ 97.23 AED 16.60 £77.00
1.0mm X 250mm X 250mm US $ 135.11 AED 23.07 £107.00
2.0mm X 250mm X 250mm US $ 213.40 AED 36.44 £169.00
3.175mm X 250mm X 250mm US $ 315.69 AED 53.91 £250.00
6.35mm X 250mm X 250mm US $ 551.82 AED 94.23 £437.00
5.0mm X 250mm X 250mm US $ 447.01 AED 76.33 £354.00

Notes

  • For shipping time, get in direct contact with the Hastelloy C22 plate suppliers mentioned above.
  • The pricing of the Hastelloy C22 sheet includes GST and tax.
  • The approximate cost is shown above.
  • Price variations may occur based on origin.

Thickness of Nickel alloy C22 plate

Hastelloy C22 sheet Gauge Number Alloy C22 Sheet in milimeter Alloy C22 plate in inch
8 4.365 .17187
9 3.968 .15625
10 3.571 .14062
11 3.175 .125
12 2.778 .10937
14 1.984 .07812
16 1.587 .0625
18 1.270 .050
20 .9525 .0375
22 .7937 .03125
24 .635 .025
26 .476 .01875
28 .396 .01562
30 .3175 .0125

Haynes alloy C22 foil hs code

Description HS code
Alloy C22 Sheet 75062000

Weight chart of ASME SB575 NW 6022 sheet

US standard gauge Nickel alloy C22 plate gauge Weight ASME SB575 NW 6022 plate gauge decimal
inches lb/ft2 inches
0.0125 30 0.0125
0.0188 26 0.756 0.0187
0.025 24 1.008 0.025
0.0313 22 1.26 0.0312
0.0375 20 1.512 0.0375
0.05 18 2.016 0.05
0.0625 16 2.52 0.0625
0.0781 14 3.15 0.0781
0.1094 12 4.41 0.1094
0.125 11 5.04 0.125
0.1406 10 5.67 0.1406
0.1563 9 0.1562
0.1719 8 6.93 0.1719

Delivery location and time for the ASME SB575 NW 6022 shim sheet

Note: below table is published based on data collected by genuine suppliers

Export to Price variations and estimated delivery
South Africa  5 % extra | 25 to 30 days
Saudi Arabia  5 % extra | 7 days
Qatar  5 % extra | 7 days
USA  5 % extra | 40 to 60 days
Uk  5 % extra | 30 days
France  5 % extra | 30 days

Alloy C22 plate thickness tolerance

Width (milimeter) width < 1200 1200 < width < 1500 1500 < width < 1800 1800 < width < 2100 2100 < width < 2400 2400 < width < 2700 2700 < width < 3000
2.5 < t < 4.5 0.2 0.2 0.2 0.2
4.5 < t < 6 0.23 0.25 0.28 0.3 0.8 0.8 0.8
6 < t < 8 0.3 0.3 0.32 0.36 0.8 0.8 0.9
8 < t < 10 0.32 0.35 0.38 0.4 0.8 0.8 1
10 < t < 12.5 0.35 0.38 0.4 0.45 0.8 0.8 1
12.5 < t < 16 0.8 0.8 0.8 0.8 0.8 0.9 1
16 < t < 20 0.8 0.8 0.8 0.8 0.9 1 1.1
20 < t < 25 0.8 0.9 0.9 0.9 1 1.1 1.3
25 < t < 30 1 1 1.1 1.1 1.1 1.3 1.4
30 < t < 40 1.4 1.4 1.5 1.5 1.5 1.7 1.8

ASTM B575 UNS N06022 strip dimension

Hastelloy alloy C22 cold rolled plate Nominal Width (mm) Tolerance (milimeter)
Trimmed edge Mill edge
+ +
W > 1500 0 5 0 20
1200 < W  < 1500 0 5 0 20
W < 1200 0 3 0 20

Hastelloy C22 hot rolled plate welding procedure

Welding procedure
Shielded Metal Arc Welding – SMAW
Gas Metal Arc Welding – GMAW
Gas Tungsten Arc Welding – GTAW

Alloy C22 sheet mechanical properties

Tensile Strength Density Hastelloy C22 yield strength – (0.2 % Offset) Melting Point Elongation
  • 1,00,000 Psi
  • 690 MPa
8.69 gram/cm3
  • 45000 Psi
  • 310 MPa
  • 1399 °C
  • 2550 °F
45 %

Hastelloy C22 equivalent material

Standards Country Value
UNS North America N06022
WNR Russia 2.4602
ASTM America ASTM B575
ASME Australia ASME SB575
JIS Japan NW 6022
BS United Kingdom
GOST Russia
AFNOR France
EN Europe NiCr21Mo14W
AMS United States
ANSI America
SAE United States
AS Australia
DIN German 17750

Haynes Alloy C22 foil tolerances on width

Hastelloy C22 hot rolled plate nominal W (mm) Tolerance (milimeter)
Trimmed edge Mill edge
+ +
W > 1500 5 0 20 0
1200 < W < 1500 5 0 20 0
W < 1200 3 0 20 0

ASTM B575 N06022 material chemical composition

Grade P Mn C Co Si Fe S Cr Ni Mo
C22 0.02 max 0.50 max 0.010 max 2.50 max 0.08 max 2 – 6 0.02 max 20 – 22.50 50.015 min* 12.50 – 14.50

hastelloy c22 Plate Properties

Nickel Alloy C22 Plate size chart

Hastelloy alloy C22  sheet size (milimeter) Haynes alloy C22 plate size (inches)
3.4 0.134
3.18 0.125
4.75 0.187
3.96 0.156
7.92 0.312
6.35 0.25
12.7 0.5
9.53 0.375
15.9 0.6
22.2 0.875
19.1 0.75
25.4 1
76.2 3
31.8 1.25
28.6 1.125
38.1 1.5
50.8 2
44.5 1.75
63.5 2.5

Hastelloy C22 sheet gauge chart

Gauge Gauge Nickel Alloy C22 Plate
inch Werkstoff NR. 2.4602 plate weight in lb/ft2 ASME SB575 NW 6022 plate gauge decimal in inches
8 0.1719 6.93 0.1719
9 0.1563 0.1562
10 0.1406 5.67 0.1406
11 0.125 5.04 0.125
12 0.1094 4.41 0.1094
14 0.0781 3.15 0.0781
16 0.0625 2.52 0.0625
18 0.05 2.016 0.05
20 0.0375 1.512 0.0375
22 0.0313 1.26 0.0312
24 0.025 1.008 0.025
26 0.0188 0.756 0.0187
30 0.0125 0.0125

UNS N06022 Coil tolerances on length

Alloy C22 Plate nominal length (milimeter) Tolerance(milimeter)
+
length> 8,000 40 0
2,000  <  length < 8,000 0.005 times length 0
length< 2,000 10 0

Corrosion rate of Alloy C22 sheet

Producers Alloy 22 G28B Alloy 22 G28A
Special Metals 0.50 1.50
Haynes International 0.178 0.61
ThyssenKrupp VDM 0.17 0.90

Hastelloy C22 sheet thermal and electrical properties

Description Unit 70 °F 400 °F 600 °F 800 °F 1000 °F
Thermal Expansion X10-6/°F 6.9 7 7.4 7.7
Density lbs/in3 0.314
Poisson Ratio 0.3
Tensile Strength ksi 114 98 95 92 88
Elastic Modulus 102 ksi 29.9 28.5 27.6 26.6 25.7
Specific Heat Btu/lb·°F 0.098 0.106 0.111 0.114 0.118
Thermal Conductivity Btu-in/h·ft2·°F 69 94 110 125 139
Yield Strength ksi 54 41 36 35 34

Are you interested in purchasing a nickel alloy c22 rolling plate from an authorized distributor? Buy now and know more about the different edges of Hastelloy c22 hot rolled plate

The Alloy C22 plate is common in a round, rolled, square, and deburred specification.
The Hastelloy C22 and C276 are alloy materials of the Hastelloy family. But What Is The Difference Between Hastelloy C22 And C276. The major difference between both these alloys is their chemical content and their workability in different conditions. Nickel Alloy C22 Plate has a higher content of chromium and molybdenum compared to the C276 alloy. This gives the grade better resistance to pitting compared to the C276 grade. The Hastelloy C276 grade works well across a range of aggressive chemicals.
The best way to check the quality of the Hastelloy C22 sheet is via physical examination. Check for any defects or dents in the sheet before going further. Another important process is to check the Alloy C22 Sheet certifications. These certifications determine the quality, mill reports, and tests performed on the sheet. You can also know about the ISO 6208 Perforated Sheet by doing research on the vendor you’re buying the product from.

Are you looking for Hastelloy C22 sheet traders in Dubai? Find Haynes alloy c22 clad plate at an affordable price online here, see uses

The alloy C22 sheet is designed with an excellent chemical composition of chromium, nickel, molybdenum, and other alloys. This allows the Alloy C22 Sheet to work well in higher temperature and corrosive environments. These plates bolster excellent tensile and yield strengths. These ASME SB575 NW 6022 Shim Sheet has good electrical conductivity and resistivity, allowing them to be a good choice in the electric industry.

Get a ready stock inventory of Hastelloy c22 cold rolled plates, coil and shim stock in GCC countries, check surface finish

The Alloy C22 Clad Plate can be cold rolled or hot rolled and coated with plastic satin. These plates are available with a mirror, 1D, 2B, and NO.4. The ASTM B575 UNS N06022 Strip can also have a finish of hairline, brush, 8k, and other specifications.
