Incoloy 800H Plate

incoloy 800h plate

Incoloy 800H is a nickel, iron, and chromium alloy grade. The Incoloy 800H Plate has excellent strength that allows it to support different applications. These plates’ excellent tolerance to corrosive media enables them to be a feature in harsh environments. Incoloy 800h Plate is tolerant to carburization in higher temperatures. These plates are designed in sizes above 6mm and have good creep rupture properties.

The Incoloy 800H Sheet has a melting range between 1357 to 1385 degrees C and has a minimum yield strength of 200mpa. These sheets showcase an ultimate tensile strength of 531mpa with a Brinell hardness of 126max. The DIN 1.4859 Cold Rolled Plate is seen in chemical processing, petrochemicals, power generation, and thermal processing fixtures. This WERKSTOFF NR. 1.4958 Perforated Sheet is also seen in valves, fittings, pressure vessels, heat-treating equipment, etc.

Verified Supplier

Verified Stockists (Contact directly for instant quote)

available 5 cars

Find good quality SB 409 UNS N08810 strips & alloy 800H sheet suppliers in UAE at competitive prices

Incoloy 800h plate specification gathered from various genuine suppliers

Incoloy 800H Plate Specification

Custom drawings can be provided by the top 10 Incoloy 800H plate suppliers in the United Arab Emirates.
ASTM B409 UNS N08810 plate/ sheet sizes Alloy 800h strip sizes Werkstoff NR. 1.4958 Sheet Edges
  • Thickness: 2.5 to 100 mm
  • Width: 0.5 to 2 m
  • Length: 0.1 to 6 m
  • Gauge: 0.127 to 13 mm
  • Width: 6 to 2000 mm
  • Length: upto 15 meter
  • Slit edge
  • Rolled edge
NCF 800h Plate AMS American ASTM Standard Incoloy 800h Coil Density
5871
  • ASTM A265 (clad plate)
  • ASTM B409 (rolled plate/ sheet/ strips)
  • ASTM B906 (flat rolled)
7.94 g/cm3
Maximum operating temperature Inconel 800H Foil Melting point UNS N08810 Shim Sheet Temperature Range
  • 600-950 °C
  • 1385 °C
  • 2525 °F
  • 1740 to 2190°F
  • 950 to 1200°C
ASME SB409 Alloy 800h Plate grades Hardness range of UNS N08810 Shim Sheet Incoloy 800h sheet Elongation
Grade 800H
  • 184 HB
30 %
Alloy 800h Plate surface finish classes Most selling Incoloy 800h Plate types Manufacturing technique of Incoloy 800h plate
  • Class A : finest finish
  • Class B: slightly less fine finish
  • Class C : most basic finish
  • ASME SB 409 alloy 800h sheet
  • EN 1.4958 plate
  • Nickel 800h coil
  • Inconel 1.4958 strips
  • 800h Inconel rolls
  • UNS 8810 clad plate
  • NCF 800h annealed plate
  • Inconel 800h foils
  • ASTM B409 UNS N08810 shim sheet

Above Incoloy 800H sheet stockist produce corresponds with customer drawings, contrast our cost and turnaround time with those of other Incoloy 800H plate stockists.

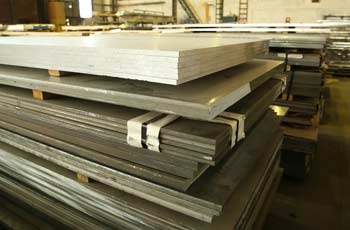

  • Cold Rolled

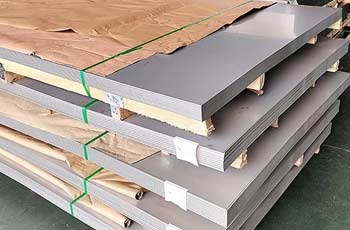

  • Hot Rolled
  • Forged
Incoloy 800h sheet features Incoloy 800H sheet welding method Supply Alloy 800h sheet in following brand
  • Corrosion resistance
  • Strength
  • Metallurgical stability
  • Weldability
  • Outstanding heat resistance
  • GTAW (TIG)
  • PLASMA
  • GMAW (MIG/MAG)
  • SAW
  • SMAW (MMA)
  • Valbruna Stainless Steel
  • Outokumpu
  • ATI
  • Columbus Stainless
  • HAYNES International
  • Nippon Yakin
  • VDM
  • Special Metals(SMC)
ASTM B409 UNS N08810 plate marking Alloy 800h strip finish NCF 800h plate applications
  • Manufacturer logo / name
  • Manufacturing date
  • Material grade
  • Sizes
  • ASTM/ ASME standard
  • Origin of material
  • Brushed
  • Mirror
  • Sandblasted
  • Glossy
  • Matte
  • Electroless nickel plating
  • Heat exchangers
  • Refinery industries
  • Furnace Equipment
  • Petrochemical Vessels & Piping
  • Aerospace

Sincere distributors and suppliers of 800h Inconel plate in the Tanzania, those companies have a wealth of experience exporting Incoloy 800H sheet to countries including Gambia, Saudi Arabia, Qatar, Nigeria, and Oman.

Incoloy alloy 800h modulus of elasticity Inconel alloy 800h coefficient of thermal expansion Inconel 800H Foil velocity
196.5 GPa 18.3 W/m-°K 6550 m/s
UNS N08810 Shim Sheet common trade names Werkstoff NR. 1.4958 Plate Welding Electrode WNR 1.4958 plate other industry standards
  • Incoloy 800H
  • Alloy 800H
  • Ferrochronin 800H

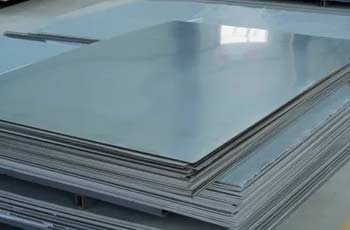

  • Nickelvac 800H
  • Nicrofer 3220
  • Electrode 112
  • INCOWELD A
  • FILLERS : 82
  • ASME SB 409
  • ASME SB 906
  • SAE AMS 5871
  • BS 3072NA15
  • BS 3073NA15
  • VdTÜV 412
Standard of ASTM B409 UNS N08810 coil Certification of NCF 800h sheet Inconel 800H foil value added services
  • UNS N08810
  • JIS NCF 800H
  • BS NA 15(H)
  • GOST ЭИ670
  • AFNOR Z8NC33-21
  • EN X5NiCrAlTi31-20
  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report
  • Certificate of Origin legalized
  • cutting to length
  • shearing
  • sawing
  • welding
  • edge preparation
  • Bending
  • mechanical processing
  • Slitting
  • Blanking
  • Polishing

Use chat or email to get in direct contact with listed Incoloy 800H plate stockists, stockholders, and distributors for these services.



ASME SB409 Alloy 800h sheet packaging Nickel Alloy 800H hot rolled plate inspection checklist Nickel Alloy 800H sheet hardness type
  • Wooden Pallets
  • Customized Pallets
  • Bubble wraps
  • Steel Strips Bundled
  • Chemical test
  • Mechanical test
  • Destructive test
  • Non destructive test pmi test
  • Visual inspection test
  • Third party inspection test
  • Nabl approved lab test
  • Flaring Test
  • Quarter Hard
  • Half Hard
  • Spring Hard
  • Soft
  • Hard
Werkstoff NR. 1.4958 sheet processing DIN 1.4958 800H foil suitable environment UNS N08810 plate electrical conductivity
  • Processing
  • Cutting
  • Packaging
  • Measuring
  • Additive manufacturing
Fused caustic 44.7 microhm-in
Difference between plate, sheet & Foil Incoloy 800h Coil Characteristics Inconel 800H Foil delivery time
  • UNS 8810
    plate : 6mm
  • Sheet : 0.5 mm up to 6 mm
  • NCF 800h foil : less than 0.2 mm
  • Excellent creep resistance at temp above 600 °C
  • Excellent resistance to oxidizing
  • Metallurgical stability under high temp. for extended periods of use
  • Generally it is 7-10 days if its in stock
  • 15-20 days if its not in stock
  • Oman/ Qatar/ Saudi Arabia – 3-5 days (by Air / Ship)
UNS N08810 Shim Sheet method of cutting Alloy 800h plate documentation offered
  • Plasma cutting
  • Waterjet cutting
  • Laser cutting
  • Oxy-propane flame cutting

Direct contact with the above Incoloy 800H plate distributors, dealers, and stockists specified for the above-mentioned cuts



  • Copy of Invoice
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Country of Origin Certificate (Original)
  • Bill of Lading.

Meet top 10 genuine 1.4958 steel plate & ASTM B409 UNS N08810 coils stockists, who offer quick delivery in Saudi Arabia, view Incoloy 800h vs 800ht

Thickness of alloy 800H sheet

Gauge Number Nickel alloy 800h plate in milimeter Incoloy 800h Plate in inch
8 4.365 .17187
9 3.968 .15625
10 3.571 .14062
11 3.175 .125
12 2.778 .10937
14 1.984 .07812
16 1.587 .0625
18 1.270 .050
20 .9525 .0375
22 .7937 .03125
24 .635 .025
26 .476 .01875
28 .396 .01562
30 .3175 .0125

Alloy 800h sheet hs code

Description HS code
Incoloy alloy 800h 75062000

SB 409 N08810 plate thickness tolerance

Inconel 1.4958 plate width (milimeter) W < 1200 1200 < W < 1500 1500 < W < 1800 1800 < W < 2100 2100 < W < 2400 2400 < W < 2700 2700 < W < 3000
2.5 < t < 4.5 0.2 0.2 0.2 0.2
4.5 < t < 6 0.23 0.25 0.28 0.3 0.8 0.8 0.8
6 < t < 8 0.3 0.3 0.32 0.36 0.8 0.8 0.9
8 < t < 10 0.32 0.35 0.38 0.4 0.8 0.8 1
10 < t < 12.5 0.35 0.38 0.4 0.45 0.8 0.8 1
12.5 < t < 16 0.8 0.8 0.8 0.8 0.8 0.9 1
16 < t < 20 0.8 0.8 0.8 0.8 0.9 1 1.1
20 < t < 25 0.8 0.9 0.9 0.9 1 1.1 1.3
25 < t < 30 1 1 1.1 1.1 1.1 1.3 1.4
30 < t < 40 1.4 1.4 1.5 1.5 1.5 1.7 1.8

Gauge chart of Incoloy 800h sheet

Alloy Incoloy 800h sheet gauge Gauge Inconel alloy 800h plate
inch Werkstoff NR. 1.4958 sheet weight in lb/ft2 Gauge decimal in inches
8 0.1719 6.93 0.1719
9 0.1563 0.1562
10 0.1406 5.67 0.1406
11 0.125 5.04 0.125
12 0.1094 4.41 0.1094
14 0.0781 3.15 0.0781
16 0.0625 2.52 0.0625
18 0.05 2.016 0.05
20 0.0375 1.512 0.0375
22 0.0313 1.26 0.0312
24 0.025 1.008 0.025
26 0.0188 0.756 0.0187
30 0.0125 0.0125

ASTM B409 UNS N08810 sheet welding procedure

Alloy Incoloy 800h welding procedure
SMAW – Shielded Metal Arc Welding
GMAW – Gas Metal Arc Welding
GTAW – Gas Tungsten Arc Welding

Types of Incoloy 800H material

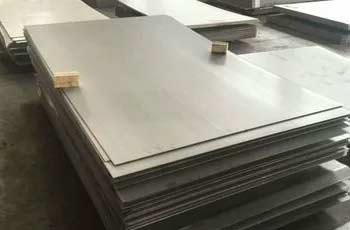

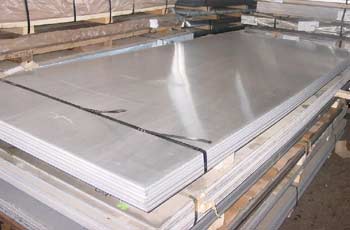

Incoloy 800H plate

Incoloy 800H plate

Alloy 800H sheet

Alloy 800H sheet

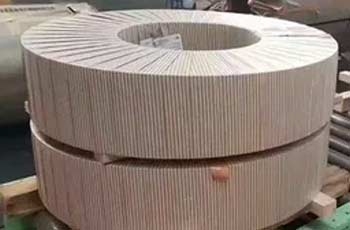

SB 409 UNS N08810 strips

SB 409 UNS N08810 strips

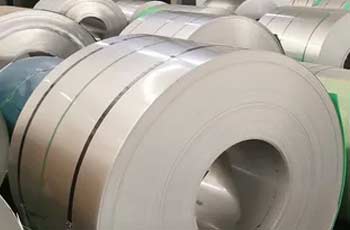

ASTM B409 UNS N08810 coil

ASTM B409 UNS N08810 coil

SB 409 N08810 foil

SB 409 N08810 foil

nickel alloy 800H shim stock

Nickel alloy 800H shim stock

Werkstoff NR. 1.4958 sheet thermal and electrical properties

Grade Specific Heat (0-100°C) Modulus of Elasticity Incoloy 800h thermal conductivity(100°C) Electrical Resistivity at 20°C
Werkstoff NR. 1.4958 plate 460 J/(kg·K) 206 GPa 11.0 W/(m·K) 1.0 × 10^6 ohm·m

Incoloy 800h chemical composition

Grade Al Si max C Cu max Mn max Cr S max Ti Fe min Ni
WNR 1.4958 sheet 0.15% – 0.60% <= 1.00% 0.05% – 0.60% <=0.75% <= 1.50 19.0%-23.0% 0.015% 0.15% – 0.60% >=39.5% 30.0% – 35.0%

NCF 800h plate mechanical properties

Grade Condition & Size Elongation Tensile Strength Reduction of Area Yield Strength
(0.2% Offset)
Hardness
min min %, min min Rockwell
Alloy 800h plate Annealed 30% 450 MPa 170 MPa

Incoloy 800h sheet equivalent material

Standards Country Value
Incoloy 800h uns number North America N08810
WNR Russia 1.4958
ASTM America ASTM B409
ASME Australia ASME SB 409
JIS Japan NCF 800H
BS United Kingdom NA 15(H)
GOST Russia ЭИ670
AFNOR France Z8NC33-21
EN Europe X5NiCrAlTi31-20
AMS United States AMS 5871
ANSI America
SAE United States
AS Australia
DIN German DIN 1.4958

Incoloy 800H Plate Properties

Size chart of Incoloy 800H sheet

NCF 800h plate size in mm Nickel alloy 800H plate size in inches
3.4 0.134
3.18 0.125
4.75 0.187
3.96 0.156
7.92 0.312
6.35 0.25
12.7 0.5
9.53 0.375
15.9 0.6
22.2 0.875
19.1 0.75
25.4 1
76.2 3
31.8 1.25
28.6 1.125
38.1 1.5
50.8 2
44.5 1.75
63.5 2.5

Incoloy 800h plate weight chart

US standard gauge Alloy 800h sheet gauge Weight UNS N08810 sheet gauge decimal
inches lb/ft2 inches
0.0125 30 0.0125
0.0188 26 0.756 0.0187
0.025 24 1.008 0.025
0.0313 22 1.26 0.0312
0.0375 20 1.512 0.0375
0.05 18 2.016 0.05
0.0625 16 2.52 0.0625
0.0781 14 3.15 0.0781
0.1094 12 4.41 0.1094
0.125 11 5.04 0.125
0.1406 10 5.67 0.1406
0.1563 9 0.1562
0.1719 8 6.93 0.1719

ASME SB409 alloy 800h plate tolerances on length

ASME SB 409 Alloy 800h sheet nominal L (milimeter) Tolerance(milimeter)
+
l < 2,000 10 0
2,000  <  l < 8,000 0.005 times length 0
l > 8,000 40 0

Nickel alloy 800H hot rolled plate tolerances on width

EN 1.4958 sheet nominal W (milimeter) Tolerance (milimeter)
Trimmed edge Mill edge
+ +
W < 1200 3 0 20 0
1200 < W  < 1500 5 0 20 0
W > 1500 5 0 20 0

Delivery location and schedule for DIN 1.4958 cold rolled plate

Note: below table is published based on data collected by genuine suppliers

Export to Price variations and estimated delivery shipping time
Sri Lanka  5 % extra | 5 days 5
Maldives  5 % extra | 7 days 7
Mayanmar  5 % extra | 25 days 25
Bangladesh  5 % extra | 14 days 14
Taiwan  5 % extra | 15 days 15
Cambodia  5 % extra | 9 days 9

ASTM B409 UNS N08810 strip dimension

Dimension (mm) Kilogram P/M2
.7 X 1219 X 3048 6.3
.5 X 1000 X 2000 4.5
.9 X 1219 X 3048 8.1
1.6 X 1200 X 3048 14.4
1.2 X 1219 X 3048 1.8
3 X 1200 X 3000 27
2 X 1219 X 3048 18
3.18 X VARIOUS ANN 28.6

Corrosion rate of alloy 800h Strip

Alloy Corrosion Rate
mpy mm/y
Nickel 800h plate 6 0.15

Discover importers and traders of incoloy ASTM B409 N08810 sheet & Werkstoff nr. 1.4958 coil in Dubai, check out inventory with price list and magnetic properties


The Incoloy 800h sheet is non-magnetic in most cases. In conditions where chromium is oxidizing, and nickel is reducing, there may be internal oxidation in the alloy 800h sheet. This embrittlement causes the remaining sheet to be magnetic.
Incoloy is a range of superalloys that are used as an alternative to Inconel alloys. The UNS N08811 Shim Sheet is a chromium and nickel-based alloy that are designed to resist corrosion and work in high temperatures.
The Incoloy 800h is a higher carbon-modified version of the Incoloy 800 grade. Both these items can be differentiated based on certain features. A Nickel Alloy 800H Hot Rolled Plate has good creep rupture properties at temperatures above 1100 degrees F. These plates also perform well in continuous service conditions. The Inconel 800H Foil is slightly cheaper when compared to the 1.4958 steel grade.
The SB 409 UNS N08810 plate has good creep rupture properties at temperatures above 1290 degrees F. Even at higher temperatures between 1200 to 1600 degrees F the 1.4958 Incoloy Strip will not be embrittled. At these temperatures, most other stainless steel would become brittle. The EN 1.4958 Chequered Plate has excellent forming properties as the grain size produces a visibly undulated surface. The Nickel 800h Plate Suppliers can supply these plates in different sizes and shapes.

Check the largest stocking distributor of cut-to-size ncf 800h clad plate and shim sheets all over the GCC countries with MTC, view density

The ASME SB409 alloy 800H clad plate is designed with a density of 7.94 g/cm3.

At pipingmaterial, you will get premium quality ASME SB409 UNS N08810 hot and cold rolled plate as per your specification at the best price, see welding process

The Incoloy 800H plate can be welded following standard shop welding procedures. The EN 1.4958 Plate is welded using the GTAW, GMAW, SMAW, and plasma welding process. The high strength ASTM B409 N08810 Coil requires higher powered equipment to weld the material.
