Incoloy 800 Plate Overview
| Available Sizes | 15NB to 150NB |
|---|---|
| Available Forms | Plate, Coil, Shim Sheet, Strip, Foil, Sheet etc. |
| Brands | ThyssenKrupp AG, Sandvik Materials Technology |
| Features | Corrosion resistant, Excellent stress distribution |
| International Standards | EN 10028-7, BS 3073NA15, DIN 17460 |
| Raw Material Origin | Indian, American, Japan, Korean, Europe, North America, Canada, UK, South Korea, Germany, Russia, South Africa |
| Technique | Hot and Cold Rolled |
| Strip Marking | Manufacturer name, Material grade, Sizes |
| ASTM Standard | ASTM A480, ASTM A240, ASTM B906, ASTM B409 |
| MTC | EN 10204 3.1 |
| Certification | EN 10204/3.1B, 100% Radiography Test Report |
Are You Looking to Buy Incoloy 800 Sheet and AMS 5877 Annealed Plate from Reliable Suppliers in UAE? Get Here and Inconel 800 vs Incoloy 800
Incoloy 800 Plate Specification collected from several Reliable Suppliers
Incoloy 800 Plate: 0.3 to 1200 mm (Thickness), 0 to 2500 mm (Width), 0 to 12
(Length)
Nickelvac® 800 Sheet: 0.5 to 3.96 mm (Thickness), 600 to 3000 mm (Width), 700
to 6000 mm (Length)
WNR 1.4876 Coil: 0.5 to 200 mm (Thickness), 1000 to 2500 mm (Width)
Incoloy 800 Strip: 0.1 to 12 mm (Thickness), 1220 to 1500mm (Width)
Surface Finish: Hot Rolled, Cold Rolled, Bright Annealed, Sandblasted
Alloy 800 Strip Delivery State: ¼ hard, Soft, ½ hard, hard, ¾ hard, annealed,
cold rolled, bright
Process: Edging, Deburring, Grinding
Applications: Chemical Processing, Heat Exchangers, Power Generation
MTR: PMI, Ultrasonic, NDT, Eddy Current Test Reports
Cutting: Plasma, Oxy-Propane, Laser, Waterjet
Get Quote Directly From Incoloy 800 Plate Suppliers in UAE
Value Added Services: Slitting, Blanking, Polishing, Bending
Inconel 800
- Tensile Strength: 480-620 MPa
- Yield Strength: 150-275 MPa
- Hardness: 145-220 HB
Incoloy 800
- Tensile Strength: 620-760 MPa
- Yield Strength: 205-276 MPa
- Hardness: 160-180 HB
Get Incoloy 800 Plate Suppliers in UAE offering Ready Stock Availability
Available Stock Of Incoloy 800 Plate
- Machinability: 50%
- Resistance: 6.84 Microhm-cm
- Documentation: Copy of Invoice, Bill of Lading
- Electrical Conductivity: 1.9 % IACS
- Modulus of Rigidity: 76 Gpa
- Welding Electrode: Electrode 112
- Testing Methods: Mechanical Testing, Hardness Testing
- Characteristics: Durability, Rugged Construction
- Method of Cutting: Plasma Cutting, Laser Cutting
- Strip Velocity: 6550 m/s
- Maximum Operating Temperature: 871-1232°C
- Condition: Hydrogen Annealing
- Surface: Smooth
- Value Added Services: Cutting to length, Shearing, Welding
- Processing: Hot, Cold Rolled
- Packing: Steel frame, Woven bag
Purchase From One of the Top Nickel Alloy 800 Sheet Suppliers in UAE , Who Keep Material Of Various Origin
Carpenter Technology Corporation: Philadelphia, United States
Haynes International, Inc.: Kokomo, IN, USA
Allegheny Technologies Incorporated (ATI): Dallas, Texas, USA
Aperam S.A.: Amsterdam, Brussels, Paris, Madrid and Luxembourg
Special Metals Corporation (SMC): New Hartford, New York, United States
ThyssenKrupp AG: Essen, Germany
Outokumpu: Helsinki, Finland
Sandvik Materials Technology: Stockholm, Sweden
Nippon Steel & Sumitomo Metal Corporation: Tokyo, Japan
Nippon Yakin Kogyo Co., Ltd.: Chuo City, Tokyo, Japan
VDM Metals: Werdohl, Germany
Please find Authorised Dealers and Distributors of Special Metals Corporation Incoloy 800 Sheets in UAE
- Alloy Steel Trading LLC – Umm Ramool, UAE
- Nickel Alloys Steel Trading Co LLC – Ras Al Khor Industrial Area, UAE
- Prestige Metalloys LLC – Al Quoz Industrial, UAE
- Reliance Alloy Steel Trading LLC – Umm Ramool, UAE
Compare the Price of Alloy 800 Plate & Incoloy 800 Strip of Custom Thickness With Various Genuine Stockists and Importers in the Middle East and India and Also Check Nickel Alloy 800 Coil Heat Treatment
Below Inconel 800 Plate Stockist produce corresponds with Customer Drawings, Contrast Cost and Turnaround Time with those of other Incoloy 800 Plate Stockists.
| Grade | Thickness in mm | Price in USD | Price in Driham | Price in Pound |
|---|---|---|---|---|
| Inconel 800 Plate | 1.0mm X 250mm X 250mm | US $ 63.01 | AED 10.80 | £50.00 |
| 3.0mm X 250mm X 250mm | US $ 129.79 | AED 22.26 | £103.00 | |
| 4.0mm X 250mm X 250mm | US $ 165.07 | AED 28.31 | £131.00 | |
| 5.0mm X 250mm X 250mm | US $ 200.36 | AED 34.36 | £159.00 | |
| 6.0mm X 100mm X 100mm | US $ 56.70 | AED 9.72 | £45.00 | |
| 12.0mm X 100mm X 100mm | US $ 83.17 | AED 14.26 | £66.00 |
Notes
- Find out the shipment time by contacting the Incoloy 800 plate suppliers mentioned above directly.
- The cost of the alloy 800 plate includes GST and tax.
- The approximate cost is shown above.
- Price variations may occur based on origin.
Incoloy 800 Sheet Thickness Chart
| Gauge No. | UNS N08800 plate in inch | Incoloy 800 sheet in milimeter |
|---|---|---|
| 8 | .17187 | 4.365 |
| 9 | .15625 | 3.968 |
| 10 | .14062 | 3.571 |
| 11 | .125 | 3.175 |
| 12 | .10937 | 2.778 |
| 14 | .07812 | 1.984 |
| 16 | .0625 | 1.587 |
| 18 | .050 | 1.270 |
| 20 | .0375 | .9525 |
| 22 | .03125 | .7937 |
| 24 | .025 | .635 |
| 26 | .01875 | .476 |
| 28 | .01562 | .396 |
| 30 | .0125 | .3175 |
Find Incoloy 800 Sheet Suppliers in UAE with a wide range of types
Incoloy 800 Sheet
ASME SB 409 Alloy 800 Plate
Nickel Alloy 800 Coil
Incoloy 800 Strip
Nickel 800 Rolls
UNS N08800 Clad Plate
BS 3072na15 Annealed Plate
DIN 17460 Foil
Incoloy Alloy 800 Shim Sheet

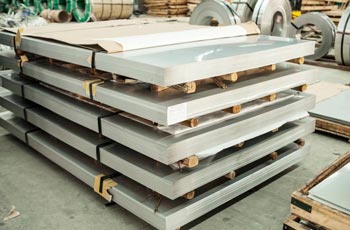

Alloy Incoloy 800 Hot Rolled Plate
Werkstoff NR. 1.4876 Cold Rolled Plate
Explore Nearby Locations for the Quickest Delivery Options
Note: below table is published based on data collected by genuine suppliers
| Country | Cities |
|---|---|
| Belgium | Brussels |
| Netherlands | Amsterdam |
| Belgium | Ghent |
| Netherlands | The Hague |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
| Belgium | Seraing |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Leuven |
| Belgium | Antwerp |
| Netherlands | Eindhoven |
Incoloy 800 Strip Thickness Tolerance
| DIN 1.4876 sheet width (milimeter) | 2.5 < thickness< 4.5 | 4.5 < thickness< 6 | 6 < thickness< 8 | 8 < thickness< 10 | 10 < thickness< 12.5 | 12.5 < thickness< 16 | 16 < thickness< 20 | 20 < thickness< 25 | 25 < thickness< 30 | 30 < thickness< 40 |
|---|---|---|---|---|---|---|---|---|---|---|
| W < 1200 | 0.2 | 0.23 | 0.3 | 0.32 | 0.35 | 0.8 | 0.8 | 0.8 | 1 | 1.4 |
| 1200 < W < 1500 | 0.2 | 0.25 | 0.3 | 0.35 | 0.38 | 0.8 | 0.8 | 0.9 | 1 | 1.4 |
| 1500 < W < 1800 | 0.2 | 0.28 | 0.32 | 0.38 | 0.4 | 0.8 | 0.8 | 0.9 | 1.1 | 1.5 |
| 1800 < W < 2100 | 0.2 | 0.3 | 0.36 | 0.4 | 0.45 | 0.8 | 0.8 | 0.9 | 1.1 | 1.5 |
| 2100 < W < 2400 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.9 | 1 | 1.1 | 1.5 | |
| 2400 < W < 2700 | 0.8 | 0.8 | 0.8 | 0.8 | 0.9 | 1 | 1.1 | 1.3 | 1.7 | |
| 2700 < W < 3000 | 0.8 | 0.9 | 1 | 1 | 1 | 1.1 | 1.3 | 1.4 | 1.8 |
Features of Ferrochronin® 800 Sheet
- Thermal Stability
- Creep Resistance
- Oxidation Resistance
- Stress Corrosion Cracking
- Weldability
- Carburization Resistance
- Formability
Alloy 800 Strip Welding Procedure
| SMAW – Shielded Metal-Arc Welding |
| GMAW – Gas-Metal-Arc Welding |
| GTAW – Gas Tungsten-Arc |
What is the Insert Cutting Edge Geometry for WNR 1.4876 Plate?
| Land Width | 0.10-0.20 mm / 0.004-0.008" |
| Rake Angle | 13°-18° |
| Honing Size | 0.02-0.05 mm / 0.001-0.002" |
| Land Angle | Neutral |
Get Incoloy 800 Plate Suppliers in UAE featuring Mechanical Properties
Incoloy 800 Plate Mechanical Properties
| Grade | Density | Tensile Strength | Melting Point | Elongation | Yield Strength (0.2%Offset) |
|---|---|---|---|---|---|
| WNR 1.4876 plate | 7.94 g/cm3 |
|
|
30 % |
|
ASTM B409 UNS N08800 Sheet Equivalent Material
| Standards | Country | Value |
|---|---|---|
| UNS | North America | N08800 |
| WNR | Russia | 1.4876 |
| ASTM | America | ASTM B906 |
| ASME | Australia | ASME SB 906 |
| JIS | Japan | NCF 800 |
| BS | United Kingdom | NA 15 |
| GOST | Russia | ЭИ670 |
| AFNOR | France | Z8NC32-21 |
| EN | Europe | X10NiCrAlTi32-20 |
| AMS | United States | 5871 |
| ANSI | America | – |
| SAE | United States | – |
| AS | Australia | – |
| DIN | German | – |
What is the Cutting Speed Recommendation for Ferrochronin® 800 Sheet?
| Application | Vc (SFM) | Vc (m/min) |
|---|---|---|
| Turning | 560-750 | 170-230 |
| Grooving | 490-660 | 150-200 |
| Milling | 430-570 | 130-175 |
| Parting | 340-480 | 105-145 |
| Drilling | 490-660 | 150-200 |
Incoloy 800 Plate Chemical Composition
| Grade | Cu | Ti | C | Si | Mn | S | Cr | Fe | Ni | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| Inconel 1.4876 Sheet | .75 max | .15 – .60 | .10 max | 1 max | 1.50 max | .015 max | 19 – 23 | 39.50 min | 30 – 35 | .15 – .60 |
Gauge Chart of Inconel 800 Plate
| 800 inconel plate gauge | 30 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 11 | 10 | 9 | 8 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gauge | (inches) | 0.0125 | 0.0188 | 0.025 | 0.0313 | 0.0375 | 0.05 | 0.0625 | 0.0781 | 0.1094 | 0.125 | 0.1406 | 0.1563 | 0.1719 |
| Incoloy 800 sheet | Weight (lb/ft2) | 0.756 | 1.008 | 1.26 | 1.512 | 2.016 | 2.52 | 3.15 | 4.41 | 5.04 | 5.67 | 6.93 | ||
| Gauge Decimal (inches) | 0.0125 | 0.0187 | 0.025 | 0.0312 | 0.0375 | 0.05 | 0.0625 | 0.0781 | 0.1094 | 0.125 | 0.1406 | 0.1562 | 0.1719 | |
Alloy 800 Plate Tolerances on Length
| Tolerance(milimeter) | Nominal Length (milimeter) | |
|---|---|---|
| – | + | |
| 10 | 0 | Length < 2,000 |
| 0.005 times length | 0 | 2,000 < Length < 8,000 |
| 40 | 0 | Length > 8,000 |
Incoloy 800 Strip Tolerances on Width
| 800 Inconel sheet nominal width (mm) | Tolerance (mm) | |||
|---|---|---|---|---|
| Trimmed edge | Mill edge | |||
| + | – | + | – | |
| Width < 1200 | 3 | 0 | 20 | 0 |
| 1200 < Width < 1500 | 5 | 0 | 20 | 0 |
| Width > 1500 | 5 | 0 | 20 | 0 |
What is the Modulus of Elasticity of Incoloy 800 Plate?
| Temperature °F | Shear Modulus,10(3)ksi | Tensile Modulus, 10(3)ksi | Poisson’s Ratio |
| -310 | 11.45 x 10(3) ksi | 30.55 x 10(3) ksi | 0.334 |
| 400 | 9.91 x 10(3) ksi | 26.81 x 10(3) ksi | 0.353 |
| 75 | 10.64 x 10(3) ksi | 28.50 x 10(3) ksi | 0.339 |
| 200 | 10.37 x 10(3) ksi | 27.82 x 10(3) ksi | 0.341 |
| 600 | 9.47 x 10(3) ksi | 25.71 x 10(3) ksi | 0.357 |
| US Standard Gauge | (inches) | 0.0125 | 0.0188 | 0.025 | 0.0313 | 0.0375 | 0.05 | 0.0625 | 0.0781 | 0.1094 | 0.125 | 0.1406 | 0.1563 | 0.1719 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gauge | 30 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 11 | 10 | 9 | 8 | |
| Weight | lb/ft2 | 0.756 | 1.008 | 1.26 | 1.512 | 2.016 | 2.52 | 3.15 | 4.41 | 5.04 | 5.67 | 6.93 | ||
| Gauge Decimal | inches | 0.0125 | 0.0187 | 0.025 | 0.0312 | 0.0375 | 0.05 | 0.0625 | 0.0781 | 0.1094 | 0.125 | 0.1406 | 0.1562 | 0.1719 |
| UNS 8800 plate dimension (milimeter) | 0.7 x 1219 x 3048 | 0.5 x 1000 x 2000 | 0.9 x 1219 x 3048 | 1.6 x 1200 x 3048 | 1.2 x 1219 x 3048 | 3 x 1200 x 3000 | 2.0 x 1219 x 3048 | 3.18 x VARIOUS ANN |
|---|---|---|---|---|---|---|---|---|
| Kilogram P/M2 | 6.3 | 4.5 | 8.1 | 14.4 | 10.8 | 27 | 18 | 28.6 |
Material Inspection Facility in Following Locations
| Middle East Countries | UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine |
UNS N08800 Plate Thermal and Electrical Properties
| Alloy 800 Plate Property | Imperial | Metric |
|---|---|---|
| Thermal ConductivityA , Btu•in/ft2•h•°F (W/m•°C) | 80 | 11.5 |
| Coefficient of Expansion, 10-6 in/in•°F (µm/m•°C) 70-200°F (20-100°C) |
7.9 | 14.4 |
| Specific Heat | 0.11 Btu/lb•°F | 460 J/kg•°C |
| Electrical ResistivityA , ohm•circ mil/ft (µΩ•m). | 595 | 0.989 |
| Permeability at 200 Oersted (15.9 kA/m) | 1.014 |
Get Cut-to-Size Inconel 800 Plate & Sheet 1.4876 from the Oldest Traders in Dubai as per Standards, and Check How to Identify the UNS N08800 Rolling Plate
Size Chart of Nickel Alloy 800 Plate
| Size (in milimeter) | 3.4 | 3.18 | 4.75 | 3.96 | 7.92 | 6.35 | 12.7 | 9.53 | 15.9 | 22.2 | 19.1 | 25.4 | 76.2 | 31.8 | 28.6 | 38.1 | 50.8 | 44.5 | 63.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (in inch) | 0.134 | 0.125 | 0.187 | 0.156 | 0.312 | 0.25 | 0.5 | 0.375 | 0.6 | 0.875 | 0.75 | 1 | 3 | 1.25 | 1.125 | 1.5 | 2 | 1.75 | 2.5 |
Meet the Fast-Growing Distributors of Inconel 800 Clad Plate and Shim Sheet Supply With MTC Based in GCC Country, See Hardness and HS Code
| Description | HS Code |
|---|---|
| Inconel Alloy 800 Sheet | 72192212 |
Manufacturing Process of ASTM B409 UNS N08800 Plate
- Steel Making
- Ingot Casting
- Continuous Casting
- Roughing Rolling
- Heat Treatment
- Flattening
- Crack Detection
- Pickling
- Inspection
Weekly Shipment to Below Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
What is the Impact Strength of WNR 1.4876 Sheet?
| WNR 1.4876 Sheet Impact Strength | Temperature | ||
|---|---|---|---|
| J | ft•lbf | °C | °F |
| 99 87 |
73.0 64.3 |
-253 | -423 |
| 106 94 |
78.3 69.5 |
-196 | -320 |
| 122 112 |
89.8 82.7 |
21 | 70 |
| 122 115 |
89.8 85.0 |
-79 | -110 |
Large Selection of Tested Werkstoff NR. 1.4876 Hot Rolled Plate in Stock With a Discount; Contact Us for a Free Sample and See Incoloy 800 VS 840
Incoloy 800 VS Incoloy 840 Plate
Incoloy 800 Plate
- Tensile Strength: 560-586 MPa
- Elastic Modulus: 196.5 GPa
- Yield Strength: 205-275 MPa
- Density: 7.94 g/cm
Incoloy 840 Plate
- Tensile Strength: 500-880 MPa
- Elastic Modulus: 200 GPa
- Yield Strength: 210-550 MPa
- Density: 7.92 g/cm
Temperature Range of Nickelvac® 800 Sheet
| Temperature (°C) | Condition |
|---|---|
| >870 °C | Light forging |
| 760 °C | Precipitation temperature |
| 1205 °C | Hot working |
| 1010 °C | Heavy forging |
| 1260 °C | First melting temperature |
Associate Traders and Importers available in Below Locations For Quick Deliveries
| Region | Country | City |
|---|---|---|
| Middle East | United Arab Emirates | Dubai |
| Middle East | United Arab Emirates | Abu Dhabi |
| MENA | Morocco | Casablanca |
| Africa | South Africa | Johannesburg |
| Middle East | Saudi Arabia | Dammam |
| Middle East | Saudi Arabia | Riyadh |
| Middle East | Kuwait | Kuwait City |
| MENA | Egypt | Cairo |
| Middle East | Saudi Arabia | Jeddah |
| Middle East | Qatar | Doha |
| Africa | South Africa | Cape Town |
| Africa | Nigeria | Lagos |
| Africa | Nigeria | Abuja |
Check Incoloy 800 Plate Suppliers in UAE and Explore their Applications
Incoloy 800 Plate Applications
Table of Content
