Inconel 625 Pipe Product Synopsis

Sizes Readily Available	Seamless Pipe: 1/8 to 12" NPS (OD) Welded Pipe: 6.35 to 114.3 mm (OD)
Brands in Stock	Rath Gibson, Tubacex, Haynes, Special Metals, Nippon Steel & Sumitomo Metal, Sanyo Special Steel, Alleima
Raw Material Orign	Janpanese, European, American, Korean, Russia, Indian
Material Type	Nickel-Chromimum-Molybdenum-Columbium Alloys
Nickel	58%
Saudi Arabian Standard	SASO-ASTM-A312M, SASO 7306
International Standards	VdTüV 499, ISO 6207, WERKSTOFF Nr 2.4856, DIN 17751, BS 3074NA21, ASTM B444, AMS 5581, ASTM B704, ASTM B829, ASTM B751, ASTM B705, ASTM B775,
Approval	ADNOC, KOC, ORPIC, PETRONAS, QAFCO, SABIC
Length	12 meters, 6 meters or customized.
MTC	EN 10204 3.1

Thermal and Electrical Properties Of Inconel Alloy 625 Welded Pipe
Werkstoff 2.4856 Clad Pipe Strength of Dissimilar Welds
Physical Properties Of Inconel 625LCF Exhaust Pipe
AMS 5581 Hot Finished Pipe Modulus at Elevated Temperatures
UNS N06625 Pipe Equivalent
Mechanical Properties of Inconel 625LCF pipe
Inconel 625 Grade 1 Pipe Chemical Composition
Alloy 625 Gr 1 Cold Drawn Pipe Advantages
Pressure Rating of Nickel Alloy 625 ERW Pipe
Testing Of Alloy 625 Gr 2 Bright Annealed Pipe
Weight Chart of Werkstoff NR. 2.4856 Pipe
What Difficulties Appear When Maintaining Inconel 625 Pipes?
Alloy Inconel 625 Pipe Schedule Chart
Nickel 625 Solution Annealed Pipe Tolerance Chart
Inconel 6625 Pipe Size Chart
Inconel 625 Annealed Pipe Wall Thickness
Application Of Alloy 625 Clad Pipe
DIN 2.4856 Pipe Gauge Chart

You can discover affordable suppliers of alloy 625 seamless pipe in UAE

Alloy 625 pipe specifications

Find Inconel 625 Pipe Suppliers in UAE in Various Forms For High Temperature Application

Inconel 625 Pipe Specification

Inconel 625 Seamless Pipe:0.6 to 12.7 mm (Wall Thickness)

Alloy 625 Welded Pipe:0.8 to 12.7 mm (Wall Thickness), up to 26 Meters (Length)

Nickel 625 Thick Walled Pipe: 10-600mm (OD), 2.5 – 100mm (Wall Thickness)

Chornin 625 Pipe Schedule: 5 to XXH

Method: Cold Formed, Hot Formed, Precision Rolled

End: Bevelled, Plain, Grooved, Threaded

Suitable Temperatures: Up to 2000° F

Process: ERW, Seamless, Welded

MTR:Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

Inconel 625 pipe
Finish:Annealing, Polished, Bright

Get Quote Directly from Inconel 625 Pipe Suppliers in UAE With Complete Documentation

Form: Round, Square, Rectangular, Hexagone etc.

offers cut-to-size Inconel 625 seamless pipe that satisfies international standards in the Middle East. Get the alloy 625 pipe price variation at various locations.

Inconel 625 Pipe International Standard

Get Genuine Inconel 625 Pipe Suppliers in UAE, Who Supply As Per International Standards

Inconel 625 pipe Specifications:	ASTM B751, ASTM B775, ASTM B829, ASTM B444, ASTM B704, ASTM B705, AMS 5581
UNS:	N06625
International Specifications:	VdTüV 499, ISO 6207, DIN 17751, BS 3074NA21, WERKSTOFF Nr 2.4856

Inconel 625 pipe Seamless Pipe	ASME SB 829 ASTM B829 ASTM B444 ASME SB 444 BS3074 NA21
Inconel 625 pipe Welded Pipe	ASME SB 705 ASTM B775 ASTM B705 ASME SB 775

Buy Directly from Stockists and Dealers of Special Metals Inconel 625 Pipe in Abu Dhabhi

Noble Marine Metals Co WLL, ICAD I, Musaffah, Abu Dhabhi
Al Gharbia Pipe Company LLC, Khalifa Industrial Zone (KIZAD), Abu Dhabhi
EMSTEEL Group, Abu Dhabi Industrial City
AJ STEEL – ICAD2, Abu Dhabi

Cost of Inconel 625 pipe

Compare our price and response time to other Inconel 625 pipe stockists.

Inconel 625 pipe Size	Price in USD	Price in Driham	Price in Omani Rial
Pipe Size: 73.02 mm Od x 3.2 mm Thk, Length: 1.7 meters, Inconel 625 SMLS to ASTM B 444 Gr. Uns No. 6625 Gr 2.	US $ 974.83	AED 3579.81	OMR 375.24
Pipe Size: 1/4 Xsch80 (3 – 4 mm thick) (2.2 meter long) for Inconel 625 Seamless Pipe	US $ 877.64	AED 3222.90	OMR 337.83
Pipe 1/2 Od X 0.049 Thk Inconel 625	US $ 294.47	AED 1081.36	OMR 113.35
Length: 1.38 + 1.84 meters for Inconel 625 Welded Z=1, O Pipe To Astm B705 Gr. Uns No. 6625 Gr 2.	US $ 4,842.64	AED 17783.34	OMR 1864.07

Delivery Location and Time for AMS 5581 Pipe

Export to	Price variations and estimated delivery
Norway	5 % extra \| 45 days
Kazakhstan	5 % extra \| 45 to 60 days
Bangladesh	5 % extra \| 15 days
Bhutan	5 % extra \| 7 days
Nepal	5 % extra \| 7 days
Saudi Arabia	5 % extra \| 5-7 days from Ex- stock
Vietnam	5 % extra \| 10 days
Cambodia	5 % extra \| 9 days
Thailand	5 % extra \| 7 days
Russia	5 % extra \| 20 days
Australia	5 % extra \| 21 days
Kenya	5 % extra \| 19 days
Sri lanka	5 % extra \| 6 days

Ready Stock Of Nickel 625 Pipe

Find Inconel 625 Pipe Suppliers in UAE, Who Keep Ready Stock For Immediate Dispatch

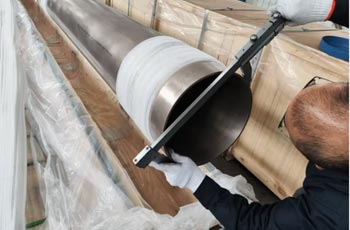

Alloy 625 Seamless Pipe

Services: Threading, Beveling, Machining, Welding
Length: Single, Double Random, Standard, Cut Length

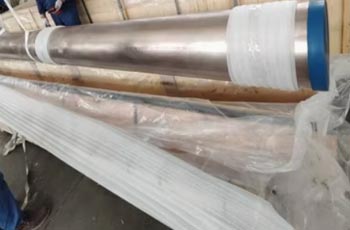

Nickel 625 Welded Pipe

Certification: DFARS compliant, Third Party Inspection Report
Features: Outstanding Fatigue Strength, High Rupture and Creep Strength

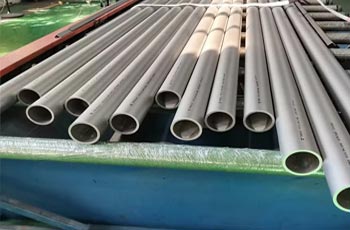

Inconel 625 ERW Pipe

Operating Temperature: 2000°F (1,093°C).
Trade Name: Nickelvac® 625, Chornin® 625, Altemp® 625

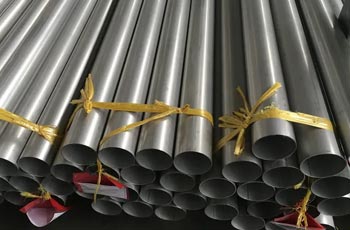

Chornin 625 Round Pipe

Equipment: Press Machine, Sand-blasting Machine, Bending Machine
SWG: 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg.20 Swg.

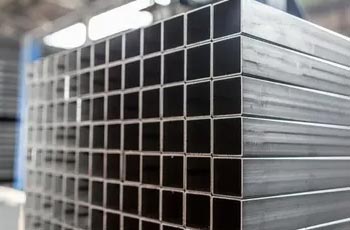

DIN 2.4856 Square Pipe

Welding: GMAW, TIG, FCAW, SMAW
CRA Lined: With Mechanical Bonding Lined or Clad With Carbon Steel Pipe

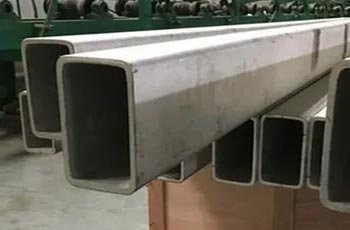

Nickel 625 Rectangular Pipe

Condition: Annealed and Solution Annealed
Grades: Gr 1 and 2

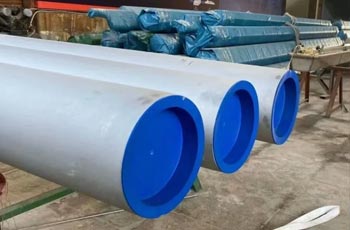

AMS 5581 Annealed Pipe

Customization: Minor, Drawing Based, Sample-based , Full
Finish: Pickled, Sandblast

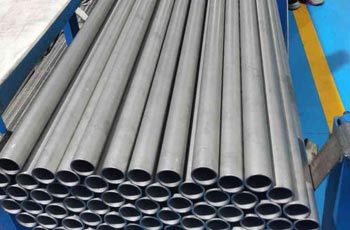

Inconel Alloy 625 Hollow Pipe

Quality: Mill Test Certificate or the Third Party Test
Schedule: SCH20, SCH30

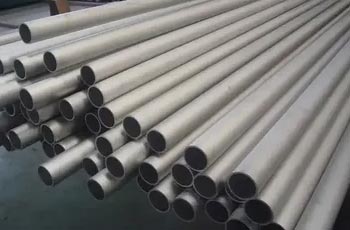

Inconel 625 Grade 1 Polished Pipe

Resistance (μΩ.m): 1.29
Surface Treatment: Hot Rolled, Cold Rolled

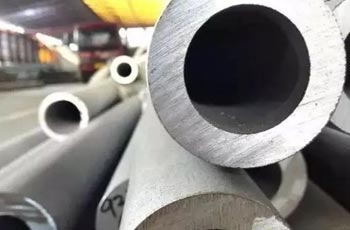

Alloy 625 Gr 2 Thick Wall Pipe

Packaging: according to customer’s request
Delivery Status: Solid Solution, Annealing, and Age Hardening

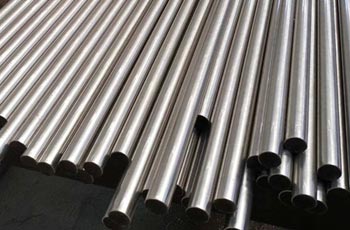

Inconel 625LCF Hot Finished Pipe

Wall tolerance: ±10%
Fillers: INCONEL Filler Metal 625, INCOLOY 82

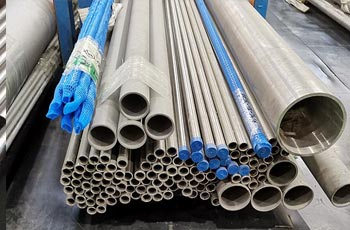

Nickel Alloy 625 Cold Finished Pipe

Welding Electrode: INCONEL 112
Saudi Arabian Standard: SASO 7507

WNR 2.4856 Exhaust Pipe

Delivery Time Singapore : 8 Days
South Africa: 25-30 Days

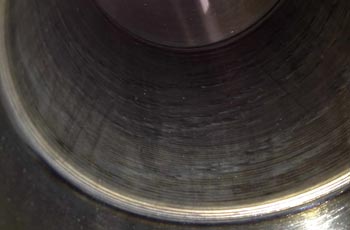

Inconel Alloy 625 Clad Pipe

Corrosion Resistance: High
100% x-ray inspection

HS code of UNS N06625 pipe

Grade	HS Code
Inconel 625 Pipe	75071200

Complete Information of 2.4856 Inconel pipe

Grade	WNR	ASTM	Other standards	Temprature	Nickel content	Strength	Lifespan
Inconel 625 pipe	WNR 2.4856	ASTM B444 ASME SB444	ASTM B751 ASTM B829 ASTM B775 ASTM B705 ASTM B704 AMS 5581	2000°F 1093°C	58%	Yield: 490 Mpa Tensile: 690 MPa	over 50 years

Most frequent types of Inconel 625 pipe

Alloy 625 square pipe

UNS N06625 round pipe

Inconel 625 seamless pipe

WNR 2.4856 welded pipe

Inconel 625 clad pipe

Nickel Alloy 625 ERW Pipe

Weekly Shipment to Below Locations

Country	Cities
Belgium	Ghent
Belgium	Brussels
Netherlands	The Hague
Netherlands	Amsterdam
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Meeuwen-Gruitrode
Netherlands	Haarlem
Belgium	Westerlo
Belgium	Leuven
Netherlands	Rotterdam
Belgium	Antwerp

Speak to numerous reliable distributors who stock UNS N06625 welded pipe made by Tubacex, Nippon Steel, Kobe Special Tube, etc., and check the annealing temperature

Inconel 625 Seamless Pipe Origin

Check List Of Inconel 625 Seamless Pipe Suppliers in UAE Here Who Supply Material Of Various Origin

Special Metals Corporation USA make Tube

Special Metals Corporation (SMC): New Hartford, New York, United States

Nippon Steel & Sumitomo Metal Corporation make Tube

Nippon Steel & Sumitomo Metal Corporation: Tokyo, Japan

Rath Gibson: Janesville, WI, USA

Alleima (Sandvik): Scranton, PA, USA

Tubacex: Ternitz, Austria

Haynes International, Inc.: Kokomo, IN, USA

BRISMET (Synalloy): Bristol, TN, USA

Sanyo Special Steel.: Himeji, JAPAN

Rivit: Caltrano, Italy

Allegheny Technologies Incorporated (ATI)- USA

Allegheny Technologies Incorporated (ATI): Dallas, Texas, USA

Chornin 625 Grade 1 vs Grade 2 Pipe

Mechanical Strength
Inconel 625 pipe Grade	Elongation (min)	Tensile strength (min)	Heat treatment (as stated)	Yield strength (min)
Grade 2	30%	690 MPa (100 ksi)	Solution annealed	276 MPa (40 ksi)
Grade 1	30%	827 MPa (120 ksi)	Annealed (≥ 871℃ / 1600℉)	414 MPa (60 ksi)

heat treatment
Inconel 625 pipe Grade	Heat treatment condition	At receiving Typical buyer focus	Typical service temperature note
Grade 2	Solution annealed	Heat treatment statement + mechanical values + any specified inspection scope	Normally employed above 1100℉ (593℃) where creep/rupture resistance is required
Grade 1	Annealed	Chemistry + mechanical results + traceability match PO line	Normally employed up to 1100℉ (593℃)

Nickel Alloy 625 Pipe Low-Temperature Impact Strength

Notch Orientation To Welding Direction	Welding Material	Charpy V-Notch Impact Strength, ft-lb (J)
Notch Orientation To Welding Direction	Welding Material	-110°F (-79°C)	-320°F (-196°C)	Room Temperature
Perpendicular	Electrode 112	42.5 (57.6)	34.8 (47.2)	46.5 (63.1)
Perpendicular	Filler Metal 625a	60.0 (81.5)	57.0 (77.3)	68.5 (92.9)
Parallel		41.5 (56.3)	32.8 (44.5)	45.0 (61.0)

Thermal and Electrical Properties Of Inconel Alloy 625 Welded Pipe

Temp. °F	Thermal Conductivityb,c Btu•in/ft2-h•°F	Meal Linear Expansiona 10-6in/in•°F	Electrical Resistivityc ohm-circ mil/ft	Temp °C	Thermal Conductivity b,c W/m•°C	Mean Linear Expansiona µm/ µm•°C	Electrical Resistivityc µΩ-cm
-200	52	–	–	-129	7.5	–	–
-250	50	–	–	-157	7.2	–	–
-100	58	–	–	-73	8.4	–	–
70	68	–	776	21	9.8	–	129
0	64	–	–	-18	9.2	–	–
100	70	–	780	38	10.1	–	130
400	87	7.3	806	204	12.5	13.1	134
200	75	7.1	794	93	10.8	12.8	132
600	98	7.4	812	316	14.1	13.3	135
1000	121	7.8	830	538	17.5	14.0	138
800	109	7.6	818	427	15.7	13.7	136
1200	132	8.2	830	649	19.0	14.8	138
1600	158	8.8	818	871	22.8	15.8	136
1400	144	8.5	824	760	20.8	15.3	137
1800	175	–	812	982	25.2	–	135
1700	–	9.0	–	927	–	16.2	–
2000	–	–	806	1093	–	–	134

Werkstoff 2.4856 Clad Pipe Strength of Dissimilar Welds

INCONEL alloy 625 Joined to	With Filler Metal 625 Gas-Tungsten-Arc		With Filler Metal 265 Gas-Metal-Arc		With Welding Electrode 112 Shielded-Metal-Arc
INCONEL alloy 625 Joined to	Fracture Location	Tensile Strength, Ksi (MPa)	Fracture Location	Tensile Strength, Ksi (MPa)	Fracture Location	Tensile Strength, Ksi (MPa)
INCONEL alloy 718	Alloy 718	107.5 (741.2)	Alloy 718	120.7 (832.2)	Alloy 718	110.25 (760.1)
Hastelloy alloy X	Alloy X	119.7 (825.3)	Alloy X	121.2 (835.6)	Alloy X	118.5 (817.0)
Type 410 Stainless Steel	Type 410	67.6 (466.1)	Type 410	65.6 (452.3)	Type 410	61.6 (424.7)
Type 304 Stainless Steel	Type 304	92.0 (634.3)	Type 304	88.5 (610.2)	Type 304	91.25 (629.1)
MO-RE® 1	MO-RE 1	97.3 (670.9)	–	–	MO-RE 1	94.7 (653.0)

Physical Properties Of Inconel 625LCF Exhaust Pipe

Inconel 625 pipe Properties	Values	200°F	70°F	400°F	800°F	600°F	1000°F
Thermal Conductivity	Btu-in/h·ft2·°F	75	68	87	109	98	139
Density	lbs/in3	–	0.305	–	–	–	–
Specific Heat	Btu/lb·°F	0.102	0.098	0.109	0.122	0.115	0.118
Elastic Modulus	103 ksi	29.6	30.1	28.7	26.9	27.8	25.7
Thermal Expansion	X10-6/°F	7.1	–	7.3	7.6	7.4	7.7
Poisson Ratio	–	0.28	0.278	0.286	0.295	0.29	–

AMS 5581 Hot Finished Pipe Modulus at Elevated Temperatures

Temp. °F	Poisson’s Ratio		Temp. °C	Modulus of Elasticity, 103 ksi				Modulus of Elasticity, GPa
	Poisson’s Ratio			Tension		Shear		Tension		Shear
	Annealed	Solution- Treated		Annealed	Solution- Treated	Annealed	Solution- Treated	Annealed	Solution- Treated	Annealed	Solution- Treated
200	0.280	0.311	93	29.6	29.1	11.6	11.1	204.1	200.6	80.0	76.5
70	0.278	0.312	21	30.1	29.7	11.8	11.3	207.5	204.8	81.4	78.0
400	0.286	0.303	204	28.7	28.1	11.1	10.8	197.9	193.7	76.5	74.5
800	0.295	0.302	427	26.9	26.2	10.4	10.0	185.5	180.6	71.7	68.9
600	0.290	0.300	316	27.8	27.2	10.8	10.4	191.7	187.5	74.5	71.7
1200	0.321	0.314	649	24.7	24.0	9.4	9.2	170.3	165.5	64.8	63.4
1400	0.340	0.305	760	23.3	22.8	8.7	8.8	160.6	157.2	60.0	60.7
1000	0.305	0.312	538	25.9	25.1	9.9	9.6	178.6	173.1	68.3	66.2
1000	0.305	0.312	538	25.9	25.1	9.9	9.6	178.6	173.1	68.3	66.2
1600	0.336	0.289	871	21.4	21.5	8.0	8.3	147.5	148.2	55.2	57.2

Inconel Alloy Pipe Equivalent

Standards	Country	Value
WNR	Russia	2.4856
UNS	North America	N06625
ASME	Australia	SB444
ASTM	America	B444
BS	United Kingdom	NA 21
JIS	Japan	NCF 625
AFNOR	France	NC22DNB4M
GOST	Russia	ХН75МБТЮ
AS	Australia	–
AMS	United States	5581
EN	Europe	NiCr22Mo9Nb
SAE	United States	–
ANSI	America	–
DIN	German	–

Mechanical Properties of Inconel 625LCF pipe

Grade	Tensile Strength		Yield Strength (0.2%Offset)		Elongation
Grade	(per square inch)	(megapascal)	(per square inch)	(megapascal)	%
Inconel 625 pipe	135000	930	75000	517	42.5

Inconel 625 Grade 1 Pipe Chemical Composition

Grade	Nickel	Carbon	Molybdenum	Manganese	Silicon	Iron	Carbon monoxide	Phosphorus	Sulfur	Niobium	Titanium	Aluminum	Chromium
Inconel alloy 625 pipe	58.0	0.1	8.0–10.0	0.5	0.5	5.0	1.0	0.015	0.015	3.15–4.15	0.4	0.4	20.0–23.0

Inconel 625 Pipe Properties

Alloy 625 Gr 1 Cold Drawn Pipe Advantages

Enhanced Corrosion Resistance
Resistance to High-Temperature Degradation
Reduced Energy Consumption
Sustainable Material Recycling
Reduced Use of Hazardous Materials
Minimization of Environmental Pollution
Contribution to Sustainable Industries

Pressure Rating of Nickel Alloy 625 ERW Pipe

Outside Diameter of the Inconel 625 pipe(inches)	Pipe wall Thickness (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (pounds per square inch gauge)
1/8	7900	10100	–	–	–	–	–	–
1/4	3700	4800	7000	9500	–	–	–	–
5/16	–	3700	5400	7300	–	–	–	–
3/8	–	3100	4400	6100	–	–	–	–
1/2	–	2300	3200	4400	–	–	–	–
3/4	–	–	2200	3000	4000	4600	–	–
1	–	–	–	2200	2900	3400	3900	4300

Find Sales Agents in Following Locations

MENA	Morocco, Tunisia, Algeria, Egypt, Israel, Libya, Palestine
Middle East countries	Saudi, UAE, Kuwait, Qatar, Iraq, Oman, Jordan, Iran, Syria, Lebanon, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Testing Of Alloy 625 Gr 2 Bright Annealed Pipe

To Communicate Directly With Listed Inconel 625 Pipe Stockists, Stock Holders, and Distributors for These Testing, Use Chat or Email.

Chemical Analysis – Spectro Analysis
Pitting Resistance Test
Macro & Micro Test
Flaring Test
Flattening
Mechanical Testing like Tensile of Area
PMI Testing (Positive Material Identification)
Intergranular Corrosion (IGC) Test

Weight Chart of Werkstoff NR. 2.4856 Pipe

Nominal Pipe Size	Weight	Outside Diameter			Wall Thickness		Weight
Nominal Pipe Size	kilogram-meter	inches	millimeter	Sched	inches	millimeter	pound-foot
1/2	1.268	0.840	21	40 STD	0.109	2.769	0.851
1/2	1.621	–	–	80 STD	0.147	3.734	1.088
3/4″	1.684	1.050	27	40 STD	0.113	2.870	1.131
3/4″	2.195	–	–	80 STD	0.154	3.912	1.474
1″	2.501	1.315	33	40 STD	0.133	3.378	1.679
1″	3.325	–	–	80 STD	0.179	4.547	2.172
1 1/4″	3.385	1.660	42	40 STD	0.140	3.556	2.273
1 1/4″	4.464	–	–	80 STD	0.191	4.851	2.997
1 1/2″	4.048	1.900	48	40 STD	0.145	3.683	2.718
1 1/2″	5.409	–	–	80 STD	0.200	5.080	3.361
2″	5.441	2.375	60	40 STD	0.154	3.912	3.653
2″	7.480	–	–	80 STD	0.218	5.537	5.022
2 1/2″	8.629	2.875	73	40 STD	0.203	5.516	5.793
2 1/2″	11.411	–	–	80 STD	0.276	7.010	7.661
3″	11.284	3.500	89	40 STD	0.216	5.486	7.576
3″	15.272	–	–	80 STD	0.300	7.620	10.253
4″	16.073	4.500	114	–	0.237	6.020	10.790
4″	22.318	–	–	–	0.337	8.560	14.983
6″	19.252	6.625	168	–	0.188	4.775	12.924
	20.739	–	–	–	0.203	5.516	13.923
	22.318	–	–	–	0.219	5.563	14.983
	25.354	–	–	–	0.250	6.350	17.021
	58.263	–	–	40 STD	0.280	7.112	18.974
	31.334	–	–	–	0.312	7.925	21.036
	37.285	–	–	–	0.375	9.525	25.031
	42.561	–	–	80 XHY	0.432	10.973	28.573
	48.719	–	–	–	0.500	12.700	32.708
8″	25.233	8.625	219	–	0.188	4.775	16.940
	27.198	–	–	–	0.203	5.156	18.259
	29.286	–	–	–	0.219	5.563	19.661
	33.308	–	–	20	0.250	6.350	22.361
	36.786	–	–	30	0.277	7.036	24.696
	42.352	–	–	40	0.322	8.179	28.554
	49.216	–	–	–	0.375	9.525	33.041
	53.085	–	–	60	0.406	10.312	35.638
	64.627	–	–	80 XHY	0.500	12.700	43.388
10″	31.588	10.750	273	–	0.188	4.775	21.207
	36.689	–	–	–	0.219	5.563	24.631
	41.759	–	–	20	0.250	6.350	28.035
	51.002	–	–	30	0.307	7.798	34.240
	56.946	–	–	–	0.344	8.738	38.231
	63.301	–	–	40 STD	0.365	9.271	40.483
	71.852	–	–	–	0.438	11.125	48.238
	81.530	–	–	60 XHY	0.500	12.700	54.735
	95.969	–	–	80	0.594	15.088	64.429
12″	37.570	12.750	324	–	0.188	4.775	25.222
	43.657	–	–	–	0.219	5.563	29.309
	49.713	–	–	–	0.250	6.350	33.375
	55.739	–	–	–	0.281	7.137	37.420
	61.735	–	–	–	0.312	7.925	41.445
	73.824	–	–	–	0.375	9.525	49.562
	79.727	–	–	–	0.406	10.312	53.525
	97.438	–	–	–	0.500	12.700	65.415
	108.966	–	–	–	0.562	14.275	73.154
14″	41.308	14.000	356	–	0.188	4.775	27.732
	48.012	–	–	–	0.219	5.563	32.233
	54.685	–	–	20	0.250	6.350	36.713
	61.327	–	–	–	0.281	7.137	41.172
	67.939	–	–	–	0.312	7.925	45.611
	81.281	–	–	STD	0.375	9.525	54.568
	94.498	–	–	40	0.438	11.125	63.441
	107.381	–	–	XHY	0.500	12.700	72.090
	132.983	–	–	–	0.625	15.875	89.278
16”	47.290	16.000	406	–	0.188	4.775	21.748
	54.980	–	–	–	0.219	5.563	36.910
	62.639	–	–	10	0.250	6.350	42.053
	70.268	–	–	–	0.281	7.137	47.174
	77.866	–	–	20	0.312	7.925	52.275
	85.677	–	–	–	0.344	8.738	57.519
	93.213	–	–	30 STD	0.375	9.525	62.578
	108.433	–	–	–	0.438	11.125	72.797
	123.289	–	–	40 XHY	0.500	12.700	82.770
18″	61.948	18.000	457	–	0.219	5.563	41.588
	70.593	–	–	–	0.250	6.350	47.393
	79.208	–	–	–	0.281	7.137	53.176
	87.792	–	–	20	0.312	7.925	58.939
	105.144	–	–	STD	0.375	9.525	70.588
	122.369	–	–	30	0.438	11.125	82.152
	139.198	–	–	XHY	0.500	12.700	93.450
	155.904	–	–	40	0.562	14.275	104.666
	172.754	–	–	–	0.625	15.875	115.978
20″	78.547	20.000	508	–	0.250	6.350	52.733
	88.458	–	–	–	0.282	7.163	59.386
	97.719	–	–	–	0.312	7.925	65.604
	117.075	–	–	20 STD	0.375	9.525	78.598
	136.305	–	–	–	0.438	11.125	91.508
	155.106	–	–	30 XHY	0.500	12.700	104.130
	183.378	–	–	40	0.594	15.088	123.110
	192.640	–	–	–	0.625	15.875	129.328
	211.368	–	–	–	0.688	17.475	141.901
24″	94.456	24.000	610	–	0.250	6.350	63.413
	106.029	–	–	–	0.281	7.137	71.183
	117.573	–	–	–	0.312	7.925	18.932
	140.938	–	–	20 STD	0.375	9.525	64.618
	164.176	–	–	–	0.438	11.125	110.219
	186.923	–	–	XHY	0.500	12.700	125.490
	232.410	–	–	–	0.625	15.875	156.028
	255.148	–	–	40	0.688	17.475	171.293
	277.401	–	–	–	0.750	19.050	186.233
30″	118.318	30.000	762	–	0.250	6.350	79.433
	132.851	–	–	–	0.281	7.137	89.189
	147.353	–	–	10	0.312	7.925	98.925
	176.731	–	–	STD	0.375	9.525	118.648
	205.983	–	–	–	0.438	11.125	138.286
	234.647	–	–	20 XHY	0.500	12.700	157.530
	292.066	–	–	30	0.625	15.875	196.078
	320.817	–	–	–	0.688	17.475	215.380
	348.988	–	–	–	0.750	19.050	234.293
36″	142.180	36.000	914	–	0.250	6.350	95.453
	159.672	–	–	–	0.281	7.137	107.196
	177.133	–	–	10	0.312	7.925	118.918
	215.525	–	–	STD	0.375	9.525	142.678
	247.790	–	–	–	0.438	11.125	166.353
	282.372	–	–	20 XHY	0.500	12.700	198.570
	351.723	–	–	–	0.625	15.875	236.128
	386.487	–	–	–	.688	17.475	259.467
	420.576	–	–	–	0.750	19.050	282.353
42″	206.914	42.000	1067	–	0.312	7.925	138.911
	248.319	–	–	STD	0.375	9.525	166.708
	33.097	–	–	XHY	0.500	12.700	221.610
	492.163	–	–	–	0.750	19.050	330.413
48″	284.112	48.000	1219	STD	0.375	9.525	190.738
	331.404	–	–	–	0.438	11.125	222.487
	377.822	–	–	XHY	0.500	12.700	253.650
	563.750	–	–	–	0.750	19.050	378.473
	655.969	–	–	–	0.875	22.225	440.383

Are you looking for a source of Schedule 80, 40, 20, XXS, or 60 WNR 2.4856 seam welded pipe? you’ve arrived at the appropriate site, Learn about the hardness

What Difficulties Appear When Maintaining Inconel 625 Pipes?

Alloy Inconel 625 Pipe Schedule Chart

IPS 1-1/4″ OD 1.660″	SCH 10, 40, 80, 160, XXH	IPS 12″ OD 12.750″	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
IPS 1-1/2″ OD 1.900″	SCH 10, 40, 80, 160, XXH	IPS 14″ OD 14.000″	SCH10 (.188), SCH40 (.375)
IPS 1/2″ OD .840″	SCH 5, 10, 40, 80, 160, XXH	IPS 6″ OD 6.625″	SCH 5, 10, 40, 80, 120, 160, XXH
IPS 3/4″ OD 1.050″	SCH 10, 40, 80, 160, XXH	IPS 8 ” OD 8.625″	SCH 5, 10, 40, 80, 120, 160, XXH
IPS 1/8″ OD .405″	SCH 40, 80	IPS 3 1/2″ OD 4.000″	SCH 10, 40, 80, 160, XXH
IPS 1/4″ OD .540″	SCH 10, 40, 80	IPS 4″ OD 4.500″	SCH 10, 40, 80, 160, XXH
IPS 3/8″ OD .675″	SCH 10, 40, 80	IPS 5″ OD 5.563″	SCH 10, 40, 80, 160, XXH
IPS 1″ OD 1.315	SCH 5, 10, 40, 80, 160, XXH	IPS 10″ OD 10.750″	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
IPS 2″ OD 2.375″	SCH 10, 40, 80, 160, XXH	IPS 16″ OD 16.000″	SCH10(.188), SCH40(.375)
IPS 2 1/2″ OD 2.875″	SCH 10, 40, 80, 160, XXH	IPS 18″ OD 18.000″	SCH-40 (.375)
IPS 3″ OD 3.500″	SCH 5, 10, 40, 80, 160, XXH

Nickel 625 Solution Annealed Pipe Tolerance Chart

WALL THICKNESS INCHES	OD +/- INCHES	OD INCHES
0.0025 – 0.0065	0.0008	1 – 1-1/2" incl0.0
Over 0.0065 – 0.0134	0.0010	1 – 1-1/2" incl0.0
0.0025 – 0.0065	0.0005	1/2" – 1" incl0.0
Over 0.0065 – 0.0134	0.0010	1/2" – 1" incl0.0
0.0032 – 0.0065	0.0012	2" – 2-1/2" incl0.0
Over 0.0065 – 0.0109	0.0013
Over 0.0109 – 0.0165	0.0014
0.0025 – 0.0049	0.0010	1-1/2" – 2" incl0.0
Over 0.0049 – 0.0083	0.0011
Over 0.0083 – 0.0148	0.0012
0.0032 – 0.0165	0.0014	2-1/2" – 3-1/2" incl0.0
Over 0.0165 – 0.0220	0.0020	2-1/2" – 3-1/2" incl0.0
0.0083 – 0.0165	0.0020	3-1/2" – 5" incl0.0

Find an authorized importer of Nickel Alloy 625 annealed pipe in all common and standard sizes, and look up standards.

Inconel 6625 Pipe Size Chart

Contact one of the approved Inconel 625 pipe suppliers in the UAE mentioned below for custom sizes.

Inconel 625 pipe OD (millimeter)	kilogram-meter	Pipe WT(millimeter)	Sch	inches
26.67	2.23	3.91	80S	3/4
33.40	2.13	2.77	10S	1
114.30	16.32	6.02	40S	4
33.40	4.30	6.352	160	1
42.16	2.73	2.77	10S	1¼
114.30	8.50	3.05	10S	4
42.16	4.53	4.85	80S	1¼
219.08	43.20	8.18	40S	8
88.90	15.51	7.62	80S	3
42.16	5.69	6.352	160	1¼
48.26	5.49	5.08	80S	1½
60.33	3.99	2.77	10S	2
48.26	4.11	3.68	40S	1½
60.33	11.29	8.742	160	2
73.03	11.59	7.01	80S	2½
88.90	6.56	3.05	10S	3
13.72	0.81	3.02	80S	1/4
17.15	0.86	2.31	40S	3/8
88.90	11.47	5.49	40S	3
219.08	65.63	12.7	80S	8
168.28	28.69	7.11	40S	6
60.33	5.52	3.91	40S	2
48.26	3.16	2.77	10S	1½
88.90	21.67	11.132	160	3
101.60	7.53	3.05	10S	3½
42.16	3.44	3.56	40S	1¼
168.28	54.75	14.27	120	6
114.30	22.67	8.56	80S	4
33.40	3.29	4.55	80S	1
168.28	68.59	18.262	160	6
60.33	7.60	5.54	80S	2
21.34	1.02	2.11	10S	1/2
219.08	91.30	18.23	120	8
141.30	22.10	6.55	40S	5
17.15	0.64	1.65	10S	3/8
101.60	13.78	5.74	40S	3½
26.67	1.30	2.11	10S	3/4
26.67	1.71	2.87	40S	3/4
101.60	18.92	8.08	80S	3½
73.03	8.77	5.16	40S	2½
13.72	0.64	2.24	40S	1/4
168.28	14.04	3.4	10S	6
114.30	34.05	13.492	160	4
13.72	0.50	1.65	10S	1/4
17.15	1.12	3.20	80S	3/8
21.34	1.29	2.77	40S	1/2
141.30	49.87	15.882	160	5
21.34	1.65	3.73	80S	1/2
168.28	43.21	10.97	80S	6
33.40	2.54	3.38	40S	1
141.30	31.44	9.53	80S	5
73.03	5.35	3.05	10S	2½
219.08	112.97	23.012	160	8

Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries.

Riyadh	Dubai	Muscat	Ras Al Khaimah
Fujairah	Umm Al Quwain	Sharjah	Doha
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

Inconel 625 Annealed Pipe Wall Thickness

Inconel 625 pipe suppliers offer sizes as per ASME B36.10 / ASME B36.19

NOMINAL	O.D. INCHES	10	10S	40	40S & STD	80	80S & E.H.	160
1 1/4	1.660	.109	.109	.140	.140	.191	.191	.250
1	1.315	.109	.109	.133	.133	.179	.179	.250
1 1/2	1.900	.109	.109	.145	.145	.200	.200	.281
2 1/2	2.875	.120	.120	.203	.203	.276	.276	.375
2	2.375	.109	.109	.154	.154	.218	.218	.343
1/4	.540	.065	.065	.088	.088	.119	.119
1/8	.405	.049	.049	.068	.068	.095	.095
1/2	.840	.083	.083	.109	.109	.147	.147	.187
3/8	.675	.065	.065	.091	.091	.126	.126
3/4	1.050	.083	.083	.113	.113	.154	.154	.218
3 1/2	4.000	.120	.120	.226	.226	.318	.318
3	3.500	.120	.120	.216	.216	.300	.300	.437
4	4.500	.120	.120	.237	.237	.337	.337	.531
5	5.563	.134	.134	.258	.258	.375	.375	.625
6	6.625	.134	.134	.280	.280	.432	.432	.718
4 1/2	5.000				.247		.355
7	7.625				.301		.500
9	9.625				.342		.500
8	8.625	.148	.148	.322	.322	.500	.500	.906
10	10.750	.165	.165	.365	.365	.593	.500	1.125
12	12.750	.180	.180	.406	.375	.687	.500	1.312
11	11.750				.375		.500
16	16.000	.250	.188	.500	.375	.843	.500	1.593
14	14.000	.250	.188	.437	.375	.750	.500	1.406
18	18.000	.250	.188	.562	.375	.937	.500	1.781

Application Of Alloy 625 Clad Pipe

Ammunition Components, Armoring, Jet Engine Components, Missile Parts,
Exhaust Systems, Turbochargers, Catalytic Converters
Lambda Sensors, Airbag Components
Semiconductor Processing Equipment
Electronic Packaging, Heat Sinks
Surgical Instruments
Medical Devices, Implants

DIN 2.4856 Pipe Gauge Chart

Gauge No.	B.W.G		U.S.G
	inch	mm	inch	mm
6	0.203	5.156	0.2031	5.16
7	0.180	4.572	0.1875	4.76
8	0.165	4.191	0.1719	4.37
9	0.148	3.759	0.1563	3.97
10	0.134	3.404	0.1406	3.57
11	0.120	3.048	0.1250	3.18
12	0.109	2.769	0.1094	2.78
13	0.095	2.413	0.0938	2.38
14	0.083	2.108	0.0781	1.98
15	0.072	1.829	0.0703	1.79
16	0.065	1.651	0.0625	1.59
17	0.058	1.473	0.0563	1.43
18	0.049	1.245	0.0500	1.27
19	0.042	1.067	0.0438	1.11
20	0.035	0.889	0.0375	0.953
21	0.032	0.813	0.0344	0.873
22	0.028	0.711	0.0313	0.794
23	0.025	0.635	0.0218	0.714
24	0.022	0.559	0.0250	0.635
25	0.020	0.508	0.0219	0.556
26	0.018	0.457	0.0188	0.478
27	0.016	0.406	0.0172	0.437
28	0.014	0.356	0.0156	0.396
29	0.013	0.330	0.0141	0.358
30	0.012	0.305	0.0125	0.318
31	0.010	0.254	0.0109	0.277
32	0.009	0.229	0.0102	0.259
33	0.008	0.203	0.0094	0.239
34	0.007	0.178	0.0086	0.218
35	0.005	0.127	0.0078	0.198

Find Inconel 625 Pipe Resellers and Stockist Near You

The Previously Mentioned Top Ten Reliable Suppliers of Inconel 625 Pipe Have Provided Inconel 625 NACE Pipe to South Africa, the Middle East, Egypt, the Us, Oman, and Saudi Arabia.

Region	City	Country
Middle East	Kuwait City	Kuwait
Middle East	Jeddah	Saudi Arabia
Middle East	Dammam	Saudi sArabia
Africa	Lagos	Nigeria
Middle East	Doha	Qatar
MENA	Casablanca	Morocco
Middle East	Abu Dhabi	United Arab Emirates
Africa	Johannesburg	South Africa
MENA	Cairo	Egypt
Middle East	Riyadh	Saudi Arabia
Africa	Cape Town	South Africa
Middle East	Dubai	United Arab Emirates
Africa	Abuja	Nigeria
